DISCONTINUED - SEE HERE FOR ALTERNATIVES

Click thumbnail image above to enlarge

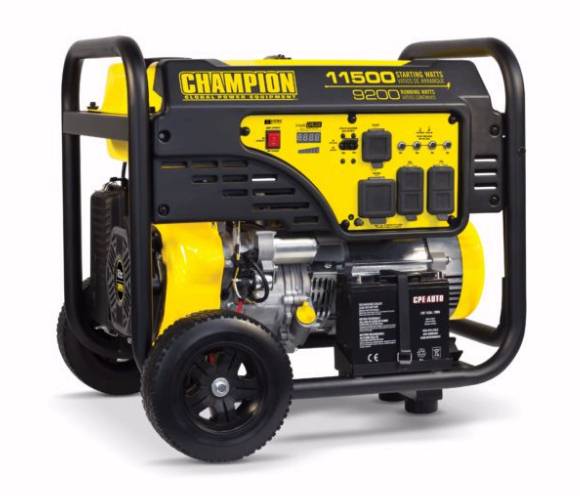

Portable Generator
with electric starting
9,200/11,500W, 120/240Vac

Champion OHV Engine



Our rugged and reliable 9200-watt generator with included engine oil features Intelligauge to monitor output and Volt Guard™ to prevent overloads. The 459cc Champion engine with electric start and included battery has all the power you need for home backup during an outage or your next project.

DESCRIPTION

The Champion Power Equipment 100110 9200-Watt Portable Generator is designed with your safety and convenience in mind. A cost-effective solution that delivers power and peace of mind, this generator will provide all the backup power you need for power outages and emergencies. For projects, the 459cc Champion single-cylinder OHV engine has what it takes to handle the multiple power tools and large equipment you need to get the job done.

Champion’s got convenience covered. You’ll appreciate the handy electric start with included battery, plus Cold Start Technology ensures a quick start in cold weather. The Intelligauge with Power Meter monitors voltage, frequency and operating hours, while the foldaway U-shaped handle and never flat tires make it a cinch to move your power where you need it.

At 11,500 starting watts and 9200 running watts, this unit can handle it all in an outage – lights, refrigerator, modem/router, security system, window AC, furnace blower, TV, computer, phone charger and more. Not only that, but the Volt Guard™ built-in surge protector prevents overloads and keeps your equipment safe from spikes in voltage.

All the outlets have covers for protection and include a 120/240V 30A locking outlet (L14-30R), a 120/240V 50A outlet (14-50R) and four covered 120V 20A GFCI protected household outlets (5-20R).

Fill up the 7.7-gallon tank of gasoline, and enjoy up to 10 hours of power at 50% load. From 23 feet, the noise level is 74 dBA, a bit louder than a vacuum cleaner.

This unit has a low oil shut-off sensor and includes 1.2 quarts of 10W-30 engine oil so all you’ll need to buy is gasoline.

This generator is EPA certified and CARB compliant. Buy with confidence - Champion Support and our nationwide network of service centers will back your purchase up with a 3-year limited warranty and FREE lifetime technical support
.

FEATURES

Ultra-Powerful
At 11,500 starting watts and 9200 running watts, enjoy up to 10 hours of run time on a full tank of gasoline with a noise level of 74 dBA from 23 feet

Electric Start
Trust the reliable 459cc Champion engine with its battery-included electric start featuring a reliable toggle switch, plus built-in Cold Start Technology for easy starts in cold weather

Covered Outlets
One 120/240V 30A locking outlet, a 120/240V 50A outlet (14-50R) and four 120V 20A GFCI outlets, plus Volt Guard™ built-in surge protector prevents overloads and keeps your equipment safe

Intelligauge with Power Meter
Keep track of voltage, hertz and run-time hours to easily monitor power output and track maintenance intervals

Champion Support
includes 3-year limited warranty with FREE lifetime technical support from dedicated experts



Specifications

Electrical Power Output 11500 Watts Starting, 9200 Watts Run
Output Voltage 120/240Vac single phase 60Hz
Output Receptacles (4) 120V 20A GFCI duplex NEMA 5-20R
(1) 120/240V 30A locking NEMA L1430R
(1) 120/240V 50A NEMA 1450R
Gasoline Run-Time at 1/2 load 10.0 hours
Sound Level at 23' and 1/2 load 74 dbA
Parallel Capability No
AVR Voltage Regulation Yes
Starting Battery Included Yes
Starting rope recoil, electric
Engine Champion 459cc 4-stroke OHV
Fuel Tank 7.7 gallon steel
Automatic Low Oil Shutdown Protection Yes
Wheels Yes
U.S. EPA Certified Yes
California CARB Compliant Yes
Dimensions (L x W x H inches) 27.7 x 27.6 x 26.6
Weight (lbs) 213
Manufacturer's warranty 3 years

Note that due to Federal shipping regulations covering hazardous items portable generators cannot be returned after they are fueled.  If warranty service is required they must be taken to a nearby authorized service center.  See our Terms & Conditions for further information.
