Page last updated Sep 6, 2019 @ 09:28pm

100263

Click thumbnail image above to enlarge

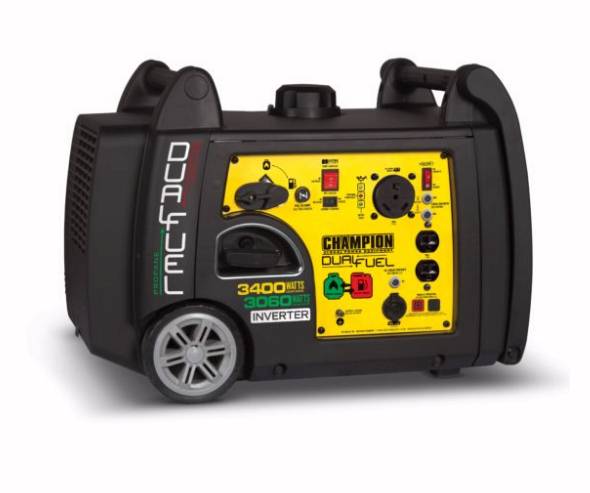

Portable Inverter Generator
Dual Fuel with electric start
3,100/3,400W on gasoline, 120Vac

Champion OHV Engine



Our 3400-watt inverter with electric start features Dual Fuel, allowing the 192cc engine to run on either gasoline or propane. Enjoy a quiet 59 dBA for up to 7.5 hours on gasoline or 14.5 hours on propane, and increase your power with the optional Parallel Kit which includes a 50-amp RV Ready outlet.

DESCRIPTION

The Champion Power Equipment 100263 3400-Watt Portable Inverter Generator is the perfect combination of versatility and convenience whether you need power for your home, RV or project.

The convenient electric start includes a battery, plus Cold Start Technology ensures a quick start in cold weather.

Connect your sensitive electronics with confidence since this inverter produces only Clean Power (˂ 3% THD). Designed for safety with a low oil shut-off sensor, this inverter has a 0.6-quart oil capacity (recommended 10W-30).

Operate your Dual-Fuel generator right out of the box on gasoline or propane, and easily switch fuels with a quick turn of the fuel selector dial. Using gasoline, the 192cc Champion engine produces 3400 starting watts and 3100 running watts, and will run for 7.5 hours at 25% load. It produces 3060 starting watts and 2790 running watts, and will run for 14.5 hours at 25% load when using a 20-pound propane tank.

Champion’s Inverter Technology includes smart Economy Mode, which can reduce the electrical load, providing quieter operation, extended engine life and better fuel economy. Included are a 120V 30A RV (TT-30R), two 120V 20A household outlets (5-20R), a 12V DC automotive-style outlet with dual USB adapter, plus a propane hose with a built-in regulator.

Operates at 59 dBA from 23 feet – about the same noise level as normal conversation.

The optional Parallel Kit provides a quick clip-on connection which allows you to increase output by connecting up to two 2800-watt or higher inverters. Also included is a standard 50-amp RV outlet with power to start and run two 15,000 BTU RV air conditioners.

Fully assembled with foldaway handle for easy storage and built-in handles and never-flat tires for easy transport.

Buy this EPA certified and CARB compliant inverter with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

FEATURES

Dual Fuel
Operate your 3400-watt portable generator right out of the box on either gasoline or propane, plus the unit holds 0.6-quarts of oil (recommended 10W-30) and has a low oil shut-off sensor

Convenient Electric Start with 3-Position Ignition Switch
Battery included, plus Quick Touch Panel allows you to access all your controls in one spot

Ultra-Quiet Operation
59 dBA is perfect for RVs, tailgating, your next project or backup power for your home, featuring 3400 starting watts and 3100 running watts with up to 7.5 hours run time on gasoline

Clean Power for Sensitive Electronics
RV Ready with a 120V 30A RV, plus two 120V 20A household outlets with clean electricity (less than 3% THD) and 12V DC outlet with dual USB adapter

Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts



Specifications

Electrical Power Output 3400 Watts Starting, 3100 Watts Run on gasoline
3060 Watts Starting, 2790 Watts Run on propane
Output Voltage 120Vac single phase 60Hz
Output Receptacles (no GFCI) (2) 120V 20A duplex NEMA 5-20R
(1) 120V 30A RV NEMA TT-30R
(1) 12Vdc
Gasoline Run-Time at 1/4 load 7.5 hours on gasoline
14.5 hours on propane
Sound Level at 23' and 1/4 load 59 dbA
Parallel Capability Yes
AVR Voltage Regulation No
Starting Battery Included Yes
Starting rope recoil, electric
Engine Champion 192cc 4-stroke OHV
Fuel Tank 1.6 gallon steel
Automatic Low Oil Shutdown Protection Yes
Wheels Yes
U.S. EPA Certified Yes
California CARB Compliant Yes
Dimensions (L x W x H inches) 25.1 x 17.3 x 18.3
Weight (lbs) 95.7
Manufacturer's warranty 3 years

Note that due to Federal shipping regulations covering hazardous items portable generators cannot be returned after they are fueled.  If warranty service is required they must be taken to a nearby authorized service center.  See our Terms & Conditions for further information.

Generator Optional Parallel Kit

Item Number: 100263
Price: $1,148
Price last updated 8/1/2019
Shipping Weight: 132 lbs.
This item ships with free ground freight to the USA 48 states.

Item Number: 100319
Price: $95
Price last updated 8/1/2019
Shipping Weight: 5 lbs.
This item ships with free ground freight to the USA 48 states.
