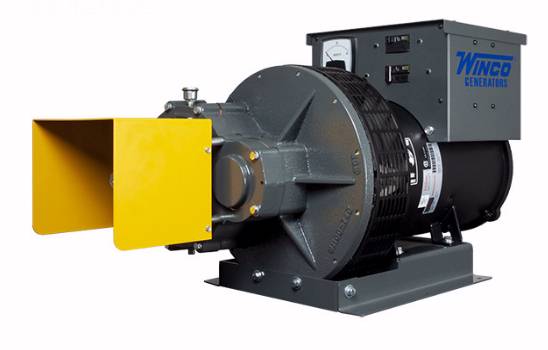

30PTOC4-3  30PTOT4-3
30PTOC4-4  30PTOT4-4
30PTOC4-17  30PTOT4-17
35PTOC4-18  35PTOT4-18

Click thumbnail image above to enlarge

Power Take-Off Generators
30KW 120/240Vac single phase
30-35kW 120/208V 120/240V 277/480V 3-phase

Winco Tractor Driven Alternators provide electrical power for a variety of farm or remote location electrical systems and equipment. Winco has been providing quality standby electrical systems for worldwide use since 1927.  Ruggedly built for truly dependable emergency standby and portable power, Winco has several models to choose from - single and three phase models with self regulation which automatically adjusts voltage to match the load.



FEATURES

* Operates at a slow 1800 RPM
* Heavy duty construction
* Three year limited warranty
* Circuit breakers
* Convenience power outlets
* Shielded PTO shaft



SPECIFICATIONS

TYPE
AC, 4-pole revolving armature, statically excited and regulated. Drip proof control box. External grounding lug.

OPERATING SPEED
Generator rotates at a slow 1800RPM for longer life.

LIMITED THREE-YEAR WARRANTY
Three year warranty covers entire alternator against defects in material and workmanship under normal use and service. After 1 year, factory repair and reconditioning service is available at cost of labor within 3 years of purchase date. Detailed warranty certificate enclosed with each alternator; sample copy available upon request.



Accessories (order separately)

* pto shaft is fully guarded for safety.

* Two-wheel transport offers heavy gauge hitch that can handle the rigors of
   generator operation.  Heavy 10 gauge deck allows room for accessories or tool box.

* 3-point Hitch Kit (cat 2)

* Manual transfer switches



Specs

Model 30PTOC4-03 30PTOC4-04 30PTOC4-17 35PTOC4-18
Voltage 120/240V
1 phase
120/208V
3 phase
120/240V
3 phase
277/480V
3 phase
Standby Rated AC Power
(150C rise in 40C ambient max)
29.6kW 31.6kW 31.6kW 36.0kW
     Current @ 1.0 pf 123A @ 240V 87A @ 208V 76A @ 240V 43A @ 480V
     Current @ 0.8 pf n/a 109A @ 208V 94A @ 240V 54A @ 480V
Continuous Rated Power
(105C rise in 40C ambient max)
25.0kW 29.6kW 29.6kW 30.6kW
     Current @ 1.0 pf 104A @ 240V 71A @ 208V 71A @ 240V 36A @ 480V
     Current @ 0.8 pf n/a 102A @ 208V 88A @ 240V 46A @ 480V
Voltage Regulation 10% 10% 10% 10%
Output Circuit Breaker 125A 100A 100A 50A
Motor Starting Capability 10hp 11hp 11hp 12hp
Minimum Tractor PTO shaft hp Required for Rated Output 59hp * 63hp * 63 hp * 72hp *
Voltage Regulation AVR 1% AVR 1% AVR 1% AVR 1%
Receptacles at 120V (qty) (2) NEMA 5-20R (2) NEMA 5-20R (2) NEMA 5-20R none
Receptacles at 240V (qty) (1) NEMA 6-50R

(1) 175A full power modular with mating plug included

(1) NEMA 6-50R

(1) 175A full power modular with mating plug included

(1) NEMA 6-50R

(1) 175A full power modular with mating plug included



(1) 175A full power modular with mating plug included

PTO Speed 540rpm
(1000rpm optional)
Manufacturer's Warranty 3 years

* A lower PTO shaft hp rating is acceptable but electrical output will be proportionally less.

   Concerning use in Canada, this product is built from CSA certified components (with the exception of the
   alternator end) but is not CSA certified as a complete assembly.  Therefore, it cannot be used on construction
   sites in Canada.  But it is normally acceptable for residential and farm use..



Customers who purchased this product also ordered:
(click underlined words to see product pages)
Shielded Universal PTO Shaft: 540rpm 1-3/8" six spline both ends 54326-001 or 1000rpm 1-3/8" six spline to 21 spline 54961-000
Two-wheel Transport with for off-highway use 97100
Transfer switch 1-phase 200A 7205A/7215 or 400A 7406/7416 (large enough to install High Capacity Inlet Kit on side)
Transfer switch 250V max 3-phase 200A 7801/7815
High Capacity Power Inlet Kit
300134.
Welding Cable

Pick option using dropdown menu before pressing button.

30PTOC4-03, 30PTOC4-04, 30PTOC4-17
for 540rpm pto input
35PTOC4-18
for 540rpm pto input


Item Number: 30PTOC4
Price: $3,166
Price last updated 2/7/2019
Shipping Weight: 452 lbs.
This item ships with free ground freight to the USA 48 states.

Item Number: 35PTOC4-18
Price: $3,463
Price last updated 2/7/2019
Shipping Weight: 472 lbs.
This item ships with free ground freight to the USA 48 states.
30PTOT4-03, 30PTOT4-04, 30PTOT4-17
for 1000rpm pto input
35PTOT4-18
for 1000rpm pto input


Item Number: 30PTOT4
Price: $3,219
Price last updated 2/7/2019
Shipping Weight: 452 lbs.
This item ships with free ground freight to the USA 48 states.

Item Number: 35PTOT4-18
Price: $3,513
Price last updated 2/7/2019
Shipping Weight: 472 lbs.
This item ships with free ground freight to the USA 48 states.
