31406CRK

REPLACED WITH PRO/TRAN® 2 SERIES MODEL 306CDK

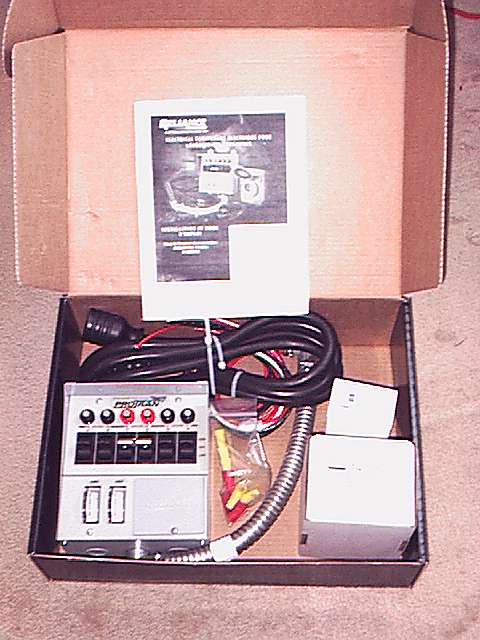

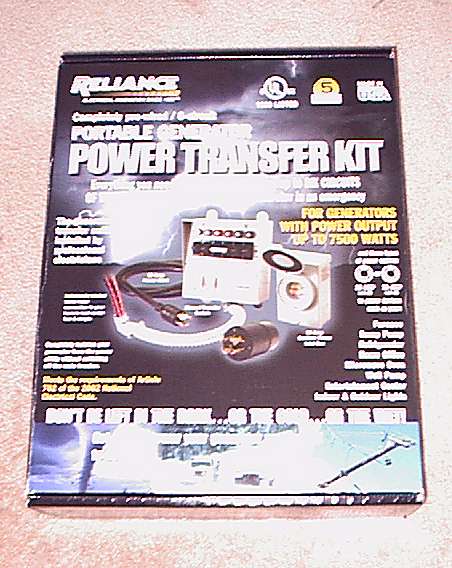

RelianceControls_31406CRK-box.jpg (53010 bytes) RelianceControls_31406CRK-open.jpg (49650 bytes) RelianceControls-31406CRK.jpg (10473 bytes)
click on thumbnail image above to enlarge

6 Circuit Manual Transfer Switch Kit
(consisting of switch, inlet box, cordset with 20A & 30A plugs, wire connectors)
Pro/Tran® by Reliance Controls

Easy to install and operate, connects portable generator to residential load center.  Allows manual transfer of individual loads to prevent overloading generator.   Each individual circuit can be transferred separately and only as needed.   Now required by Article 702.6 of the 2002 National Electric Code to prevent inadvertent backfeeding of electric power from generator into utility system which can be a safety hazard.

Click here to watch a video explaining how to install and operate this 6 circuit transfer switch and optional inlet box.



Switch Specifications

Total Capacity 7500 watts, 30 amps
Single Pole Circuits - 120VAC (4) 15 amp
Double Pole Circuits - 240VAC (1) 20 amp with handle tie
Generator Connection hard wire internal
Generator Load Watt Meters Yes
Enclosure Type indoor surface mounted
Convenience Receptacle No
UL Listing UL1008
UL Short Circuit Withstand Rating 5,000 amps



Each circuit provided with non-defeatable (break-before-make) double throw switch protected with a resettable circuit breaker.  Dual watt meters provided for balancing generator load.  The 3/4 x 18 inch flexible conduit is pre-wired for easy connection to existing residential load center panel.  Installs in less than an hour, without pulling the electric meter or installing a sub-panel.  Suitable only for circuits protected with up to 20 amp breakers or fuses.



30A Power Inlet Box

For installations where the building electrical panel is located indoors and generator is located outdoors.  Eliminates need for open window or door for generator cord.  Raintight NEMA 3R box with four combination 1/2" and 3/4" knockouts: one each side, bottom and back.  Twist lock male L1430P power inlet receptacle for cable connection to generator, 7500 watt maximum.  UL listed and CSA certified.

FEATURES
    * Compact size
    * Inlet plug is on front of box for easy cable connection

Note that this box is suitable for wet locations when the cover is closed and cable is NOT plugged in.  This is usually not a problem since portable generators should not be operated outside in bad weather anyway.



30A Generator Portable Power Cord

30 amp, 125/250 Volts, super capacity 10 Gauge 4 conductor wire, 10 feet, type SJ00W water resistant 90C insulation.  For connecting portable generator to inlet boxe.  NEMA twist lock L1430 plug and connector preinstalled on each end of cable.  Colors may vary from illustration.  UL listed and CSA certified.



Replacement 20A Male Plug

NEMA type L1420P male plug, 20 amp, 3 pole, 4 conductor.  Twist lock design with nylon housing resistant to many chemicals.   Nylon cord clamp with #10 solid brass terminal clamps and screws for superior wire holding and excellent conductivity.  Color may vary from that shown.  UL listed.  This extra plug is included to replace the 30A plug on the cordset above when your generator has the lower capacity 20A receptacle.



Twist-on Wire Connectors

Wire connectors are also included for making the connections to the transfer switch.



The Reliance Controls Pro/Tran® 31406CRK kit is UL listed and CSA certified.  And it comes with an exclusive 5 year warranty.  Made in USA





Customers who purchased this product also ordered:
(click underlined words to see product pages)
Clear protective cover for switch CK06
Flush Mounting Kit for switch
KF06
To power a 30A 240V water heater add the
CSR302 switch or go with the Q310CE switch
