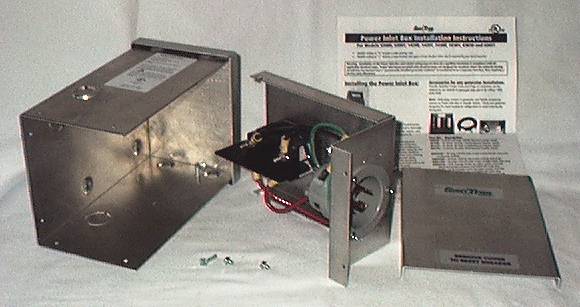

without disconnect with disconnect disassembled with disconnect literature
Click thumbnail image above to enlarge

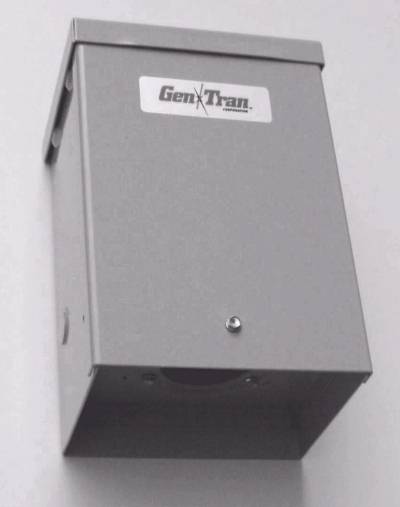

50A Power Inlet Box

For installations where the building electrical panel is located indoors and generator is located outdoors.  Eliminates need for open window or door for generator cord.  Raintight NEMA 3R box can be mounted on exterior of building and wiring may be run through wall to transfer switch or panel.  Features aluminum construction which can be painted in field.  Twist lock male power inlet receptacle for cable connection to generator, 12,500 watts maximum.  Use with female connector RJBC6364 purchased separately.  UL listed.  Made in USA

This inlet box is also available with built-in circuit breaker disconnect and dead front for use when local codes requirements regard the devices as service entrance equipment.  Some electrical inspectors consider a permanently installed generator a structure, and therefore require a rated service disconnect at the point of entry.  All models with a circuit breaker have a 10,000 amp short circuit rating to comply with NEC Article 215-3 for Overcurrent Protection for Feeders.  Use drop-down menu below to specify disconnect if required.  Small price adder will be automatically added.

Note that this box has the cable inlet underneath the bottom making it weather proof even when a cable is connected.  But for easy connection of the cable the box has to be mounted high enough to see the bottom.



Customers who purchased this product also ordered:
(click underlined words to see product pages)

Cordset for connecting generator RJB06410, RJB06425 or RJB06450

Item Number: 6365
Your Price: $65.00
Shipping Weight: 5 lbs.

Dimensions H x W x D (inches): 8-3/4 x 6 x 4-7/8
This item normally ships within 1 business day after order acceptance.

Shipping will be added based on your zone and item weight.  Click here to view our current shipping rate table.  Shipping is less when several items are combined on the same order.
