GTL

SEE SIMILAR TTV SERIES PANELS

click on thumbnail image above to enlarge

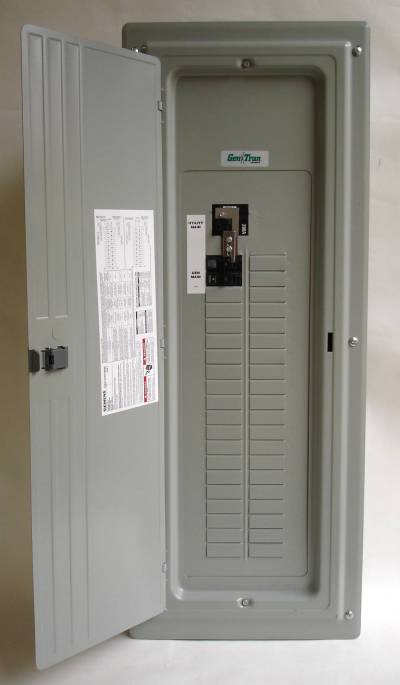

Manual Transfer Panel
200A Utility Main Breaker
30A-125A Generator Breaker

Generator-Ready Load Centers

Generator-Ready panels are a combination main breaker load center and manual transfer switch in one. This product is ideally installed at the time of construction, but is appropriate for service upgrades as well. It allows you to feed generator power during an outage to the main load center in a house or small commercial building and manually select which circuits you want to run -- up to the maximum continuous wattage of the generator. Because this product makes any standard load center "generator-ready", it eliminates the need for a separate transfer switch - saving $hundreds$ later down the road. Each unit includes a Generator and Utility breaker mechanically interlocked to prevent dangerous backfeeding, thereby avoiding property damage and serious injury to utility workers. All models must be connected to a power inlet box (sold separately) or hardwired to the generator. Indoor models can be flush or surface mounted, and outdoor models should be surface mounted. Each model accommodates up to 38 circuits. All GTL panels are service entrance rated, and are UL Listed UL 67. 24 month warranty. Patented interlock remains intact when cover is removed.



UL Listed for use with following breakers.

Provided with preinstalled 200 amp main utility breaker and generator breaker for generators up to 30,000 watts.  Use with raintight power inlet box and generator watt meters purchased separately.  UL Listed.  Made in USA



Dimensions H x W x D (inches): 39 x 14.31 x 3.94



Specs and Ordering Table

Model No. Utility Main Breaker Generator Breaker Max. Generator Input (Amps)
(Watts)
Works with:

Cordsets
Inlet Boxes
Wattmeters
Price
$ US
Add to Shopping Cart
GTL2003D 200A 30A 30A
7,500W
30A RJB10410 or RJB10425,
inlet box 14301 or 14302
meters
E140132-5 or MB75

GTL2005D 200A 50A 50A
12,500W
50A RJB06410 or RJB06425,
inlet box 63651 or 63652
meters
E140132-5 or RMK

GTL2006D 200A 60A 60A
15,000W
hi cap inlet 300134-1
meters
E140132-5 or RMK or METERPNL4

GTL2010D 200A 100A 100A
25,000W
hi cap inlet 300134-1
meter
s E140132-5 or METERPNL4

GTL2012D 200A 125A 125A
30,000W
hi cap inlet 300134-1
meter
s E140132-5 or METERPNL4

NOTES:
1.  This panel may be used as a main service entrance load center.
2.  Additional models available upon request.
