Page last updated Apr 1, 2013 @ 12:05am

E140132-40

Eleberg-e56side.jpg (19865 bytes) Eleberg-e5613face.jpg (156087 bytes) Eleberg-e56dims.gif (21800 bytes) eleberg-e5613conn.gif (11431 bytes)
side view front display dimensions  connections
Click thumbnail image above to enlarge

Powermeter PRO
digital LED panel meter
Displays Volts, Amps, Hertz
240Vac 60Hz 40A
(for use with 5kW or 10kW gensets)
click here for meter for larger gensets



Don't operate your backup or alternative electric power system blind!  Install this economical meter so you can see what is happening.  Perfect for monitoring generator parameters when your transfer switch or panel does not have meters.  The Amp scale will show if you are overloading the generator and the voltage and frequency scales can be used to verify the generator is operating properly.

COMBINED DIGITAL LED 3 BAR METER

This new line of instruments is designed as a cost effective alternative to the traditional separate analog panel meters and can replace up to four meters.  An electronic solid-state design ensures maximum durability against vibration while a microprocessor based digital sampling technology provides maximum accuracy and stability in a wide range of environments.  Can even be mounted directly on engine generator sets.

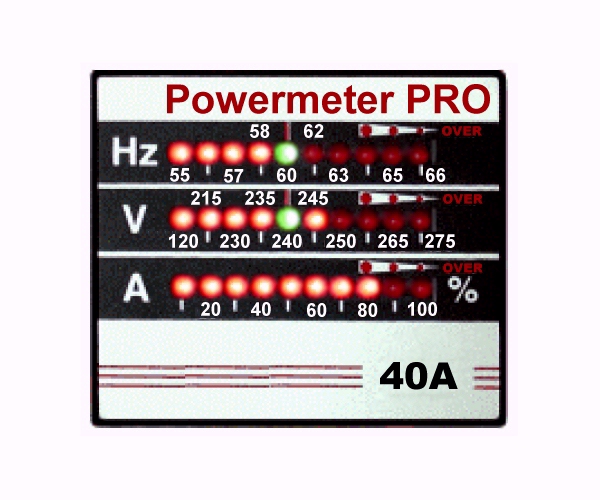

Intuitive analog-style reading. Each parameter is displayed in analog format by high-luminosity color LED bar consisting of 10 dots.  Voltage and frequency are displayed in real values. A central green reference dot adds further visibility to reading. Current is displayed in percent of full scale value to provide a quick indication of load condition.

Overload on each parameter is indicated by a "wrap around" flashing of the last three dots proportional to the overload value. A low signal on each parameter is also displayed by flashing the initial dot. The metering window is therefore effectively 4 dots wider than the 10 dots available.

Technical Specifications

Voltage rating: 240V nominal, 215-275V display plus over/under voltage
Frequency rating: 60Hz nominal, 55-66Hz display
Current rating: 40A full scale, 0-100% plus overload
Equivalent power at full scale: 9600W single pass thru sensor
4800W double pass thru sensor
Design: microprocessor technology
Accuracy: 0.5% on each dot
Response time: 4 readings/sec
Power consumption: 25mA (derived from voltage input)
Operating temperature range: -10C to +50C
Front panel dimensions: 2.76"W x 2.36"H
Depth behind panel: 2.27"
Mounting: fits in standard 3-gang 3-1/2" deep wiring box using optional precut wall plate with ample room to spare.  Wall plates available in multiple colors.
Current input: integral donut sensor, 0.40" dia window
Voltage/frequency input: 2 cage terminals, #8 awg max

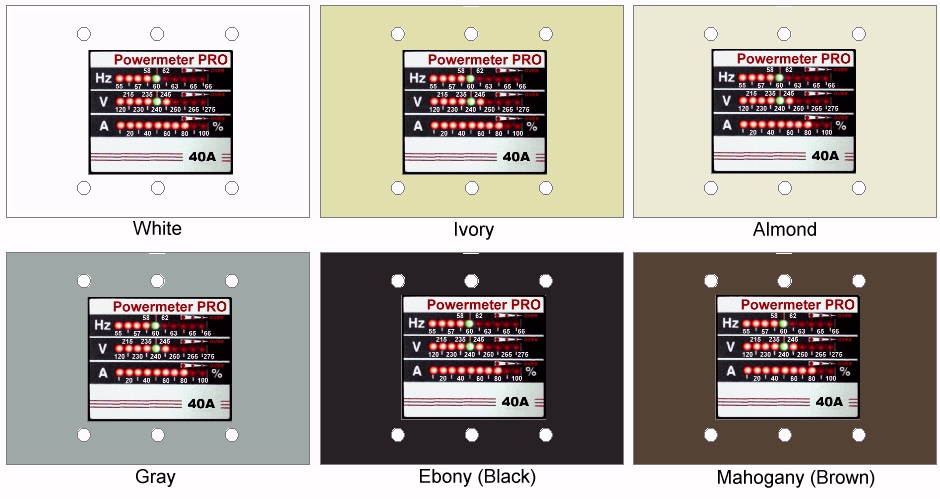

Pre-cut wall plates available in multiple colors for a neat looking and easy mounting.  Click below for detailed images.



Made in Italy.







Item Number: E140132-40
Price: $144
Price last updated 2/12/2014
Shipping Weight: 4 lbs.
This item normally ships in approximately 8 weeks or less.
