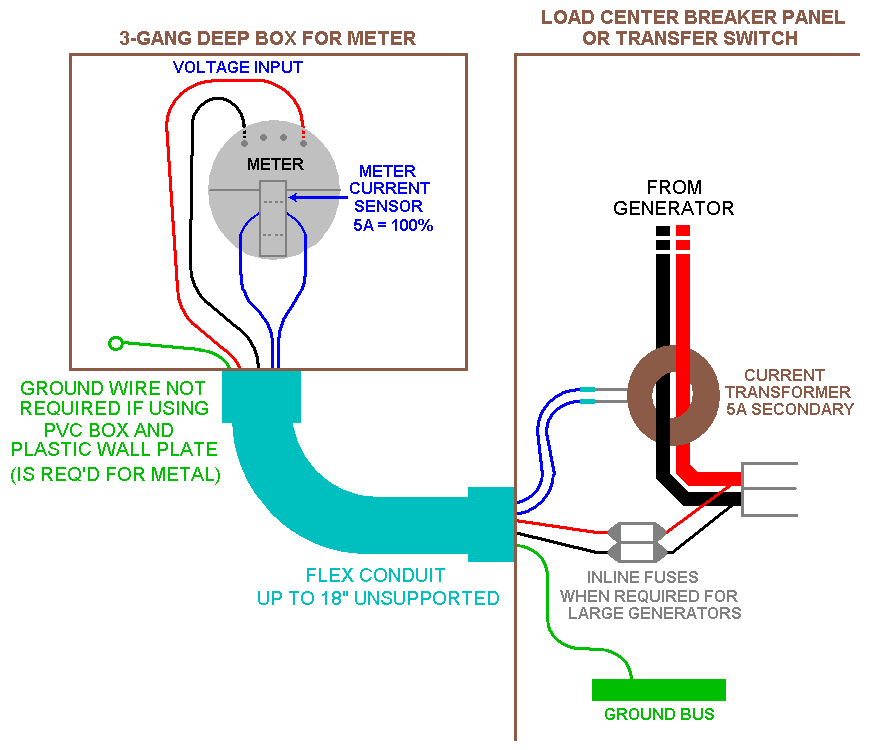

Eleberg-e56side.jpg (19865 bytes) Eleberg-e5613-5face.jpg (46320 bytes) Eleberg-e56dims.gif (21800 bytes) eleberg-e5613-5connLC.gif (19564 bytes)
side view front display dimensions  connections
Click thumbnail image above to enlarge

Powermeter PRO
digital LED panel meter
Displays Volts, Amps, Hertz
240Vac 60Hz 5A
(for use with CT and gensets 6-30kW)



Don't operate your backup or alternative electric power system blind!  Install this economical meter so you can see what is happening.  Perfect for monitoring generator parameters when your transfer switch or panel does not have meters.  The Amp scale will show if you are overloading the generator and the voltage and frequency scales can be used to verify the generator is operating properly.

COMBINED DIGITAL LED 3 BAR METER

This new line of instruments is designed as a cost effective alternative to the traditional separate analog panel meters and can replace up to four meters.  An electronic solid-state design ensures maximum durability against vibration while a microprocessor based digital sampling technology provides maximum accuracy and stability in a wide range of environments.  Can even be mounted directly on engine generator sets.

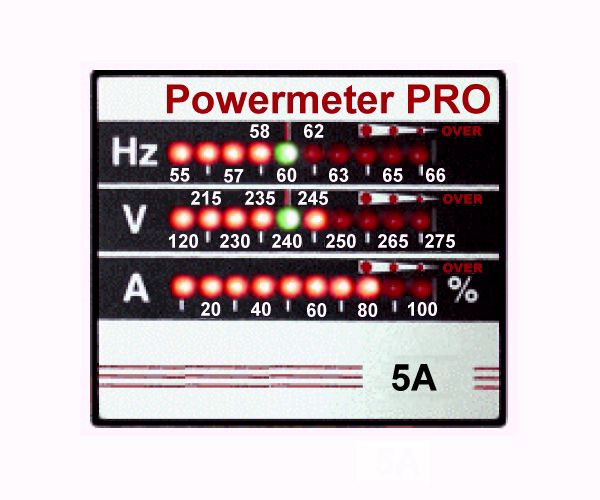

Intuitive analog-style reading. Each parameter is displayed in analog format by high-luminosity color LED bar consisting of 10 dots.  Voltage and frequency are displayed in real values. A central green reference dot adds further visibility to reading. Current is displayed in percent of full scale value to provide a quick indication of load condition.

Overload on each parameter is indicated by a "wrap around" flashing of the last three dots proportional to the overload value. A low signal on each parameter is also displayed by flashing the initial dot. The metering window is therefore effectively 4 dots wider than the 10 dots available.

Here is one user's review of this meter along with his installation pictures.

Technical Specifications

Voltage rating: 240V nominal, 215-275V display plus over/under voltage
Frequency rating: 60Hz nominal, 55-66Hz display
Current rating: 5A full scale for use with
external current transformer (CT)
0-100% plus overload
Equivalent power at full scale:

(when used with double pass thru CT)

use the generator's rated running load,
       not the surge rating

 3.0-6.6kW with 50/5 CT
 6.6-7.8kW with 60/5 CT
 7.8-9.6kW with 75/5 CT
 9.6-11.4kW with 90/5 CT
11.4-13.2kW with 100/5 CT
13.8-16.2kW with 125/5 CT
16.8-21kW with 150/5 CT
21-27kW with 200/5 CT
27-33kW with 250/5 CT
Design: microprocessor technology
Accuracy: 0.5% on each dot
Response time: 4 readings/sec
Power consumption: 25mA (derived from voltage input)
Operating temperature range: -10C to +50C

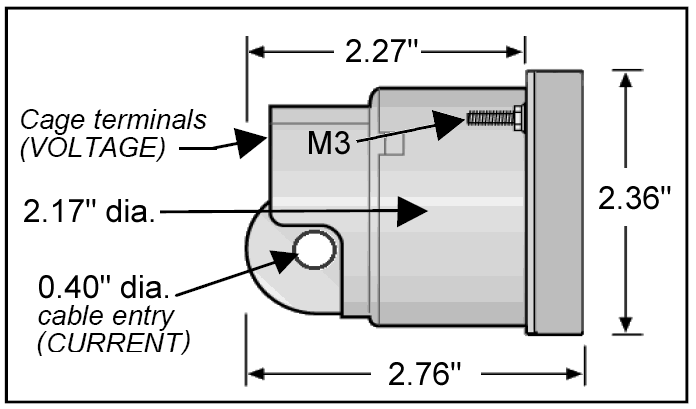

Front panel dimensions: 2.76"W x 2.36"H
Depth behind panel: 2.27"
Mounting: fits in standard 3-gang 3-1/2" deep wiring box using optional precut wall plate with ample room to spare.  Wall plates available in multiple colors.
5A Current input: integral donut sensor, 0.40" dia window
Voltage/frequency input: 2 cage terminals, #8 awg max

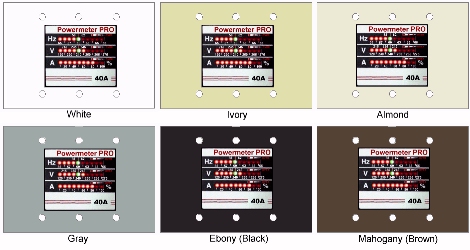

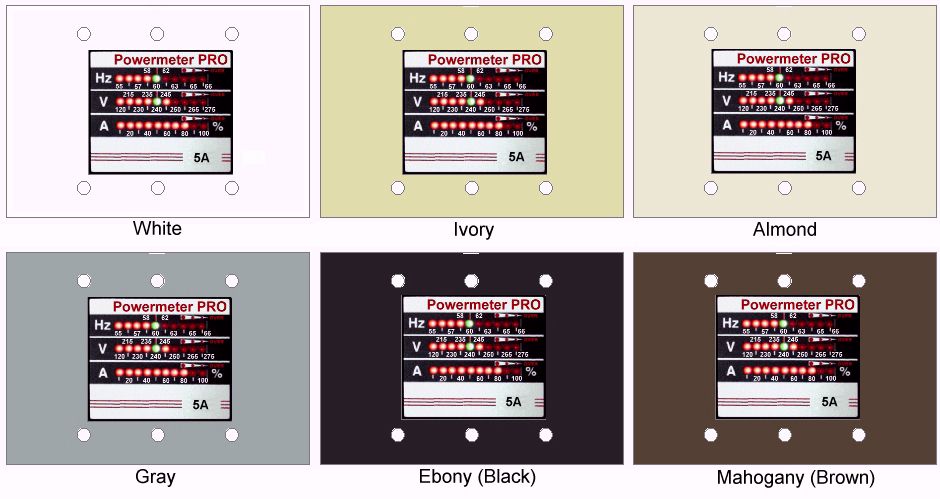

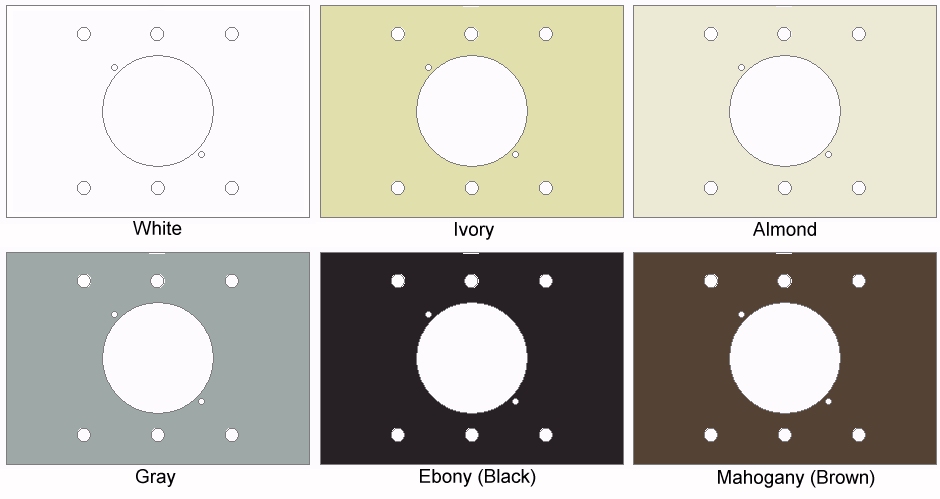

Pre-cut wall plates available in multiple colors for a neat looking and easy mounting.  Click below for detailed images.

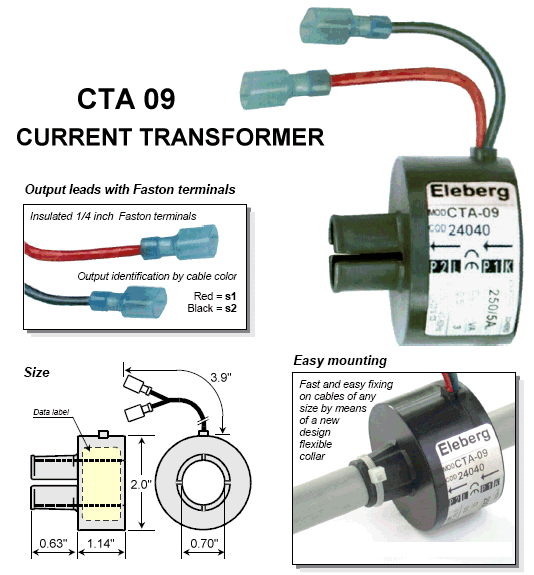

Compact current transformers also available, or use your own as long as it has a 5 amp secondary.  Click thumbnail image below for CT details.

click thumbnail for CTA details

Order two CTs of same ratio listed if the opening is not large enough for two passes of the primary cable.

Don't see the CT ratio you need?  Not a problem.  We provide instructions for adjusting the CT ratio in the field by passing the secondary wire through the opening.  We also provide instructions on how to mount the meter remotely from the CT including the required wire size to maintain an accurate meter reading.

Made in Italy.
