Page last updated Oct 20, 2021 @ 10:11pm

GL7000    GL7000TM    GL7000CSA
GL11000  GL11000TM  GL11000CSA


models for sale in USA but NOT Canada

models for sale in USA AND Canada

Click thumbnail images to enlarge

Kubota Generator Set
Mobile Enclosed Diesel
7000W, 11000kW rated
120/240Vac single phase

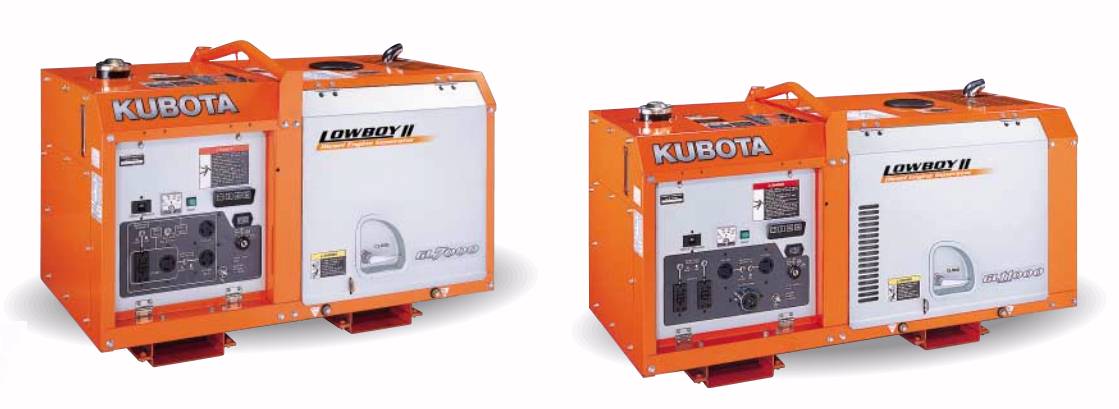

Compact Design - Low Profile and More Compact
The LOWBOY II series is designed to have the minimum possible height while using vertical diesel engines. This is achieved by direct coupling of the engine crankshaft with the cooling fan. Since they require less space for operation, the range of possible applications has been greatly increased.

Easy Maintenance - All from One-Side
Large swing-up side panel enables quick and easy engine inspection and maintenance. Engine oil and coolant drain extensions are provided to ease regularly scheduled maintenance. Oil gauge, oil filter, oil replenishment port, fuel filter, water reserve tank, battery and air cleaner are all located on one side.

Safety - Safety Measures
Automatically shuts the engine down if the water temperature is excessive or the oil pressure drops below a safe level. Equipped with a starter safety relay to prevent the starter from engaging after the engine starts up.
Terminal type is equipped with an output connection cover that will stop the engine immediately when it is opened during operation.
In addition to the overall circuit protector, each receptacle also has a circuit protector that will shut the engine down to prevent over current damage.

Operator Friendly - Transportability & Longer Operation
One-point lifting eye makes it easy to transport all GL series generators. Special forklift openings are provided in the base of the machine.  Large-capacity fuel tank (7.4gal; 28L) enables longer continuous operation on a single tank.

Quiet - Lower Noise Levels
Four separate features help reduce overall noise levels. First, the large-capacity radiator successfully reduces fan-related noise by direct coupling to the crankshaft with a slower-speed fan. Second, the large-capacity, built-in muffler helps reduce exhaust-related noise. Third, the longer air-cleaner hose reduces air-suction-related noise. Fourth, the ideally placed inlet vent and its improved design reduce noise coming from the enclosure's opening.

Options

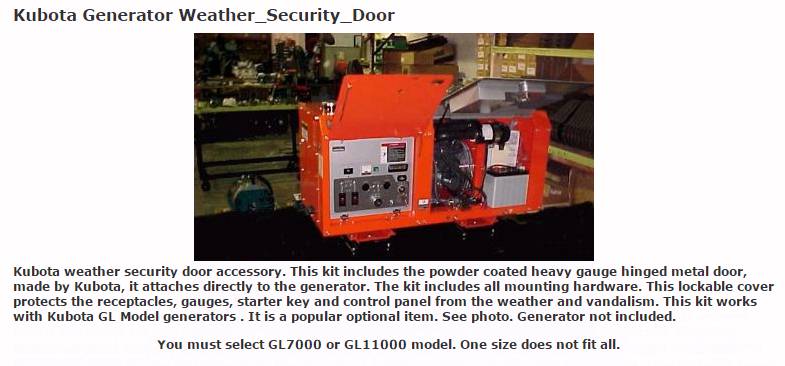

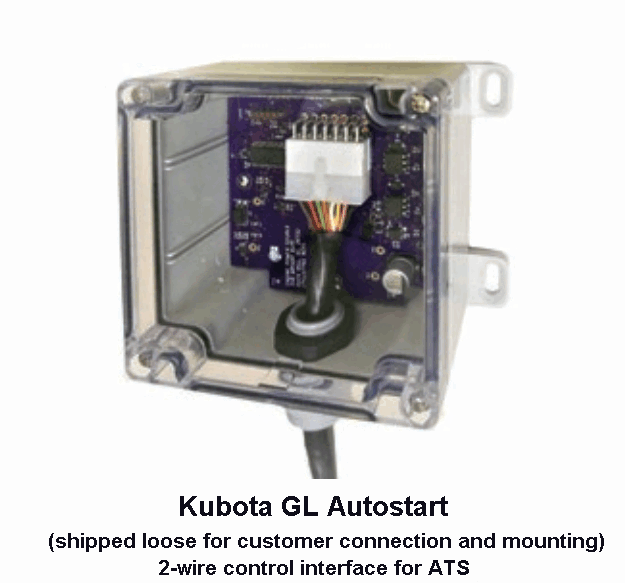

If generator will be exposed to weather order the control panel cover. For cold weather environments to improve starting reliability order the coolant heater. This is factory installed in the radiator hose and warms the coolant and the block. Two-wire automatic start capability is also available for control by an automatic transfer switch via a factory installed DynaGen controller.

Discontinued Models
The Kubota SQ Super Quiet series consisting of the SQ-14, SQ-21, SQ-26 and SQ33 is no longer available in the USA due to revised EPA emission regulations.

Specifications
NOTE: Blue CSA models must be used in Canada

Model Number GL7000
orange
GL7000TM
orange
GL7000CSA
blue
GL11000
orange
GL11000TM
orange
GL11000CSA
blue
Electrical Power Output (1.0 pf) 7.0kW standby
6.5kW prime
11.0kW standby
10.0kW prime
Voltage (single phase) 120/240Vac 120/240Vac
Current
(Amps @ 120/240V single phase)
54.2 / 27.1 83.4 / 41.7
Output Connections/Receptacles (2)5-20R GFCI
(1)L5-30R
(1)L6-30R
(1)L14-30R
(2)5-20R GFCI

terminals
(2)5-20R GFCI
(2)L5-30R
(1)L6-30R
(0)L14-30R
(4)5-20R GFCI
(1)L5-30R
(1)L6-30R
(1)CS6369
(0)14-50R
(2)5-20R GFCI

terminals
(4)5-20R GFCI
(1)L5-30R
(1)L6-30R
(0)CS6369
(1)14-50R
Engine Kubota
Z482
Kubota
D722
Power Rating at 3600 rpm
(continuous hp)
10.9 16.3
Fuel Consumption - gallons per hour
(at 25% / 50% / 100% load)
0.38/0.45/0.69 0.59/0.71/1.09
Sound Level - dbA at full load 23' 66 68
Dimensions (L x W x H) inches 42.0 x 24.3 x 27.5 50.4 x 24.3 x 27.5
Net Weight (lbs) 577 701



order 7kW GL7000 with receptacles below order 11kW GL11000 with receptacles below





Item Number: GL7000
Price: $5,760
Price last updated 12/10/2021
Shipping Weight: 618 lbs.
This item normally ships in approximately 25 weeks or less.
If not paying by credit card contact NoOutage before placing order.





Item Number: GL11000
Price: $7,351
Price last updated 12/10/2021
Shipping Weight: 750 lbs.
This item normally ships in approximately 25 weeks or less.
If not paying by credit card contact NoOutage before placing order.
order 7kW GL7000TM with terminals below order 11kW GL11000TM with terminals below





Item Number: GL7000TM
Price: $5,902
Price last updated 12/10/2021
Shipping Weight: 618 lbs.
This item normally ships in approximately 40 weeks or less.
If not paying by credit card contact NoOutage before placing order.





Item Number: GL11000TM
Price: $7,395
Price last updated 12/10/2021
Shipping Weight: 750 lbs.
This item normally ships in approximately 40 weeks or less.
If not paying by credit card contact NoOutage before placing order.
order 7kW GL7000CSA with receptacles below order 11kW GL11000CSA with receptacles below





Item Number: GL7000CSA
Price: $5,454
Price last updated 4/23/2019
Shipping Weight: 618 lbs.
This item normally ships in approximately 40 weeks or less.
If not paying by credit card contact NoOutage before placing order.





Item Number: GL11000CSA
Price: $6,711
Price last updated 4/23/2019
Shipping Weight: 750 lbs.
This item normally ships in approximately 40 weeks or less.
If not paying by credit card contact NoOutage before placing order.

.
