GSC101

THIS ITEM DISCONTINUED AND NO LONGER AVAILABLE
THE ES52 CAN BE ADAPTED TO WORK IN ITS PLACE

HOWEVER, A GENERATOR TECHNICIAN WILL NEED TO MAKE SETTING AND WIRING
CHANGES TO GET THE ES52 FUNCTIONAL IN THE COLEMAN POWERSTATION GENERATOR

click thumbnail image above to enlarge

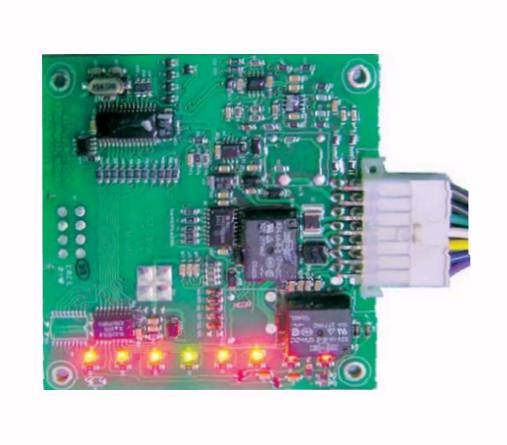

Generator AutoStart Control Board
(GSC101-L-12 replacement for GSC1 on many Coleman PowerStation generators)



Portables / Residential / Light Commercial

The GSC100 Series is a low cost, full-featured autostart for small generator installations. Factory-fixed settings prevent unauthorized field tampering. The GSC100 is conformally coated to protect against the elements. The unit is supplied as a circuit card to be mounted within a customer supplied panel with appropriate labeling.  Wire harness and plug not included..

Non-Adjustable Settings
  • Crank Disconnect (20Hz)
  • Overspeed (69Hz)
  • Crank Tries (3)
  • Crank/Rest (10s)

General Fault Conditions

  • Low Oil
  • High Engine Temperature
  • Overcrank
  • Overspeed
  • Underspeed (53Hz)
  • Low Battery Voltage (11V)

Not In Auto
NOT-IN-AUTO LED will illuminate when the external AUTO/OFF/TEST switch is not in AUTO.

Failure Inputs
Close to +BAT or to Ground.

Speed Signal
Accepts up to 300VAC, 60Hz from Direct Generator Output.

Time Delay Engine Start (TDES)
Provides a delay (10s) before the engine is started.

Optional Cool-Down Period
Wire jumper (2 mins).

Connectors

  • Main control mating plug: Dual Row Plug 2x7 Molex 39-01-2140
  • Annunciator mating plug: Dual Row Plug 2x5 Molex 39-01-2100
SPECIFICATIONS

Operating Voltage

  • 5 to 16VDC continuous
  • Standby Current Draw: 8mA at 12VDC
  • Reverse battery protected
  • Surge withstand: 1500V for 250μS

Operating Temperature

  • Controller Function: -40 to +85C

Physical

  • Dimensions: 4.0”H x 4.0”W x 0.47”D
  • Weight: 0.15 lb

Speed Sensing

  • Generator Output: Up to 300VAC  (no external transformer required)

Failure Inputs

  • Low oil pressure switch failure* (closed on failure)
  • High engine temp failure* (closed on failure)

*Failure inputs can close to either +battery or ground. All failure inputs are ignored for a period of 15 seconds at engine startup.

.
