GSC300
DISCONTINUED AND NO LONGER AVAILABLE
RECOMMENDED REPLACEMENT TG350

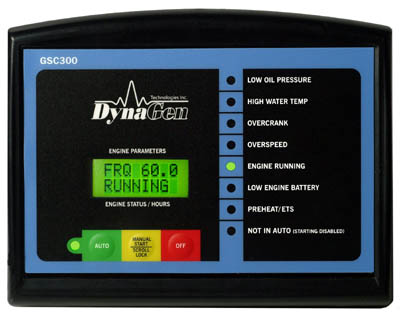

click thumbnail image above to enlarge

Generator AutoStart Control
with digital LCD display

(similar to the ES52 model except for digital LCD display and some other features)



GSC300 Series AutoStart Engine Controllers with LCD Display

A true engineering breakthrough that eliminates the expense of 6 external gauges. Delivers critical engine readings through a sharply backlit digital display augmented by 8 high-intensity lights for failure and status conditions. Built-in sockets for (3)40A relays eliminate the need for expensive slave relays. Built-in Auto/Manual/Off Switch. Delivers big savings keeping you cost competitive on every job!

Displays:
    * Oil Pressure
    * Engine Temp
    * Fuel Level
    * Hour Meter
    * Frequency
    * Battery Voltage

Integrates Replaceable 40A Relays & Fuses
The GSC300 is the only engine controller socketed to accept 3 industry standard 40 Amp cube relays - each protected by an easily replaceable automotive fuse. The GSC300 saves you time and money by completely eliminating the need to mount, wire, and fuse external slave relays for Fuel, Crank, and Preheat. Another industry first from DynaGen!

Computer or Manually Programmable
The GSC300 can be programmed manually via front panel buttons OR with our easy-to-use PC software interface that allows customization of messaging, languages, sender selections, control settings, and much more. Or, you can simply have the special-order GSC300 configured to your settings at our factory prior to shipping. The choice is yours.  Note for complete programming access to all features and settings you must use the PC parallel or USB interface cable and Windows software.

(The front panel programming capability is no longer available)

Great Low Price!
The most astonishing thing about the GSC300 is that it delivers so many features and savings in such a compact and attractive high-impact ABS plastic housing. And, its patent pending design provides you with a solution that costs less than most conventional autostart units! All this comes with DynaGen's standard 3 Year Warranty - the best in the business.

Factory Default Programmed Settings

Crank Disconnect 22Hz (36% speed) Oil Bypass on starting 15 sec
Overspeed Shutdown 69Hz (115% speed) Cooldown 6.4 sec
Crank Tries 3 Delay to Start 5 sec
Crank Time 10 sec Low Battery (12V) 10.9V
Reset Time 3 sec



Click here for similar AS52/ES52 analog controller that does not have display.  Note that the AS52/ES52 does have a magnetic pickup option for engine speed sensing.  The GSC300 does NOT have this option.  AC generator output must be used for GSC300 speed sensing.  THEREFORE THE GSC300 SHOULD ONLY BE USED FOR ENGINES POWERING AC GENERATORS.  IT GENERALLY CANNOT BE USED FOR OTHER ENGINE APPLICATIONS SUCH AS WATER PUMPS, AIR COMPRESSORS, ETC.  Use the AS52/ES52 for non-genset applications.

DISCONTINUED AND NO LONGER AVAILABLE
RECOMMENDED REPLACEMENT TG350
