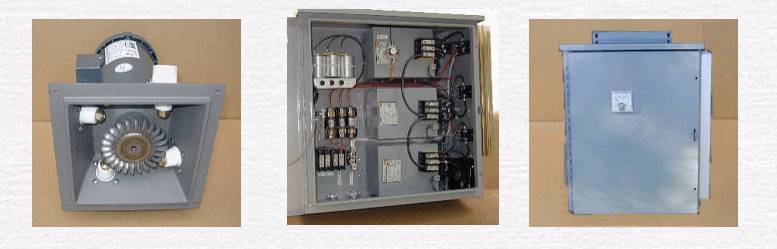

HV1200, HV2000, HV4000

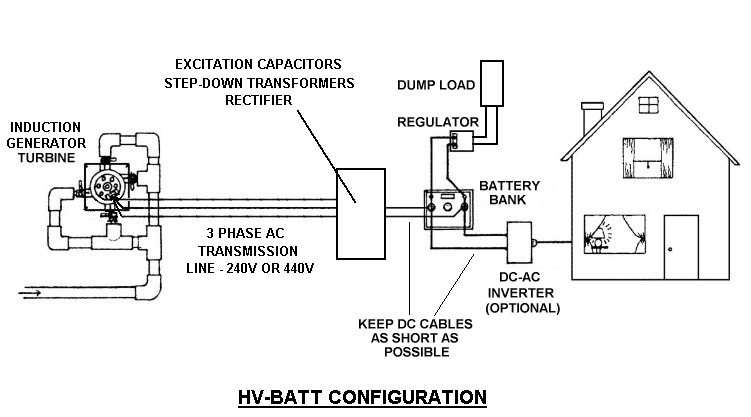

Turbine & Transformer/rectifier Box Typical electrical system configuration
click thumbnail image above to enlarge

Hydroelectric Turbine Generator
induction generator with transformer/rectifier box
high voltage long distance transmission capable
4 nozzles, 12/24/48Vdc

This is HI-Power's high-voltage system suitable for connection to a battery bank.  The induction generator has no brushes to wear out and produces high voltage 3 phase ac which is suitable for transmitting over long distances.  At the other end of the transmission line or cable an enclosure containing step-down transformers, excitation capacitors and a rectifier converts the power to low voltage dc for connection to your battery bank.  The HV series hydroelectric turbine uses a standard Hartvigsen Turgo stainless steel 4" wheel in an anodized square aluminum housing.   (Also available with Harris bronze Pelton wheel or high flow ESD stainless Turgo by request.)  Housing is 12" square and fits into a 10.25" square opening.

All hardware is stainless steel and the standard nozzles are brass in 3/4" brass holders.  For high flow sites with nozzles of 1/2" and larger we recommend the 1-1/2" plastic holder with plastic nozzles.  These nozzles are easily cut off to the desired size by using a hack saw and finishing with sand paper on a flat surface.  As a cutting guide they are marked in millimeters.  A 3/4" or 1-1/2" NPT male connection sticks through the housing for installer provided penstock and valve connections via hoses.

Factory warranty on the unit for 2 years
Made in USA



OUTPUT IN WATTS & FLOW IN GPM PER NOZZLE
EFFICIENCY IN %
versus nozzle size and head pressure

OPERATING PRESSURE
NET DYNAMIC HEAD
NOZZLE SIZE
(W & GPM shown below is for one nozzle.  Multiply by # nozzles.)
FEET PSI 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
100 43 16W
7GPM
13%
63W
12GPM
30%
156W
19GPM
47%
3225W
28GPM
46%
337W
37GPM
52%
412W
49GPM
48%
606W
77GPM
45%
876W
111GPM
45%
1184W
150GPM
45%
1547W
196GPM
45%
120 52 38W
8PM
23%
100W
13GPM
37%
222W
21GPM
50%
311W
30GPM
49%
446W
41GPM
52%
553W
54GPM
49%
797W
84GPM
45%
1146W
121GPM
45%
1389W
165GPM
40%

150 65 71W
9GPM
30%
155W
15GPM
39%
310W
24GPM
49%
442W
34GPM
49%
611W
46GPM
50%
958W
60GPM
61%
1236W
94GPM
50%

200 87 122W
10GPM
35%
274W
17GPM
46%
515W
27GPM
54%
592W
39GPM
43%
733W
53GPM
50%
1339W
69GPM
55%

FEET PSI 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"

EFFICIENCY COLOR KEY:

BEST >60% GOOD 50-59% FAIR 40-49% POOR <40%

NOTES:
1) High flow plastic nozzles are marked for cutting to diameters above and for sizes  3/4"  7/8"  1"
2) Watts listed above include transformer losses.
3) Grayed out numbers are based on estimated efficiencies and are NOT guaranteed.

Please tell us your head, flow, pipe size and length, and battery voltage when ordering using the drop-down menus below.

AC cable length and voltage drop must be evaluated carefully when laying out system.  Click here for our simple voltage drop calculator.  Generator can be ordered to provide 240Vac or 440Vac (3 phase) for the transmission line or cable.



Customers who purchased this product also ordered:
(click underlined words to see product pages)
Pressure gauge PRESSGAUGE
Spare nozzles
Diversion load DLOAD-AIR, DLOAD-WTR
Diversion load controller of proper voltage & current rating such as C-35, C-40, C-60.
Inverter for Off-grid MS-SERIES or FX-VFX, or grid-tie GTFX-GVFX operation.
Battery bank.

Select turbine options and press Add to Cart Select site parameters and press Add to Cart




Item Number: HV1200
Price: $3,499
Price last updated 5/21/2016
Shipping Weight: 200 lbs.
This item normally ships in approximately 3 weeks or less.













Item Number: HV2000
Price: $4,099
Price last updated 5/21/2016
Shipping Weight: 250 lbs.
This item normally ships in approximately 3 weeks or less.
If not paying by credit card contact NoOutage before placing order.




Item Number: HV4000
Price: $5,899
Price last updated 5/21/2016
Shipping Weight: 300 lbs.
This item normally ships in approximately 3 weeks or less.
If not paying by credit card contact NoOutage before placing order.
