Custom Junction Boxes

Weigman-RHCoutside.jpg (9011 bytes) Wiegmann-RHCdims.gif (22340 bytes) JBterminations.gif (14668 bytes) JunctionBox-insideTB.jpg (38125 bytes) JBsign.jpg (24638 bytes)

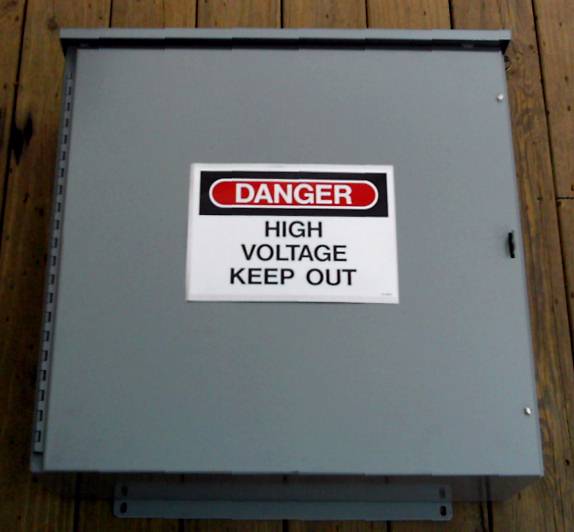

outside view dimensional details example termination configurations inside view with power terminal blocks with warning sign applied
Click thumbnail images above to enlarge

Junction Box
NEMA 3R Raintite
6" x 8" up to 24" x 36"
with power terminal blocks



Junction box for terminating and connecting larger generators.  Provides protection in outdoor installations against rain, sleet, and snow, or indoors against dripping water.

Bodies and doors fabricated from 14 gauge carbon steel.  Hinge is made from galvanized steel with a stainless steel pin.  For maximum protection against weather no knockouts are provided.  Removable inner panel mounts on collar studs.  External mounting plates, top and bottom of enclosure.  Hasp and staple for padlocking.  Grounding provisions provided.  Finished with ANSI 61 gray polyester power.  Removable inner panel finished white.

Power terminal blocks are 600V 90C rated and are approved for use with copper and aluminum conductors.  Individual poles snap together and have high impact extra strong bases.  Terminal blocks shipped loose for field mounting along with self adhesive-backed warning sign.

When selecting the size enclosure refer to the recommended cable bending clearances in the following tables.  For more details including exceptions and cases where space can be reduced refer to the National Electrical Code section 312.6.

Table 312.6(A) Minimum Wire-Bending Space
at Terminals and Minimum Width of Wiring Gutters

Wire does NOT enter or leave through opposite wall.

Wire Size
(AWG or MCM)
1 Wire per Terminal 2 Wires per Terminal 3 Wires per Terminal 4 Wires per Terminal 5 Wires per Terminal
8-6
4-3
2

1
1/0-2/0
3/0-4/0

250
300-350
400-500
1.5
2
2.5

3
3.5
4

4.5
5
6
--
--
--

--
5
6

6
8
8
--
--
--

--
7
8

8
10
10
--
--
--

--
--
--

10
12
12
--
--
--

--
--
--

--
--
14



Table 312.6(B) Minimum Wire-Bending Space at Terminals
Wire DOES enter or leave through opposite wall.

Wire Size
(AWG or MCM)
1 Wire per Terminal 2 Wires per Terminal 3 Wires per Terminal 4 or More Wires per Terminal
8
6
4

3
2
1

1/0
2/0
3/0

4/0
250
300

350
400
500
1.5
2
3

3
3.5
4.5

5.5
6
6.5

7
8.5
10

12
13
14
--
--
--

--
--
--

5.5
6
6.5

7.5
8.5
10

12
13
14
--
--
--

--
--
--

7
7.5
8

8.5
9
11

13
14
15
--
--
--

--
--
--

--
--
--

--
10
12

14
15
16

Determine required enclosure size before ordering.  We recommend printing this image and marking the A, B, W, L dimensions on the applicable diagram.  A and B dimensions can be read from the above tables.  W and L terminal block dimensions are listed in the dropdown menus below.










Item Number: JUNCTION-BOX
Price: $15
Price last updated 1/1/2014
Shipping Weight: 2 lbs.
This item normally ships in approximately 2 weeks or less.

Note that the price and weight shown immediately above will be adjusted by shopping cart after your menu selections are made.

Other box sizes and terminal block combinations are available including distribution blocks for multiple load cables.  Contact NoOutage.com if you do not see what you need.
