MGW501S3P4

Click on thumbnail image above to enlarge

Portable Power Distribution System
50 amp Outdoor, 5 Output Modules

Bring the power to the job rather than taking the job site to the power pole or generator.  Portable power distribution unit or "Spider Box" with one input and up to five output modules.  Rugged heavy duty steel construction but easy to handle.   Weighs only 20 to 40 pounds.  Dimensions 20"L x 21"D x 14"H.  Powder coat painted.  Modules can be changed in the field.  Three modules are located on the front and three on the back.  These are manufactured by Gull Wing Industries which supplies nearly all the portable distribution units for the carnival industry nationwide.  All units are preassembled and tested at the factory and are UL and cUL Listed.  Made in USA

Specs

Parameter Ratings Part Number
Base Unit 50 amp, 120/240V, 1 phase 4 wire, indoor MGW501-1BASE
Input Module 50 amp, 120/240V, locking inlet, CS6375 MICS6375SL
Output Module 1 20 amp, 120V, straight blade, (4) NEMA 5-20
with breaker and GFI protection
MO520DDGB
Output Module 2 20 amp, 120V, straight blade, (4) NEMA 5-20
with breaker and GFI protection
MO520DDGB
Output Module 3 30 amp, 240V, locking NEMA L6-30
with breaker protection
MOL630SB
Output Module 4 50 amp, 240V, straight blade, NEMA 6-50
with breaker protection
MO650SB

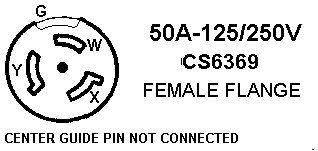

Output Module 5 50 amp, 120/240V, locking CS6369
without breaker protection
MOCS6369SL




Item Number: MGW501S3P4
Price: $1,249
Price last updated 05/13/2015
Shipping Weight: 40 lbs.
This item normally ships in approximately 4 weeks or less.
