PST Series
North America 60Hz
PST-1000-12 PST-1000-24
PST-1500-12 PST-1500-24
PST-2000-24
True Sine Wave Inverter
1000-2000W, 12/24Vdc
PST Series (120 VAC)
Proven extremely reliable in the field for over 10 years, PST’s high frequency switch-mode design provides clean and stable pure sine wave power. Available in 12V and 24V models. Safety certified to UL standards.
High efficiency
Temperature controlled cooling fan – reduces energy consumption
Low interference
Wide operating DC input range: 10.5 - 16.5 VDC
Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, overload and short circuit
Low idle power draw
GFCI protected AC outlets
Optional remote control (sold separately)
Comes with pin-type battery cable lugs
Safety certified to UL standards, FCC compliant
DC cable length and voltage drop must be evaluated carefully when laying out system. Click here for our simple voltage drop calculator.
Specs
Model | PST-1000-12 | PST-1500-12 | PST-1000-24 | PST-1500-24 | PST-2000-24 | |
Input Voltage | 10.7-16.5 Vdc | 24Vdc | 24Vdc | 24Vdc | ||
Power Rating at 1.0pf (continuous) | 1000W | 1500W | 1000W | 1500W | 2000W | |
AC Output voltage/Frequency | 120Vac +3%, 60Hz +1% | 120Vac +3%, 60Hz +1% | ||||
AC Total Harmonic Distortion | <3% | <3% | <3% | <3% | <3% | |
No Load Input Current | <0.8Adc | <1.0Adc | <0.6Adc | <0.8Adc | <0.8Adc | |
Peak Efficiency at Full Load | 85% | 92% | 85% | 92% | 85% | |
Surge Power at 1.0pf (1 second)* | 2000W | 3000W | 2000W | 3000W | 3500W | |
Output Connections | NEMA 5-20R GFCI Duplex Outlets | NEMA 5-20R GFCI Duplex Outlets, Terminal Block for hardwiring | NEMA 5-20R GFCI Duplex Outlets | NEMA 5-20R GFCI Duplex Outlets, Terminal Block for hardwiring | NEMA 5-20R GFCI Duplex Outlets, Terminal Block for hardwiring | |
Operating Temperature Range | 0-40C / 32-104F | 0-40C / 32-104F | ||||
Warranty | 2 year | 2 year | ||||
Weight | 8.8 lbs | 15.6 lbs | 8.8 lbs | 15.6 lbs | 15.6 lbs | |
Dimensions | 15.63"L x 9.47"W x 3.23"H | 18.43"L x 10.35"W x 4.16"H | 12" H x 8.25" W x 16.25" L | 18.43"L x 10.35"W x 4.16"H | 18.43"L x 10.35"W x 4.16"H |
* Important sizing information: Surge power rating is at 1.0 power factor. Most inrush currents such as for starting motors and electronics are NOT at 1.0 power factor. Therefore when selecting any of the above inverters to handle starting surges use the continuous rating (i.e. use a larger inverter).
Customers who purchased this product also ordered:
(click underlined words to see product pages)
Remote controls RC-15A or RC-200
1000W 12Vdc | 1000W 24Vdc | |

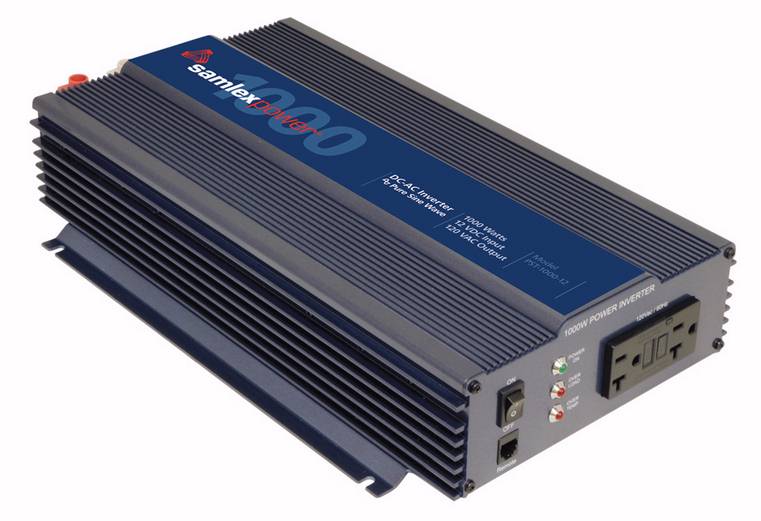

Item Number: PST-1000-12 Price: $602 Price last updated 10/11/2023 Shipping Weight: 11 lbs. This item normally ships in approximately 1-2 weeks or less. |
Item Number: PST-1000-24 Price: $591 Price last updated 10/11/2023 Shipping Weight: 11 lbs. This item normally ships in approximately 1-2 weeks or less. | |
1500W 12Vdc | 1500W 24Vdc | |
Item Number: PST-1500-12 Price: $714 Price last updated 10/11/2023 Shipping Weight: 15 lbs. This item normally ships in approximately 1-2 weeks or less. |
Item Number: PST-1500-24 Price: $714 Price last updated 10/11/2023 Shipping Weight: 15 lbs. This item normally ships in approximately 1-2 weeks or less. | |
--- | 2000W 24Vdc | |

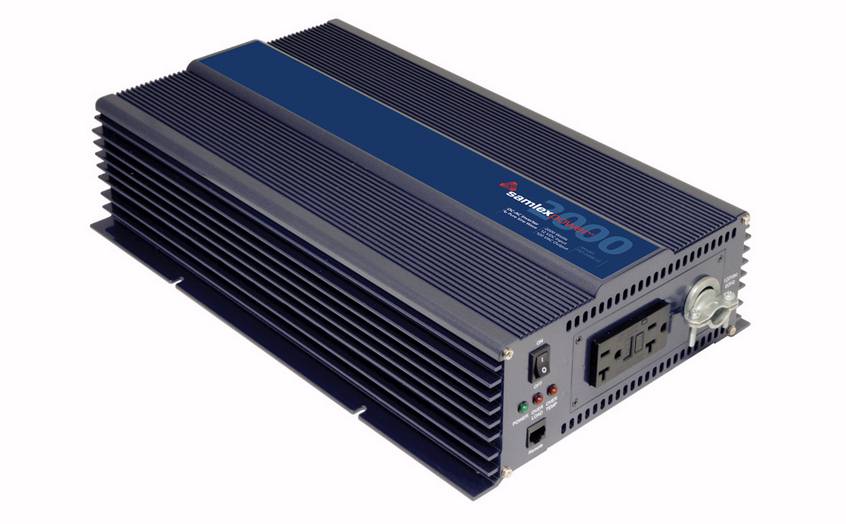

Item Number: PST-2000-24 Price: $933 Price last updated 10/11/2023 Shipping Weight: 19 lbs. This item normally ships in approximately 1-2 weeks or less. | ||
Remote for PST-1000 | Remote for PST-1500 and PST-2000 | |

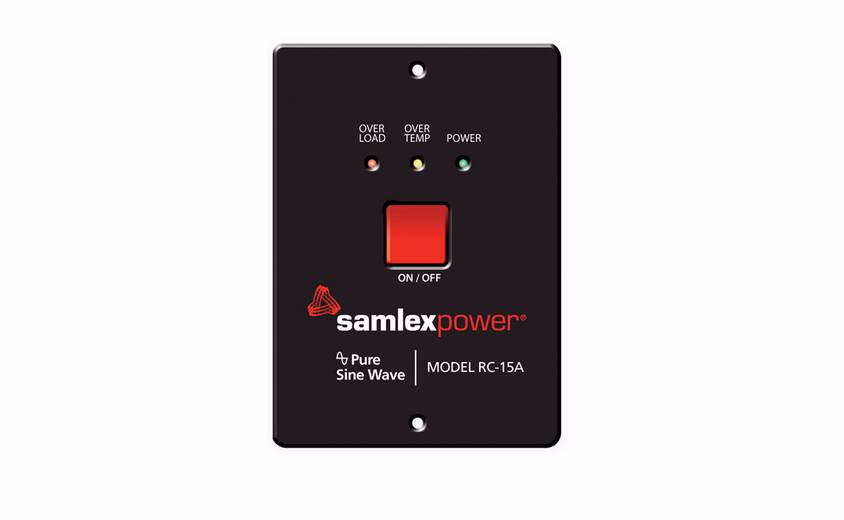

Item Number: RC-15A Price: $48 Price last updated 10/11/2023 Shipping Weight: 1 lbs. This item normally ships in approximately 1-2 weeks or less. |

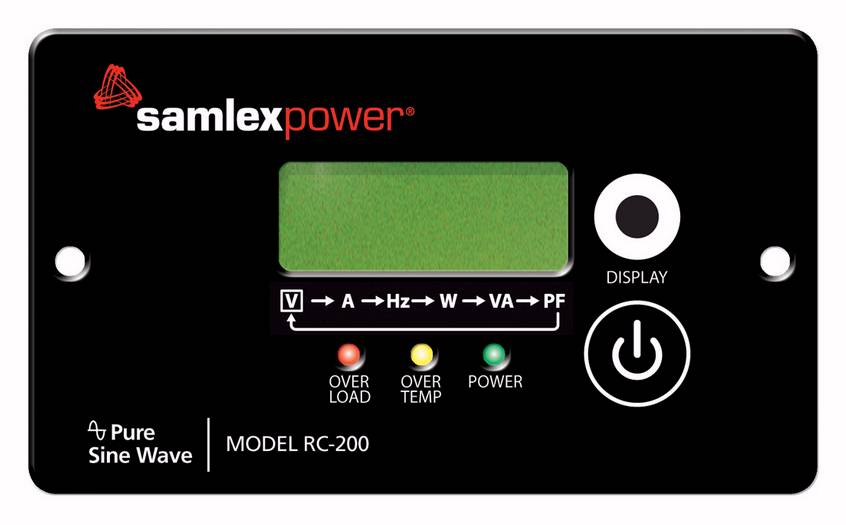

Item Number: RC-200 Price: $65 Price last updated 10/15/2015 Shipping Weight: 1 lbs. This item normally ships in approximately 1-2 weeks or less. |
