PTO47.7-1

pto generator installation with trailer & 400A transfer switch
Click here for story
Click thumbnail image above to enlarge

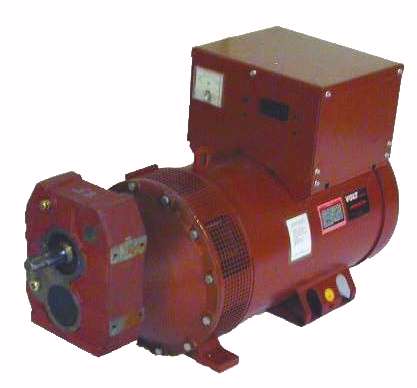

31.5KW Power Take-Off Generator

VOLT master America PTO Generators are designed as a standby electrical power supply for farm applications or any site that has an engine with a power take-off.  They can utilize a 60 hp or larger power take-off from tractors, bulldozers, or trucks as the prime mover.  Units are equipped with a helical gear box ratio design that operates generator at a low 1800 rpm for longer life, quieter operation, and smoother running.



Features

* Brushless four pole 1800 rpm generator with capacitor and copper windings.

* 300% overload for 10 seconds.

* The low harmonic content is safe for sensitive loads such as computer,
   tv, electronics, yet powerful enough to run motor loads such as your well pump or
   air conditioner.

* Automatic voltage regulator + 1%.

* Thermal magnetic circuit breakers protect from overloads and short circuits.

* Frequency meter assists in setting tractor speed and monitors output.

* One full power 240V plug included.

* Rugged helical gear transmission with a standard 1-3/8" six-spline 540 rpm input shaft
   stub and safety shield.  Telescoping PTO shaft kit must be purchased separately.



Accessories (order separately below)

* 1-3/8" six spline pto shaft

* Two-wheel trailer

* Three point hitch



Specs

Rated AC Power 31.5 kW
Surge AC Power 40 kW
AC Current at 240 V 131 amps (166 amps surge)
Rated Voltage 120/240 V, 1 phase
(3 phase optional)
Output Circuit Breakers yes
Receptacles at 120V (qty) (2) NEMA 5-20R
Receptacles at 120/ 240V (qty) (1) NEMA 1450R
(1) full power output connector
plug included for this receptacle
PTO Speed 540 rpm
Minimum Tractor PTO shaft hp Required for Rated Output 60 hp *
Motor Starting Capability 20 hp (code G)
Manufacturer's Warranty 1 year

* A lower PTO shaft hp rating is acceptable but
electrical output will be proportionally less.



Customers who purchased this product also ordered:
(click underlined words to see product pages)
PTO Shaft, 1-3/8" six spline both ends 3397
Two-wheel Trailer with Tires for off-highway use 3403
Three Point Hitch Kit 3418
High Capacity Power Inlet Kit
300134.
Welding Cable



CONTACT US BEFORE ORDERING THIS MODEL



Item Number: PTO47.7-1
List Price: $4,900.00
Your Price:  $0.00
Shipping Weight: 532 lbs.
Dimensions L x W x H (inches): 36 x 16 x 24
This item can be shipped direct to you from the VOLTmaster factory with free freight.  Th
is item normally ships within 2-4 weeks after order acceptance.  Click here for the latest lead time for this product.
