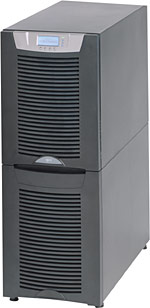

Online UPS System
10,000VA, 100/200V to 120/240V, Tower
The new Powerware® 9155 uninterruptible power system (UPS) delivers a genuine triple-play: the latest technology advances, a stylish and user-friendly design, and a budget-pleasing price. In fact, the Powerware 9155 delivers more features at a price lower than its predecessor.
This double-conversion online UPS resolves all nine of the most common utility power quality problems and supplies clean, continuous power to all connected equipment. The innovative design of this UPS delivers the industry’s best performance combination:
* High efficiency (90 percent or better across all load ranges)
* Low input current distortion—less than five percent total harmonic distortion (THD)
—due to an active IGBT rectifier that delivers 0.99 power factor correction
* High power factor output (0.9 PF)
The cumulative result of these advancements is maximum economy, adaptability, and power performance.
A scalable architecture makes this an uncommonly versatile UPS. Choose from four models to match today’s requirements, and upgrade kVA rating in increments as needed. Or, use our signature Powerware Hot Sync® paralleling technology to simply upgrade from a single-module system to a multi-module system for added capacity or redundancy. Multiple equivalent UPSs can be paralleled to operate as a unified UPS. Our patented load-sharing control intelligently distributes the workload among modules without requiring direct communications links among them.
The UPS comes bundled with LanSafe™ power management software that protects data and system integrity through remote monitoring and management. Connectivity options enable secure, remote power management and alert/alarm notification via your existing LAN or the Web.
Features and Benefits
* The double-conversion online design of this “9-series” UPS completely isolates
equipment from utility power to protect against all nine of the most common power
problems, including outages, sags, surges, spikes, brownouts, line noise, frequency
variation, switching transients, and harmonic distortion
* A high 0.9 output power factor delivers more power than the vast majority of competitors’
models. This UPS can actually power more equipment than other UPSs of equivalent
VA rating that have lower power factors.
* High efficiency (90 percent across all load ranges) reduces utility costs and runs cooler,
which in turn extends component life
* Low input current distortion (<5% THD), allows maximum transfer of power between power
source and protected load, and makes this UPS exceptionally compatible with auxiliary
* Powerware Hot Sync® technology allows you to parallel up to three equivalent UPS
modules for extra capacity or redundancy, ensuring that critical systems are always
protected. Parallel configurations can provide up to N+2 redundancy. No inter-module
communication wiring is needed. Our patented load-sharing control distributes the load
equally and ensures that loads remain fully protected even if a paralleled UPS is
* Eaton’s Powerware-exclusive ABM® technology significantly increases battery life
(compared to conventional trickle-charging) by using an innovative three-stage charging
technique that offers prolonged rest periods between charge phases, as well as
temperature-compensated charging that optimizes recharge time
* Integral batteries ensure smooth system shutdown in the event of a power outage.
* Extended Battery Modules can be added to extend battery backup time to hours, if desired.
* The space-saving, attractive design of this compact tower package delivers high power
density per square foot. A small footprint also supports more location options, fast and
easy installation, lower deployment cost, and more space available for future expansion.
* The UPS comes with LanSafe power management software that ensures data and system
integrity, using an intuitive, graphical interface and SNMP (Simple Network Management
Protocol) to provide control and visibility over multiple UPS products
* A complete suite of connectivity options enables secure remote monitoring over your
existing LAN or Internet, with real-time performance indicators, prioritized shutdown,
testing, and alerts delivered to your network management system, pager, or email
* Enjoy investment protection and peace of mind with a limited factory warranty that
includes replacement parts for two full years and on-site labor services for 90 days.
Access expert technical support 24 hours a day, 7 days a week.
* Beyond the warranty period, optional extended service plans are available to match any
need - from basic UPS and battery support to advanced remote monitoring with trending,
customized UPS and battery capacity planning reports, and comprehensive power
* $250,000 load protection guarantee, which covers repair or replacement of equipment
due to AC power line surge, spike, or other transient when properly connected to a
Powerware 9155 UPS
2-year limited warranty
10-year pro-rated limited warranty
$250,000 load protection guarantee
Part Numbers & Ratings
Model Number Description Power Rating
K408110000 32 battery (2-high) 8kVA / 7.2kW
K408120000 64 battery (3-high) 8kVA / 7.2kW
K408130000 32 battery w/ transf.(3-high) 8kVA / 7.2kW
K410110000 32 battery (2-high) 10kVA / 9kW
K410120000 64 battery (3-high) 10kVA / 9kW
K410130000 32 battery w/ transf.(3-high) 10kVA / 9kW
K412110000 32 battery (2-high) 12kVA / 10.8kW
K412120000 64 battery (3-high) 12kVA / 10.8kW
K412130000 32 battery w/ transf.(3-high) 12kVA / 10.8kW
K415110000 32 battery (2-high) 15kVA / 13.5kW
K415120000 64 battery (3-high) 15kVA / 13.5kW
K415130000 32 battery w/ transf.(3-high) 15kVA / 13.5kW
Extended Battery Modules
103004192-5501 64 battery (2- high)
103004193-5501 96 battery (3- high)
Maintenance Bypass Module
103004184-5501 Rear Mounted
Customers who purchased this product also ordered:
(click underlined words to see product pages)
Extended Battery Modules PW9155-EBM64, PW9155-EBM96
Power Distribution Module - rear mount (includes bypass)
Maintenance Bypass Switch - rear mounted 103004184 or wall mounted BPE20MBB1A (use if no PDM)
Paralleling Cabinet (includes maintenance bypass switch) and CAN Bridge Cards
ConnectUPS-X Web/SNMP card/xHub Card
ConnectUPS-MX SNMP/Modem Card
Relay Card AS400 compatible
Industrial Relay Card
Item Number: 9155-10K
Price last updated 8/22/2013
Shipping Weight: 352 lbs.
This item normally ships in approximately 3 days or less.
If not paying by credit card contact NoOutage before placing order.
Use transformer module for noise isolation or to derive neutral
