R306 series

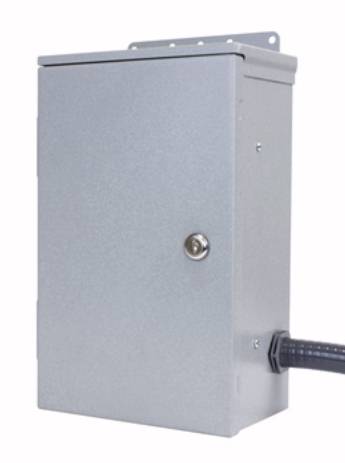

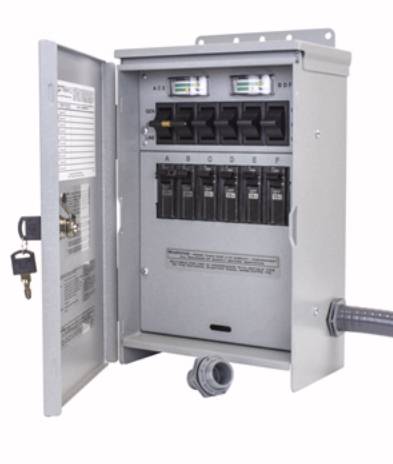

RelianceControls-R306Aclosed.jpg (9209 bytes) RelianceControls-R306Aopen.jpg (15998 bytes) RelianceControls-R306Abottom.jpg (12903 bytes)
closed open bottom brochure
click on thumbnail image above to enlarge

Outdoor Manual Transfer Switch
30 Amps, 6 circuits, 125/250V

PRO/TRAN® 2 by Reliance Controls

Reliance Controls Corporation is pleased to announce our next generation of manual transfer switches. The new PRO/TRAN®2 line of Loadside™ switches features all of the benefits which made the original Pro/Tran® an industry leading product for over 30 years, while incorporating a number of new features to give our customers exactly what they are looking for.

The PRO/TRAN
®2 utilizes conventional 1-inch interchangeable circuit breakers. All models are UL Listed for all popular brands and types of breakers, including AFCI and GFCI. They can be easily re-configured in the field for multiple double pole circuits if needed. All models also include a hinged non-metallic protective cover which also provides a finished appearance. Optional new color-coded watt meters are included on many models, and assist in balancing the generator load. Like all Reliance Pro/Tran® transfer switches, the PRO/TRAN®2 is completely prewired for fast installation.

The PRO/TRAN
®2 Series is UL Listed to UL Standard 1008 and is suitable for use in accordance with article 702 of the National Electrical Code ANSI/NFPA 70.
  Made in USA



Specifications

Total Capacity 7500 watts, 30 amps
Max Single Pole Circuits (C, D, E, F)- 120VAC (4) 20 amp
Max Double Pole Circuits (A & B only) - 240VAC (1) 30 amp (with handle tie on switch)
Generator Inlet Connection NEMA L1430P male inlet plug-in
Generator Load Watt Meters Yes
Enclosure Type outdoor surface mounted
Flex Conduit Included 3/4 x 16 inch pre-wired
UL Listing / CSA certified UL1008
Origin Made in USA
Warranty Reliance Controls 24 month warranty

.

Switch Ordering Table

Model No. Breakers
Included
Generator
Meters
Inlet for
Switch
Inlet Box
& Cordset
Price
$ US
Order Button
R306A (1)20A-2P
(4)15A-1P
Yes Yes No $297

RA306A (1)30A-2P
(4)15A-1P
Yes Yes No $297



Cordset Ordering Table


Description

Works With

Price
$ US

ADAPT Cord Adaptor - (1) 3-prong male straight-blade plug to (1) 4-prong twist-lock female connector passes through generator voltage starts at
$69
ADAPT-Y Cord Adaptor - (2) 3-prong male straight-blade plugs to (1) 4-prong twist-lock female connector can derive 240V from some 120V generators, can provide more generator capacity from some smaller generators starts at
$69
PC3010M Generator Cordset - 125/250V, 30 amp, twist lock, 10 AWG, 10 ft generators with NEMA L1430R receptacle and 306, 310, 30216A, 30508B, 30310A, F30216B, F30508B, F30310B, R306, R310, TRC0603A, PB30, PBN30, PR30 $56
PC3020M
PC3025M
Generator Cordset - 125/250V, 30 amp, twist lock, 10 AWG, 20 and 25 ft $76
PC3040M Generator Cordset - 125/250V, 30 amp, twist lock, 10 AWG, 40 ft $117
