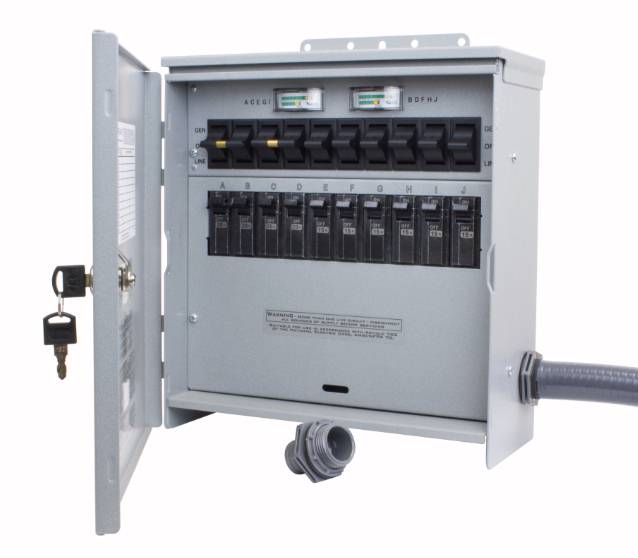

R310 series
Outdoor Manual Transfer Switch
30 Amps, 10 circuits, 125/250V
PRO/TRAN®
2 by Reliance Controls
Reliance Controls Corporation is pleased to announce our next generation of manual transfer switches. The new PRO/TRAN®2 line of Loadside™ switches features all of the benefits which made the original Pro/Tran® an industry leading product for over 30 years, while incorporating a number of new features to give our customers exactly what they are looking for.
The PRO/TRAN®2 utilizes conventional 1-inch interchangeable circuit breakers. All models are UL Listed for all popular brands and types of breakers, including AFCI and GFCI. They can be easily re-configured in the field for multiple double pole circuits if needed. All models also include a hinged non-metallic protective cover which also provides a finished appearance. Optional new color-coded watt meters are included on many models, and assist in balancing the generator load. Like all Reliance Pro/Tran® transfer switches, the PRO/TRAN®2 is completely prewired for fast installation.
The PRO/TRAN®2 Series is UL Listed to UL Standard 1008 and is suitable for use in accordance with article 702 of the National Electrical Code ANSI/NFPA 70. Made in USA
Specifications
Total Capacity | 7500 watts, 30 amps |
Max Amps Single Pole Circuits (C, D, E, F)- 120VAC | (8) 20 amp |
Max Amps Double Pole Circuits (A & B only) - 240VAC | (1) 30 amp (with handle tie on switch) |
Generator Inlet Connection | NEMA L1430P male inlet plug-in |
Generator Load Watt Meters | Yes |

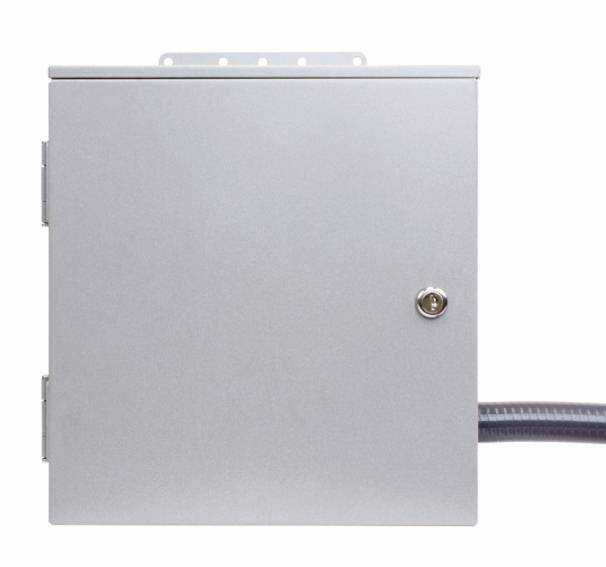

Enclosure Type | outdoor surface mounted |
Flex Conduit Included | 3/4 x 16 inch pre-wired |
UL Listing / CSA certified | UL1008 |
Origin | Made in USA |
Warranty | Reliance Controls 24 month warranty |
.
Switch Ordering Table
Specs & Model Numbers
Prices last updated 1/3/2024
Shipping weights start at 25 lbs.
These items normally ship in approximately 2 weeks or less.
Model No. | Breakers Included |
Generator Meters |
Inlet
for Switch |
Inlet
Box & Cordset |
Price $ US |
Order Button |
R310A | (2)20A-2P (6)15A-1P |
Yes | Yes | No | $440 |
|
RA310A | (1)20A-2P (1)30A-2P (6)15A-1P |
Yes | Yes | No | $440 |
|
Cordset Ordering Table
Description |
Works With |
Price |
|
ADAPT | Cord Adaptor - (1) 3-prong male straight-blade plug to (1) 4-prong twist-lock female connector | passes through generator voltage | starts at $69 |
ADAPT-Y | Cord Adaptor - (2) 3-prong male straight-blade plugs to (1) 4-prong twist-lock female connector | can derive 240V from some 120V generators, can provide more generator capacity from some smaller generators | starts at $69 |
PC3010M | Generator Cordset - 125/250V, 30 amp, twist lock, 10 AWG, 10 ft | generators with NEMA L1430R receptacle and 306, 310, 30216A, 30508B, 30310A, F30216B, F30508B, F30310B, R306, R310, TRC0603A, PB30, PBN30, PR30 | $57 |
PC3020M PC3025M |
Generator Cordset - 125/250V, 30 amp, twist lock, 10 AWG, 25 ft | $86 | |
PC3040M | Generator Cordset - 125/250V, 30 amp, twist lock, 10 AWG, 40 or 50 ft | $144 |
