S-1500

DISCONTINUED

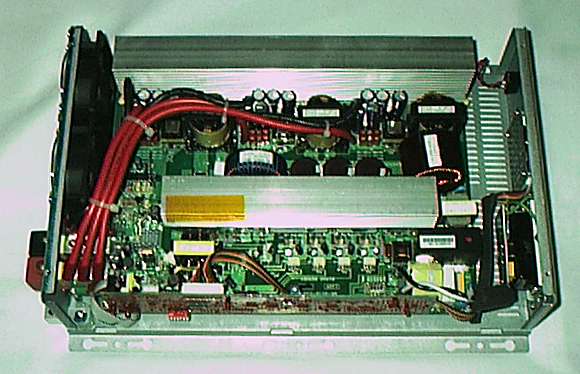

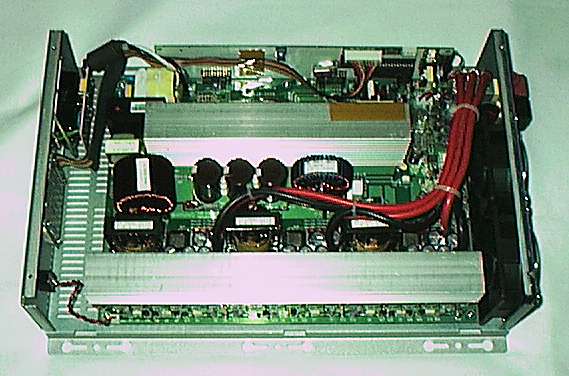

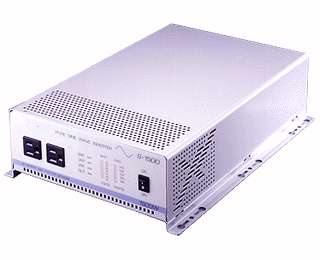

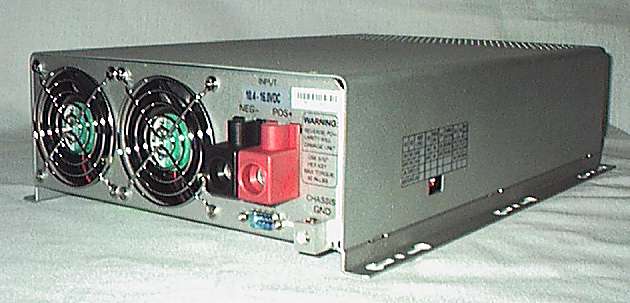

yk-psw12150.jpg (9252 bytes)  yk-psw12150rear.jpg (30814 bytes)  yk-psw12150inside1.jpg (42284 bytes)  yk-psw12150inside2.jpg (40908 bytes)
click on thumbnail images above to enlarge

Sine Wave Inverter
1500/2000 Watts

Finally a pure sine wave inverter that won't break your budget!

Thousands of these sine wave inverters have been in use since 1999 in England, Germany, Australia and Canada.  Now this quality sine wave inverter is available for sale in the USA!  It has a completely solid state design for quiet dependable long-life operation.  And because it produces a nearly perfect sine wave there is no risk of extra heating or damage to some appliances as with modified sine wave inverters.   For the advantages of sine wave inverters click here.  This unit is suitable for powering ac appliances from a dc source such as a vehicle electrical system and/or battery.  It will power those larger appliances one at a time such as a refrigerator, freezer, microwave oven, power tool, vacuum cleaner and sump pump, as long as they are within its rating.  In addition to use for home backup power, it is also great for your camping, RV or boating needs.  This inverter comes with some unique features not available in many other more costly units such as:

* four ac output voltage settings user adjustable via dip switches on side of unit

* 60 Hz or 50 Hz settings available to user by dip switch settings on side of unit
   (perfect for powering foreign appliances)

* power saving mode

* serial port for optional remote controller (available separately)

* serial port can also be accessed by computer to control inverter

* automatic shutdown protective functions that are all indicated on face of unit

* bar graph indicators for monitoring input voltage and output wattage

Exclusive 1 year warranty.  Made in Taiwan.



Specifications

Continuous Power Output 1500 watts
Overload Rating (approx. 5 seconds) 2000 watts
Surge Rating (approx. 1 second) >2000 watts
DC Input Voltage (only 48Vdc left) 12VDC (10-16VDC max)
24VDC & 48VDC also available
AC Output Voltage 100/110/115/120VAC 3%
(user selectable by dip switches)
220/230/240VAC by special order
Output Frequency 50/60 Hz 0.05%
(user selectable by dip switches)
Peak Output Current 25 amps
Full Load Efficiency 83% for 12VDC model
87% for 24VDC model
No Load Power Required <1.0 watts saving mode
approx 12 watts operating mode (12V)
Output Wave Form Sine Wave with less than 3% total harmonic distortion
Output Voltage Regulation -10% to +4%
Automatic Shutdown Protection - Overload
- Short circuit
- Reverse Polarity (fuses)
- Overvoltage
- Undervoltage
- Overtemperature
Power Saving Recovery Time 5 seconds
Operating Temperature Range 0C to 50C
Storage Temperature Range -30C to 70C
Dimensions (L x W x H) 16.5" x 11" x 4.3"
Weight 16.5 lbs



This inverter must be powered from a negative ground electrical system.   All passenger vehicles manufactured in the U.S.A. after 1955, and in Europe and Asia after 1971 have negative ground systems and are acceptable.



Customers who purchased this product also ordered:
(click underlined words to see product pages)

DC cables and protective fuse kit SK-200.
