S30-6 SR30-6 S50-6 SR50-6 S50-10 SR50-10
THIS PRODUCT HAS BEEN DISCONTINUED
BY THE MANUFACTURER UNTIL FURTHER NOTICE

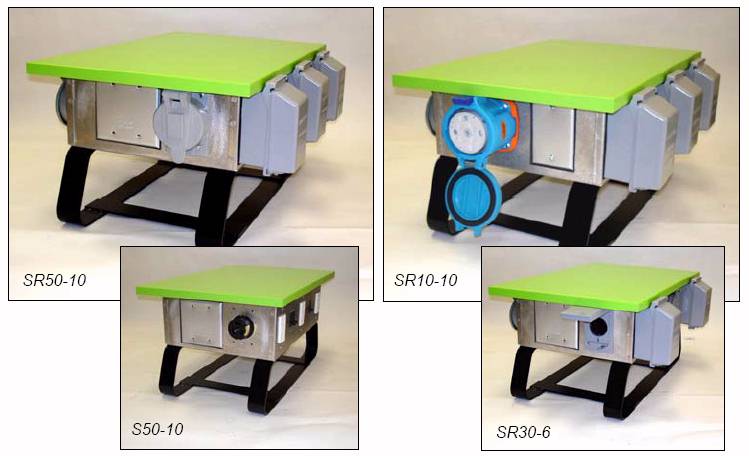

click on thumbnail
image above to enlarge
PowerWeb
Temporary Power Distribution Centers
120/240V single phase
30A or 50A Generator input
5 or 7 output modules, indoor or outdoor
PowerWeb™ Temporary Power Distribution Centers provide a safe, reliable way to distribute temporary power on a construction site, for special event set up, movie production, trade show set up, or just for general facilities maintenance. For use with generators or temporary utility service.
3 indoor models, and 3 outdoor models from 30 amps to 50 amps. 100A also available as special order.
Outdoor models are similar to indoor models except the outlets have flip-up weather-proof covers and the flat top of box is longer.
Shipping Weight: 38 lbs.
This item normally ships 3-5 business days
Specs and Ordering Table
THIS PRODUCT HAS
BEEN DISCONTINUED
BY THE MANUFACTURER UNTIL FURTHER NOTICE
cart data not found
Model No. | Male Inlet Provided (click link) |
Outlets NEMA 5-20R duplex GFCI |
Additional Outlet (click link) |
Feed Thru Outlet | Works with: Cordsets |
Price $ US |
Add to Shopping Cart |
S30-6 indoor |
30A 120/240V L1430P |
20A 120V (3)duplex GFCI 5-20R | 30A 240V L6-30R |
30A 120/240V L1430R | RJB10410, RJB10425, RJB10450 | ? |
|
SR30-6 outdoor |
30A 120/240V L1430P |
20A 120V (3)duplex GFCI 5-20R | 30A 240V L6-30R |
30A 120/240V L1430R | RJB10410, RJB10425, RJB10450 | ? |
|
S50-6 indoor |
50A 120/240V CS6365 | 20A 120V (3) duplex GFCI 5-20R | 30A 240V L6-30R |
50A 120/240V CS6369 | RJB06410, RJB06425, RJB06450 | ? |
|
SR50-6 outdoor |
50A 120/240V CS6365 | 20A 120V (3) duplex GFCI 5-20R | 30A 240V L6-30R |
50A 120/240V CS6369 | RJB06410, RJB06425, RJB06450 | ? |
|
S50-10 indoor |
50A 120/240V CS6365 | 20A 120V (5) duplex GFCI 5-20R | 30A 240V L6-30R |
50A 120/240V CS6369 | RJB06410, RJB06425, RJB06450 | ? |
|
SR50-10 outdoor |
50A 120/240V CS6365 | 20A 120V (5) duplex GFCI 5-20R | 30A 240V L6-30R |
50A 120/240V CS6369 | RJB06410, RJB06425, RJB06450 | ? |
|
NOTES:
1. A branch breaker provided by the installer must be installed in the upstream load center to feed this sub-panel.
2. Additional models available upon request.
