TG350

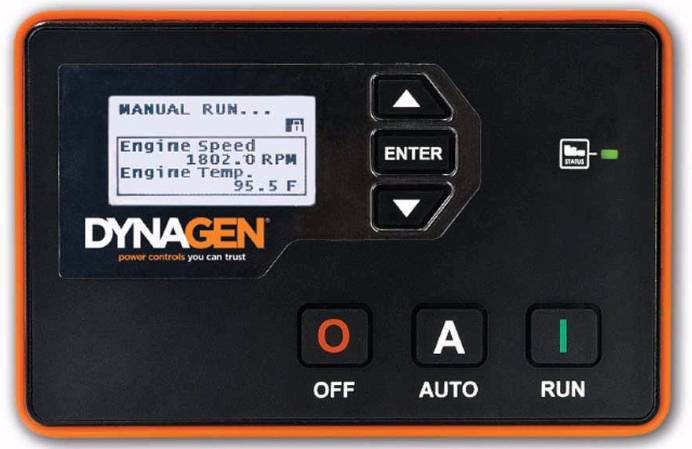

front view plug-on relay pack typical connections without relay pack typical connections with relay pack spec brochure user manual

click thumbnail image above to enlarge

Generator Auto Start Control
by DynaGen

(program using display, web or PC software and standard USB cable)



Standard or Electronic Engines

The TOUGH series controllers are designed to provide complete control, protection and engine instrumentation for both standard and electronic engines. The module is easily configured using either the front panel buttons or our PC configurator software. TOUGH series controllers are ideally suited for severe duty applications where reliability is critical such as engine-powered pumps and industrial compressors. UL/CUL Listed.  Made in Canada.

Displays:
  • Oil Pressure
  • Engine Temperature
  • Fuel Level
  • Oil Level
  • Hour Meter
  • RPM
  • Real time clock display with time/date
  • Battery Voltage
  • J1939 DTC codes with custom text
  • Two customer defined parameters
    (temperature, pressure, voltage, levels)
Features and Functions:
  • SAE J1939 CANbus Protocol
  • Support for J1939 engine manufacturers (Volvo, John Deere, Cummins QSB5, GM PSI, Yanmar, ISUZU)
  • Speed control offset adjustment electronic engines
  • Automatic shutdowns and warnings
  • Trim feature for sensors
  • RPM via magnetic pickup or J1939
  • Maintenance counter
  • Exerciser Clock
  • 100 Event Log
  • Conformally coated for protection against moisture and contaminants
  • Gasket for water ingress protection to IP65
  • Autostart on Low Battery and other sensors
  • Free PC Configurator Software
  • Fast and rugged installation clips
  • Passcode protected
  • Manual and remote start
  • Momentary start and momentary stop inputs suitable for float switch control in pumping applications and multiple start stop stations
  • Pre-heat and many configurable timers
  • Accepts common senders (VDO, Datcon, Murphy, and more)
  • Custom senders configurable with PC software
  • 5-Year Warranty
Front Panel or PC Configurable

The TOUGH series can be programmed manually via front panel buttons or with our easy-to-use PC configurator software that provides customization of screen messages, sender selections, control settings, and much more. The PC configurator uses a standard USB cable with no special programmer required.

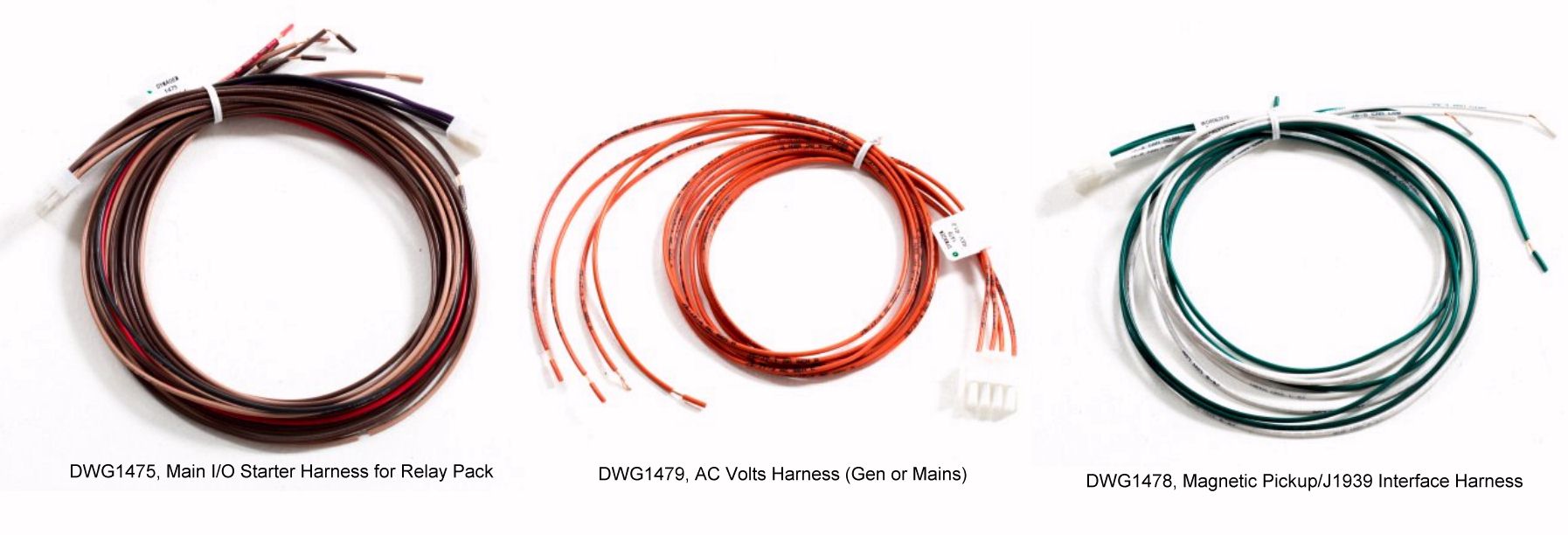

View the connection diagram thumbnail above to identify the connectors and harnesses before ordering. The relay pack is optional if you already have operable interposing relays for the engine crank, fuel solenoid and glow plug (if applicable). If you are upgrading from a different model controller you WILL need the wiring harnesses to get the mating plugs to fit this controller.









Item Number: TG350
Price: $421
Price last updated 10/5/2023
Shipping Weight: 2 lbs.
This item normally ships in approximately 3 days or less.
