1-TWA-19-01

        view         parts included

click thumbnail image above to enlarge

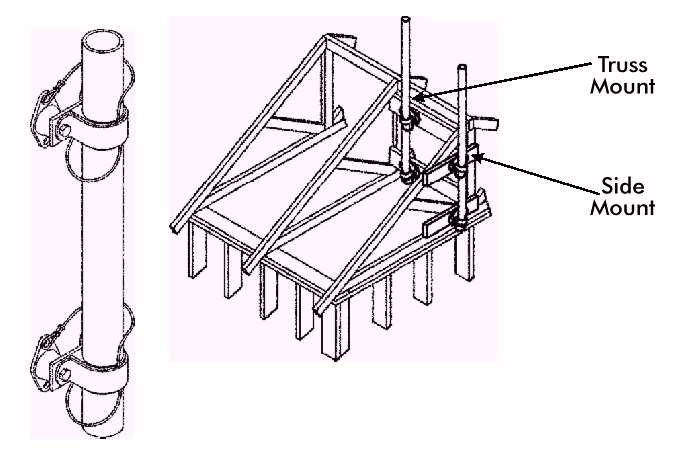

Roof Mounted Tower Kit
for AIR Wind Generators

Roof mounting kit for AIR wind generators.  Designed to be bolted to building framing using lag screws (not included).  Vibration isolators included reduce noise transmission to building.  Kit includes hardware, isolators, clamps, sleeves, safety leashes roof seal and instructions.  Pipe and lag screws not included.

Pipe requirements are as follows:  Use 1-7/8" outside diameter steel pipe with a 0.065 wall thickness, which is the same as a trade size of 1-1/2" nominal inside diameter.

These towers are P E stanped and approved for California buy-down program.

See Tower Details page for installation and construction information.

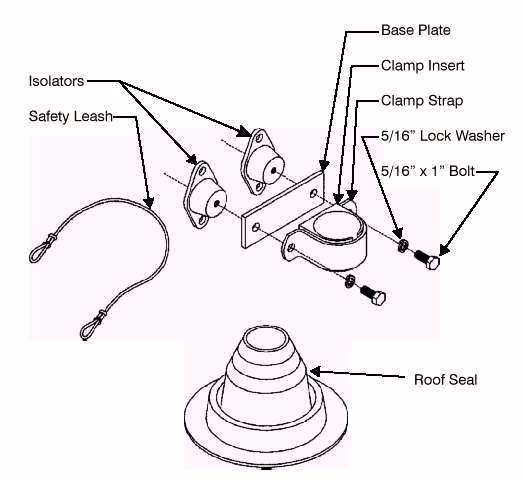

Detailed Parts List

Part Description Quantity
Isolators 4
Base Plates 2
Clamp Sleeves 2
Clamp Straps 2
5/16" x 1" Bolts 4
5/16" Lock Washers 4
Safety Leashes 2
Roof Seal 1






Item Number: 1-TWA-19-01
Price: $218
Price last updated 2/27/2017
Shipping Weight: 5 lbs.
This item normally ships in approximately 1 week or less.
