Page last updated Oct 16, 2015 @ 02:03am

VRP2000-02
VRP3000-02
VRP5000-02
VRP7500-02
VRP10000-02
VRP15000-02

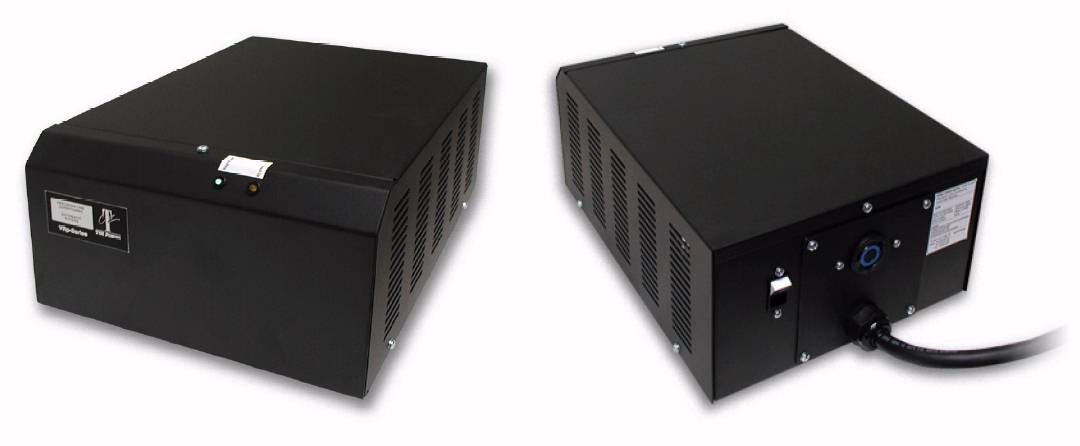

cabinet system

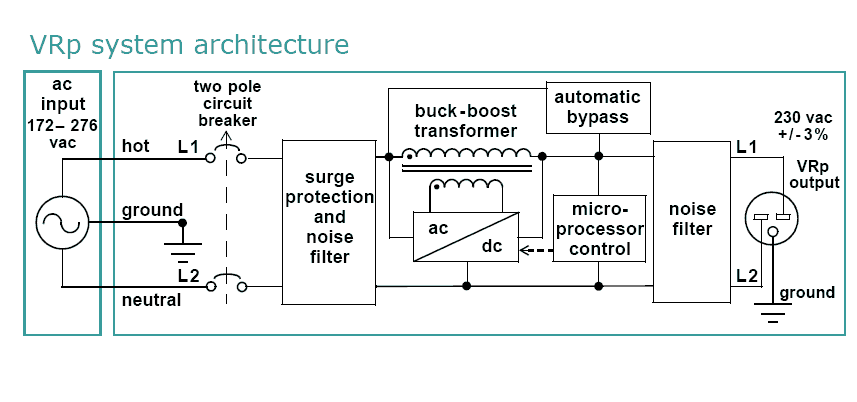

architecture
3000W &
5000W
7500W thru 15000W
click thumbnail image above to enlarge

Automatic Voltage Regulator
(Line Conditioner)
2,000W through 15,000W and 230V



Traditional tap-switching AVR used to be considered the more heavy duty of the two voltage regulation topologies for developing country applications. Over time, the newer electronic pulse width modulation (PWM) based VRp Series has proven itself as not only the more precise methodology, useable on any kind of load, but also is now preferred for use in countries with quite aberrant power as well as those with relatively stable power, such as the US, Europe, etc.  Made in USA

VRp stands for voltage regulation with precision. VRp provides output voltage within plus/minus 3% of nominal, for input voltage that may vary wildly, e.g. 172 to 276 Vac instead of a stable 230
Vac. There is no switching of taps or otherwise a break in the power path thanks to continuous PWM switching of a buck-boost transformer. The VRp voltage regulator is designed for applications that require absolutely stable, high-reliability power, without switching components in the power path. The low-weight, high efficiency VRp electronic voltage regulator is easy to install in any environment. The automatic bypass assures that connected equipment will not shut down, even if the VRp fails. And if there are high inrush currents such as with the startup of motors the VRp will temporarily go to bypass to provide the necessary current to the load. VRp is compatible with all loads as it does not switch any components in the power path. VRp’s ultra-low impedance assures stability even with the most demanding loads.

The VRp Series, in 2 to 30 kW output single-phase models, and 6 to 90 kW output three-phase models, provides cycle-by-cycle voltage regulation by using 15-20 KHz microprocessor-controlled IGBT switching technology with 96% or higher power conversion efficiency. The extremely fast input voltage detection and correction time of 20 ms (about 50 to 200 times faster than traditional servo-motor controlled AVR and about 20 to 50 times faster than relay/triac/scr based tap-changing AVR) ensures protection of even the most sensitive and mission-critical telecom, medical, instruments and production equipment. VRp Series units provide a significant portion of a good high availability power strategy, yet are only a small fraction of the size, weight and cost of an equally sized UPS system.

Detailed Specifications

Parameter VRP2000-02xx VRP3000-02xx VRP5000-02xx VRP7500-02xx VRP10000-02xx VRP15000-02xx
Rated Power 2000 watts 3000 watts 5000 watts 7500 watts 10000 watts 15000 watts
Rated Input Voltage
and frequency
172 to 276 VAC,
47-63 Hz
172 to 276 VAC,
47-63 Hz
172 to 276 VAC,
47-63 Hz
184 to 276 VAC,
47-63 Hz
184 to 276 VAC,
47-63 Hz
184 to 276 VAC,
47-63 Hz
Input Circuit Breaker 15A 2-pole 20A 2-pole 30A 2-pole 40A 2-pole 50A 2-pole 80A 2-pole
Input Connection hardwired or cord with various 15A plug choices hardwired or cord with various 20A plug choices hardwired or cord with various 30A plug choices hardwired hardwired hardwired
Output Voltage (Note 2) 230 Vac + 3% 230 Vac + 3% 230 Vac + 3% 230 Vac + 3% 230 Vac + 3% 230 Vac + 3%
Output Connections hardwired or
various 15 amp 230V receptacles
hardwired or
(1) 20 amp 230V NEMA L6-20R or
(1) 20 amp 230V NEMA 6-20R
hardwired or
(1) 30 amp 230V NEMA L6-30R or
(1) 30 amp 230V NEMA 14-30R or
(1) 30 amp 230V NEMA L14-30R
(2) 30 amp 230V NEMA L6-30R

hardwired

hardwired

hardwired

Operating Temperature Range 32-104 F 32-104 F 32-104 F 32-104 F 32-104 F 32-104 F
Diagnostic LEDs - green normal operation
- yellow temporary bypass
- green normal operation
- yellow temporary bypass
- green normal operation
- yellow temporary bypass
- green normal operation
- yellow temporary bypass
- green normal operation
- yellow temporary bypass
- green normal operation
- yellow temporary bypass
Warranty 2 years 2 years 2 years 2 years 2 years 2 years
Dimensions inches
(W x H x D)
11 x 6.25 x 15 11 x 6.25 x 15 11 x 6.25 x 15 14.5 x 9 x 20 14.5 x 9 x 20 14.5 x 9 x 20

NOTES:
1) Other sizes and outdoor versions are available.
2) If split phase output of 115/230V or 120/240V is needed a separate output transformer is also required.  This is normally needed for single phase services in North America.  Request a quote for this additional transformer if needed.








Item Number: VRP2000-02
Price: $1,281
Price last updated 10/15/2015
Shipping Weight: 35 lbs.
This item normally ships in approximately 3-4 weeks or less.

Item Number: VRP7500-02
Price: $1,961
Price last updated 10/15/2015
Shipping Weight: 80 lbs.
This item normally ships in approximately 3-4 weeks or less.



Item Number: VRP3000-02
Price: $1,546
Price last updated 10/15/2015
Shipping Weight: 80 lbs.
This item normally ships in approximately 3-4 weeks or less.

Item Number: VRP10000-02
Price: $2,104
Price last updated 10/15/2015
Shipping Weight: 140 lbs.
This item normally ships in approximately 3-4 weeks or less.



Item Number: VRP5000-02
Price: $1,800
Price last updated 10/15/2015
Shipping Weight: 90 lbs.
This item normally ships in approximately 3-4 weeks or less.

Item Number: VRP15000-02
Price: $2,570
Price last updated 10/15/2015
Shipping Weight: 149 lbs.
This item normally ships in approximately 3-4 weeks or less.
