X100

WE NO LONGER SELL LOAD BANKS

click on thumbnail
image above to enlarge

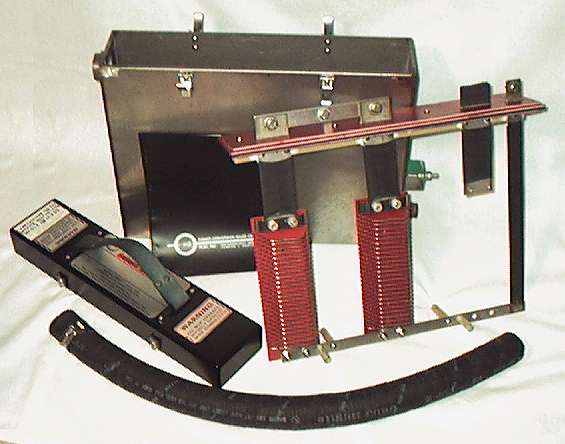

Resistive Load Bank Tank
150kW max, 600VAC max, 3-phase

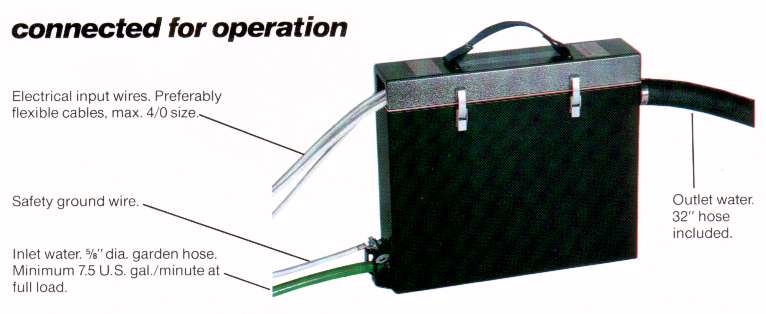

This model water cooled load bank consists of a load tank and a 32 inch outlet hose.  The tank can accomodate up to three resistor elements that are ordered separately in sets of three.  Resistor elements can be easily replaced in the field.   With different connections this can also be used as a single phase or DC load bank.   A clean water source of 7.5 gpm for each 150kW load unit (or proportionally less flow) is required.  This is usually provided using a 5/8" diameter garden hose for single load units or a 1-1/2" fire hose with a water distribution assembly for multiple units.  A cooling tower source can also be used as long as there is no sediment in the water and adequate flow is provided.  Any number of load tanks can be connected in parallel, limited only by the available cooling water pressure.  Maximum wire size is 4/0 with provisions for ground wire.

Order resistor elements separately.  When multiple load banks will be used in parallel a water distribution assembly can be ordered separately for the supply connection.

Click here for instruction manual.

Order one set of resistors of the proper voltage at the following links for factory installation:

RES380, RES415, RES480, RES600, RES-CUSTOM.

Extra sets can be ordered for changing the load value in the field.
