ME-BMK

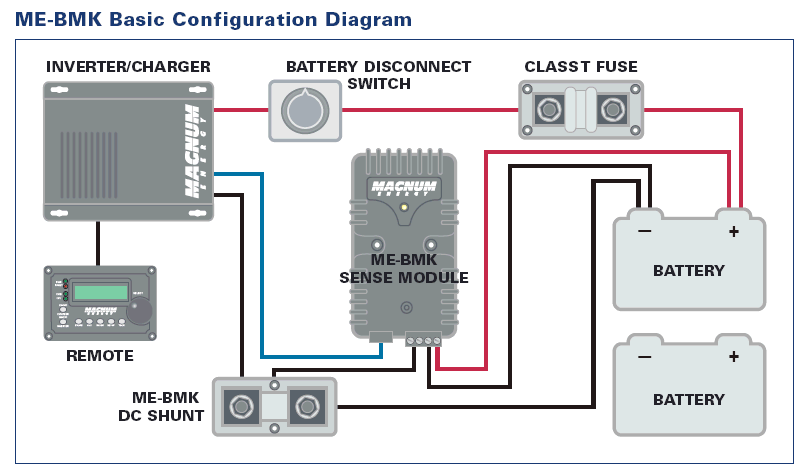

kit parts diagram brochure
click thumbnail image to enlarge

Battery Monitoring Kit
7-70Vdc, 500A max

for use with Mangum Inverters

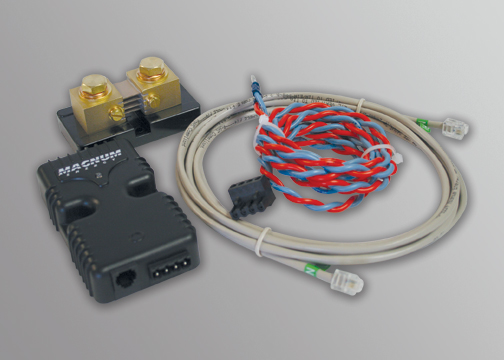

The Battery Monitor Kit from Magnum Energy gives you a “fuel gauge” type of meter for your battery bank. It monitors the battery bank and reports the percentage state of charge, real time amps, voltage, amp-hours in/out, and the minimum/maximum DC volts. The Battery Monitor Kit includes the sense module, sense and communication cables, and a 500 amp shunt. The ME-BMK requires a Magnum Inverter with a "Network" port and a ME-RC remote with revision 2.0 or higher.  Made in USA
