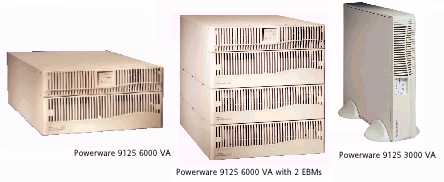

Online UPS System
6000VA, 208-240Vac, Rack/ Tower


Features and Benefits

* Double-conversion online design constantly conditions and controls AC output to
   assure a zero delay transferring to backup power in the event of an utility power failure
* Maximizes battery backup time for critical systems with the ability to independently
   control Load Segments, enabling you to manage scheduled shutdowns and sequential
   startups of protected loads
* Enables users to remotely reboot locked-up network equipment, using the Load
   Segments (feature with Powerware ConnectUPS connectivity cards (700-3000 VA units)
* Accepts up to four "hot-swappable" Extended Battery Modules to provide additional battery
   backup capacity as necessary, without interrupting UPS operation and load protection
* Provides up to 3000 VA of UPS power in only two units (2U) of rack space;
   up to 6000 VA in 5U, to conserve valuable rack space, with tower pedestal kits,
   optional rack kits, and seismic kits available
* Ensures data and system integrity with LanSafe™ power management software
   that uses an intuitive, graphical interface and SNMP (Simple Network Management
   Protocol) to provide control and visibility over multiple UPS products
* Offers a standard RS-232 serial communications port and connectivity options available
   to suit any communication requirement for remote monitoring
* Offers optional PowerPass® power distribution modules that include a maintenance
   bypass switch to upgrade or replace the UPS without interrupting power
* Ensures data integrity with free Software Suite bundle including LanSafe™ software,
   PowerVision® software, and Foreseer® software
* Select models available in black (special order)


2-year pro-rated warranty
$250,000 UPS load protection guarantee (with return of Warranty Card receive 10-year pro-rated warranty)

Part Numbers & Ratings

Model Number             Part Number           Power Rating
PW9125 5000gHW    103003623-6591      5000 VA/3500 W
PW9125 5000g         103003633-6591      5000 VA/3500 W
PW9125 6000gHW    103003625-6591      6000 VA/4200 W
PW9125 6000gHWFC 103003626-6591      6000 VA/4200 W
PW9125 6000g         103003635-6591      6000 VA/4200 W
PW9125 6000gFC     103003636-6501      6000 VA/4200 W
Extended Battery Modules
PW9125 EBM240     103003387-5591               ---
