SOLAR PV MODULES
Click thumbnail image above to enlarge
Solar PV Module
130W ac grid-tied

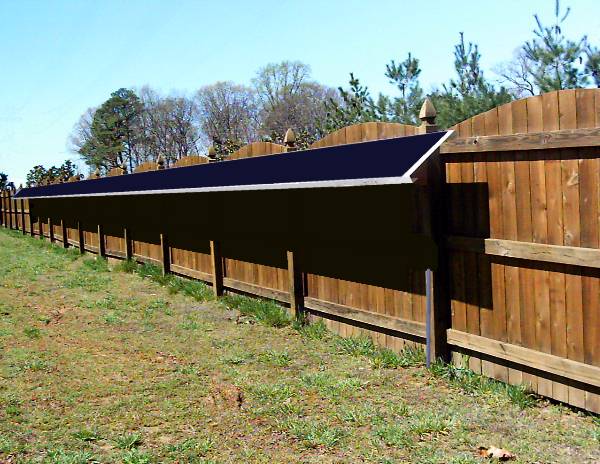

for fence mounting

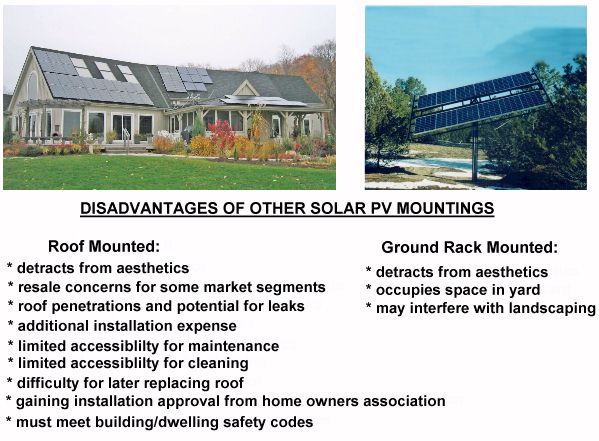

Finally an alternative to roof-mounted solar PV systems! Do you like the idea of electricity from the sun but don't want solar pv modules on your roof or on racks in your yard? Or maybe your roof just does not face the right direction. Fence mounted pv modules could be an option for you.
- Minimal impact on site aesthetics compared to other types of solar pv installations.
- May even be invisible from outside fenced area.
- Easy ground-level installation, no dangerous roof climbing.
- Simple access for cleaning and maintenance.
- Mount adjusts from 20 to 70 tilt. Can be changed with seasons.
- Modular in 18'-6" sections after assembly
- Individual grid-tie inverter with MPPT for each module allows better energy harvesting even if part of fence is shaded.
- System can be added to as budget allows.
STC = standard test conditions of 1000W/m2 and 25C cell temperature
PV Module Type amorphous silicon Rated Power at STC (dc) 136-144 Watts Estimated Output Power at STC (ac) 130 Watts Nominal Output Voltage (ac) 240V single phase 60Hz PV Module Dimensions (mounted) 222" x 16" (extends less than 18" from fence posts) Weight (PV module, inverter, mounting) 100 lbs.
