ANN Fuses
(ANN-50 thru ANN-500)
Click thumbnail image above to enlarge
50A-500A ANN Fuses
Holder available
80Vdc max

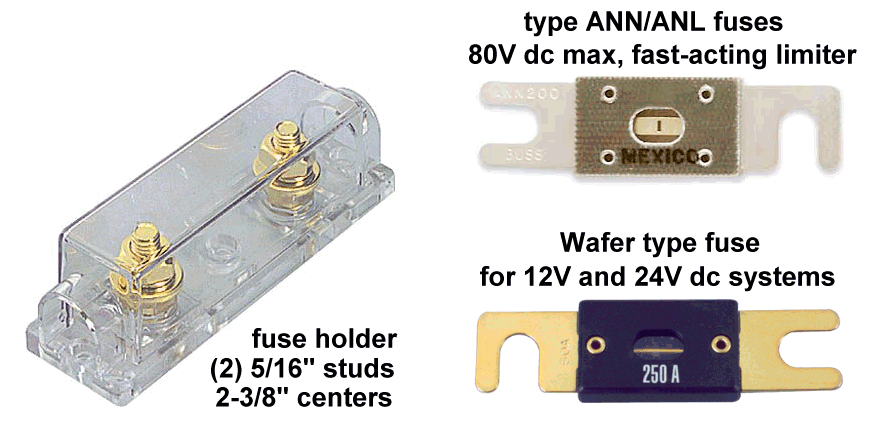

Bussmann type ANN fuses are ideal for providing overcurrent protection for the dc input to inverters and the connections to battery banks. Very fast-acting, will safely isolate short circuits up to 2700 amps. Designed for indoor use.
Generic brand low cost fuses also available in selected ratings. But these have a maximum rating of 32Vdc and are suitable for use only on 12V and 24V dc systems.
Fuse holder has 5/16" studs and clear cover for easy viewing of fuse condition.
Specs & Ordering
Prices last updated 7/27/2009
Shipping weights start at 0.2 lbs.
These items normally ship in approximately 1 week or less.
|
Model No. |
Price $ US |
Add to Shopping Cart |
Model No. |
Price $ US |
Add to Shopping Cart |
Model No. |
Price $ US |
Add to Shopping Cart | ||
| BUSSMAN ANN FUSES FOR 12V, 24V, 48V DC SYSTEMS (80VDC MAX) | ||||||||||
| ANN-50 | $45 | ANN-175 | $45 | ANN-325 | ? | |||||
| ANN-60 | $49 | ANN-200 | $39 | ANN-350 | $70 | |||||
| ANN-80 | $49 | ANN-225 | $49 | ANN-400 | $70 | |||||
| ANN-100 | $39 | ANN-250 | $44 | ANN-500 | $70 | |||||
| ANN-125 | $44 | ANN-275 | $45 | ANN-800 | ? | |||||
| ANN-150 | $39 | ANN-300 | $44 | ANN- | ? | |||||
| GENERIC WAFER FUSES FOR 12V AND 24V DC SYSTEMS (32V DC MAX) | ||||||||||
| WAFER-60 | $16 | WAFER-150 | $16 | WAFER-250 | $16 | |||||
| WAFER-100 | $16 | WAFER-200 | $16 | WAFER-300 | $16 | |||||
Order fuse holder below.
Item Number: ANN-HOLDER
Price: $18
Price last updated 7/27/2009
Shipping Weight: 0.6 lbs.
This item normally ships in approximately 1 week or less.
