High Capacity Modular Plug
600V 175 amps max, 4 pole
This modular plug fits many large pto generators rated higher than 60 amps. Also mates with our High Capacity Inlet Kit 300134. Uses Anderson SB175 housing and interchangeable tips. The tips are designed for use with extra-flexible welding cable and can be crimped and/or soldered. Suitable for making up your own cordset. Note that actual ampacity depends on wire size used. Assembly required.
Plug Specs
Maximum Capacity* + | 175 amps |
Voltage Rating* | 600V |
Manufacturer's Brochure | SB175 |

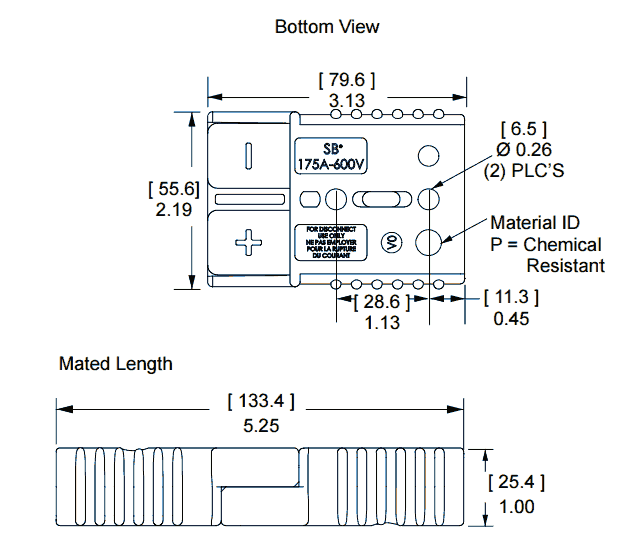

Housing Dimensions | |
plug tips to genset cable (other sizes special order) |
1/0 without sleeve #2 ga with sleeve |
* UL Rated for 65C rated
wire or cable size. Actual ampacity may be less depending on application and wire size. + Not designed for breaking under load |
Allowable Ampacities
Single insulated conductors rated 0-2000 volts in free air at
ambient air
temperature of 30C (86F). Maximum conductor temperature 65C.
Approximate values derived from NEC Table 310.17
Conductor Size AWG or MCM |
Approximate Ampacity |
Equivalent Generator Ratings (kVA) | |||
120/240V 1phase | 120/208V 3phase | 240V 3phase | 277/480V 3phase | ||
2 | 151 | 36 | 54 | 62 | 125 |
-- | 175 | 42 | 63 | 72 | 145 |
1 | 178 x | 42 | 64 | 74 | 148 |
1/0 | 210 x | 50 | 75 | 87 | 174 |
2/0 | 243 x | 58 | 87 | 101 | 202 |
x Plug housing is limited to 175 amps maximum. |
If you are purchasing this plug for a generator you are also buying now, check to see if the generator does not already include a full capacity modular plug loose for installation on field cable. You may not need to purchase this item if it is already included.
