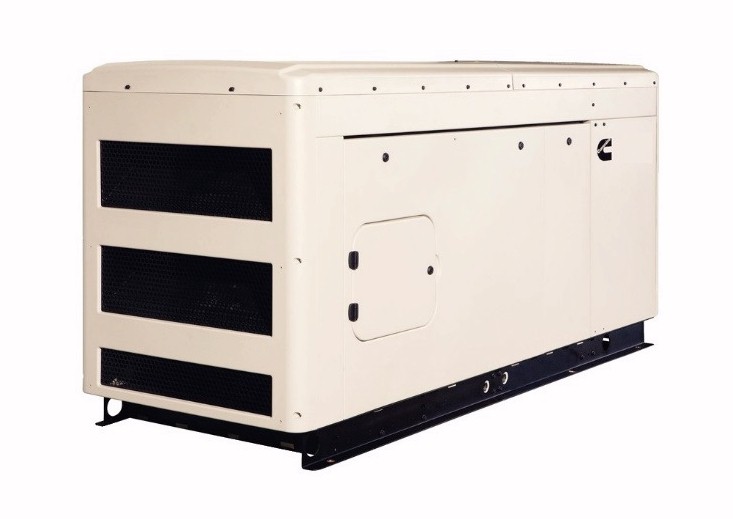

C20D6

with housing generator specs tank specs
Click thumbnail image above to enlarge

Diesel Generator Set
Cummins® Power Systems Pre-configured
20KW standby rated, 120/240V single phase


click above to return to the Cummins main page

Features and Benefits

Cummins Power Generation generator sets are fully integrated power generation systems providing Robust product design and testing - The generator is designed to operate under extreme environmental conditions. The generator is tested and certified per the latest EPA and UL standards.

Heavy duty engine - Rugged 4-cycle industrial diesel engines deliver reliable power and fast response to load changes.

Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability..

Control system - The PowerCommand® 1.1 electronic control is standard equipment and provides total generator set system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection and NFPA 110 Level 1 compliance.

Cooling system - Standard cooling package provides reliable running at up to 122 F (50 C) ambient temperature. Coolant heaters also come standard on generator sets for starting well below freezing.

Flexible exercise mode - The innovative, flexible exercise mode enables the generator to exercise at a time, frequency and duration that suits the customer's preference reducing unnecessary fuel consumption, emissions and noise..

Self-diagnostics and easy service - The generator is equipped with Cummins PowerCommand® electronic control to provide industry-leading self-diagnostic capabilities. In addition, critical components of the generator are designed to ensure service and preventive maintenance can be completed in a short period of time.

Warranty and service - Backed by a comprehensive warranty and worldwide distributor and dealer network.

Specifications

Parameter

Value

Generator Set

Power Output (kW/kVA) at 60 Hz 20 / 20
Operating Temperature Range (F) -40 to +122
Main Line Circuit Breaker (Amps) 100
Battery Charger (Amps / Volts) 6 / 12
Voltage regulation, no load to full load ± 1.0%
Random voltage variation ± 1.0%
Random frequency variation ± 0.5%
Engine
Model Kubota D2200
Displacement (L) 2.20
Cylinder block cast iron, in-line
Battery charging alternator (Amps / Volts) 550 / 12
rated speed (rpm) 1800

Alternator

Design Brushless, 4 pole, drip proof, revolving field
Stator 2/3 pitch
Rotor Direct coupled, flexible disc
Insulation system class H
Standard temperature rise 120 ºC (248 F) Standby
Exciter Torque match (shunt) with PMG as option
AC waveform Total Harmonic Distortion < 5% no load to full linear load, < 3% for any single harmonic

Remember when selecting a diesel generator avoid extreme oversizing.  For proper performance you need to be able to achieve more than 30% of full load rating on a regular basis.  Otherwise you risk wet-stack problems and other issues.















Item Number: C20D6
Price: $16,078
Price last updated 12/8/2023
Shipping Weight: 1200 lbs.
This item normally ships in approximately 16-20 weeks or less.
If not paying by credit card contact NoOutage before placing order.
