KIT30216V
(KIT30216V-25)
DISCONTINUED - ORDER SIMILAR 31406CRK
click on thumbnail
image above to enlarge
Manual Transfer Switch
surface mount, 6-circuits, with inlet box & cord
30A, 120/240V, 7500W max

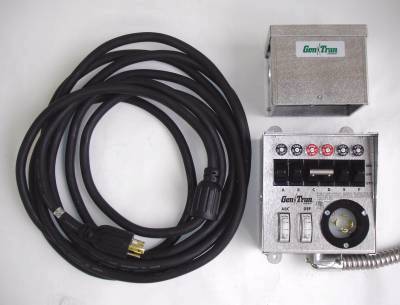

Includes Model 30216V transfer switch, aluminum power inlet box enclosure (remove inlet from transfer switch and remount in this inlet box), and 25 foot 10 gauge 4-wire cord with L14-30 male and female ends.
Easy to install and operate, connects portable generator to residential load center. Allows manual transfer of individual loads to prevent overloading generator. Each individual circuit can be transferred separately and only as needed. Transfer switches are required by National Electric Code to prevent inadvertent backfeeding of electric power from generator into utility system which can be a safety hazard.
6 single-pole 120 volt circuits or 4 single-pole 120 volt circuits plus 1 double-pole 240 volt circuit, 15 amps maximum per circuit, 60 amps maximum combined load at 125 volts or 30 amps maximum combined load at 250 volts. Each circuit provided with non-defeatible (break-before-make) double throw switch protected with a resettable circuit breaker. Twist lock male L1430P power inlet receptacle for cable connection to generator, 7500 watt maximum. Can also be hard-wired to a remotely mounted generator inlet box. (Knockouts provided in side walls of switch with an inlet cover for use when hard-wiring to generator.) Dual watt meters provided for monitoring and balancing generator load. The 3/4 x 18 inch flexible conduit is pre-wired for easy connection to existing residential load center panel. Installs in less than an hour, without pulling the electric meter or installing a sub-panel. Suitable only for circuits protected with up to 20 amp breakers or fuses. Manufactured from UL listed and UL Recognized components but does not carry the UL Listing label. NEMA 1 indoor surface mount enclosure. See Gen/Tran® Instruction Book for similar switches. This switch is made from UL Listed components but not UL Listed as an assembly. Made in USA
Specifications
| Total Capacity | 7500 watts, 30 amps |
| Single Pole Circuits - 120VAC | (4) 15 amp |
| Double Pole Circuits - 240VAC | (1) 20 amp with handle tie |
| Generator Connection | NEMA L1430P male inlet plug-in |
| Generator Load Watt Meters | Yes |
| Enclosure Type | indoor surface mounted |
| Convenience Receptacle | No |
| Design Standard | Designed and manufactured to the former UL98 standard. |
| Short Circuit Withstand Rating | 1,000 amps |
