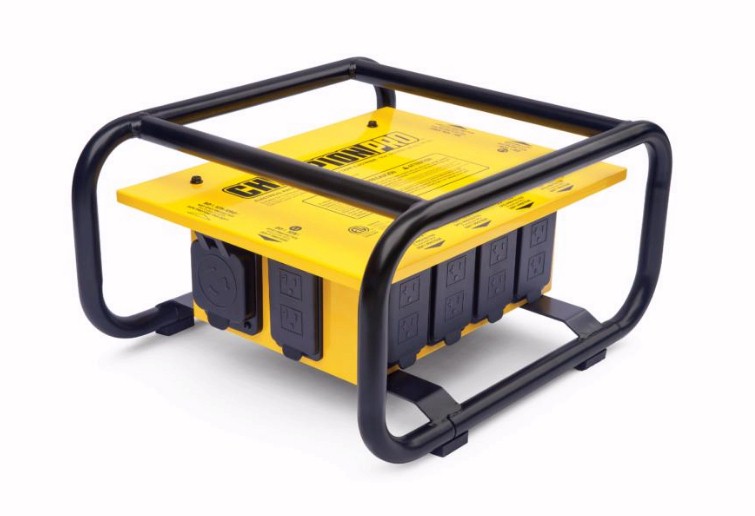

Portable Power Distribution System
50 amp 120/240V Outdoor

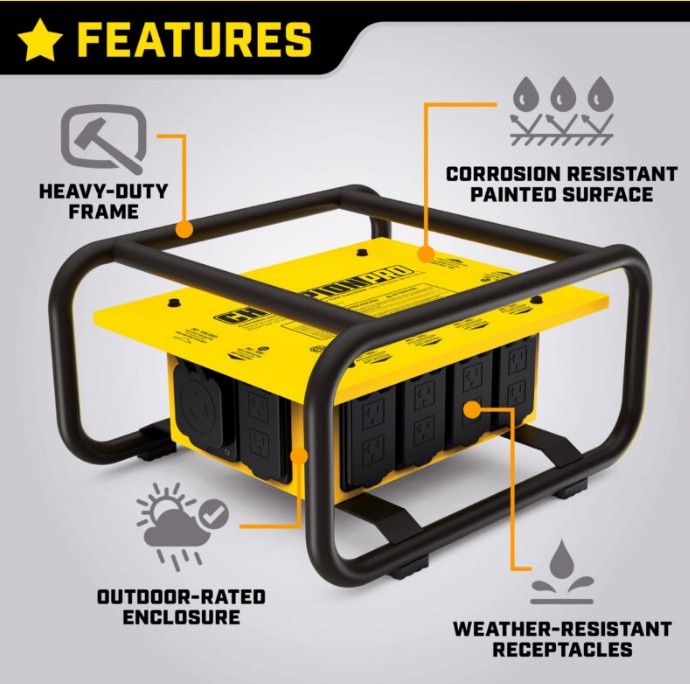

7 Output Receptacles plus 2 adaptersThe Champion Power Distribution Box boasts a heavy-duty steel frame and a powder-coated finish that ensures durability and longevity. It features (6) six 120V GFCI-protected duplex outlets (5-20R) and (1) one 120/240V twist-lock outlet (L14-30R). Also included are 120V 30A (L14-30P X TT-30R) and 120/240V 50A (L14-30P X 14-50R) RV adapters, giving you a variety of options for your power needs. With a total of 50 amps of power, this distribution box can handle heavy loads with ease.

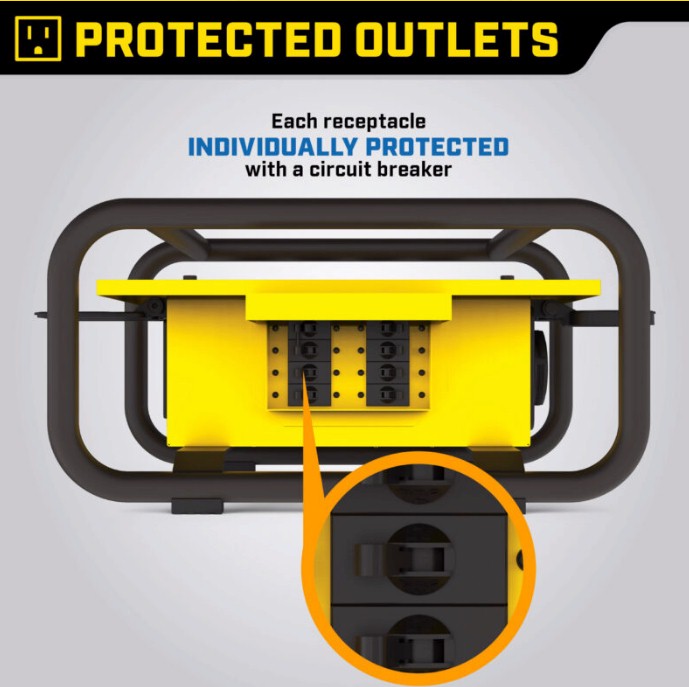

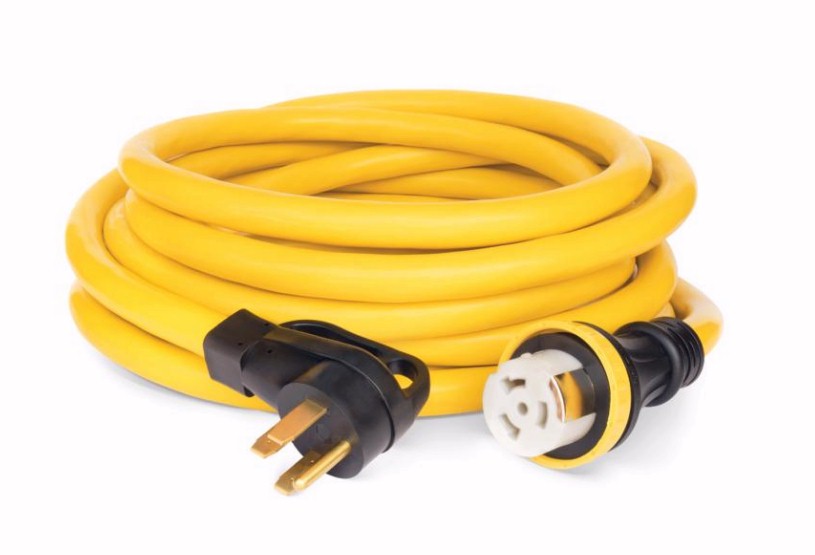

The inlet power source can be a 125/250V, 50A maximum generator (with 14-50R receptacle) or utility. Use a Champion 30 ft. 50A 125/250V power cord (model 100828, not included) or equivalent, plug into any 125/250V 50A maximum generator or utility (power source) and then into the power inlet plug (50A 120/240V, SS2-50P) on the Power Distribution Box. The power inlet feeds a split-phase circuit breaker with (6) six 1-pole 20A circuit breakers and (1) one 2-pole 30A circuit breaker.
Designed with safety in mind, the Champion Power Distribution Box is equipped with a built-in surge protector, circuit breaker protection, and a locking safety door to keep your connections secure. The box also includes a hinged cover that provides protection from the elements when not in use.
The Champion Power Distribution Box is easy to transport and set up, thanks to its compact design and convenient carry handle. Whether you need to power multiple tools on a job site, run appliances during a power outage, or supply electricity to an outdoor event, Champion’s got you covered.
Invest in this power distribution box with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 1-year limited warranty and FREE lifetime technical support.
Specs
| Parameter |
Ratings |
Configuration |
| Base Unit | 50 amp, 120/240V, 1 phase 4 wire, outdoor | |
| Input Module | 50 amp, 120/240V, locking inlet, CS6375 | CS6375 (NEMA SS2-50P) |
| Output Module 1 | 30 amp, 120/240V, locking, (1) NEMA
L14-30R with 30A 2P breaker protection |
L14-30R |
| Output Modules 2-7 | 20 amp, 120V, straight blade, (4) NEMA 5-20R with breaker and GFI protection |
5-20R |

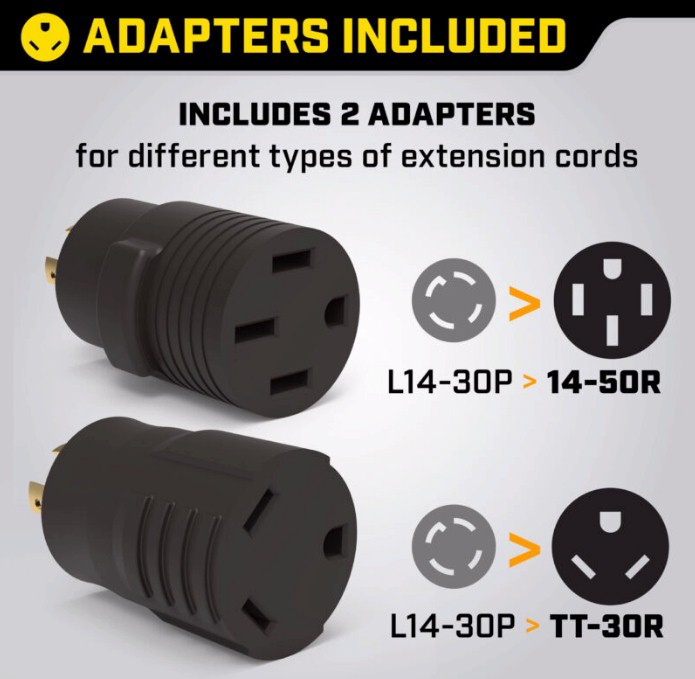

| adapter 1 | Converts (1)NEMA L14-30P to NEMA 14-50R 50A straight-blade | 14-50R |
| adapter 2 | Converts (1)NEMA L14-30P to NEMA TT-30R 30A RV outlet | TT-30R |
Ordering Table
Champion is beginning to charge sales tax for drop shipments to a growing list of US states. We will add this tax to your order if it is not already shown by our shopping cart.
| Portable Distribution Unit |
Input Cord |
Item Number: 201174 Price: $431 Price last updated 12/12/2024 Shipping Weight: 22 lbs. This item ships with free ground freight to the USA 48 states. This item normally ships in approximately 1 week or less. |
Item Number: 100828 Price: $191 Price last updated 12/12/2024 Shipping Weight: 24 lbs. This item ships with free ground freight to the USA 48 states. This item normally ships in approximately 1 week or less. |
