75FPTOC-4, 75FPTOC-17

Click thumbnail image above to enlarge

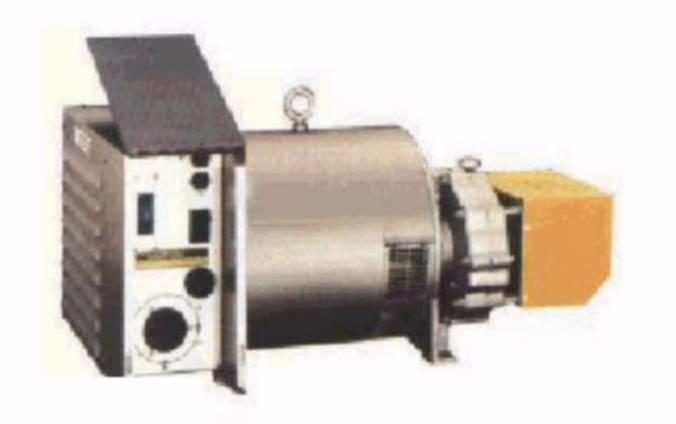

Power Take-Off Generator
75kW 3-phase, 1000 rpm pto

Winco Tractor Driven Alternators provide electrical power for a variety of farm or remote location electrical systems and equip-ment. Winco has been providing quality standby electrical systems for worldwide use since 1926.  Ruggedly built for truly dependable emergency standby and portable power, Winco has several models to choose from - single and three phase models with self regulation which automatically adjusts voltage to match the load.



FEATURES

* Operates at a slow 1800 RPM
* Heavy duty construction
* Three year limited warranty
* Circuit breakers
* Convenience power outlets
* Shielded PTO shaft



SPECIFICATIONS

TYPE
AC, 4-pole revolving armature, statically excited and regulated. Drip proof control box. External grounding lug.

EXCITATION
Rotating field brush type.

COLLECTOR RING BRUSHES
Metal graphite with constant-pressure, self adjusting springs.

OPERATING SPEED
Generator rotates at a slow 1800RPM.

LIMITED THREE-YEAR WARRANTY
Three year warranty covers entire alternator against defects in material and workmanship under normal use and service. After 1 year, factory repair and reconditioning service is available at cost of labor within 3 years of purchase date. Detailed warranty certificate enclosed with each alternator; sample copy available upon request.





Accessories (order separately)

* 1000 rpm pto shaft is fully guarded for safety.

* Two-wheel transport offers heavy gauge hitch that can handle the rigors of
   generator operation.  Heavy 10 gauge deck allows room for accessories or tool box.



Specs

Model 75FPTOC (3 phase)
Rated AC Power 75 kW
AC Current @ 1.0 pf 208 amps @ 208V 3ph
180 amps @ 240V 3ph
90 amps @ 480V 3ph
Rated Voltage 120/208 V, 3 phase
120/240 V, 3 phase
277/480 V, 3 phase
Voltage Regulation 10%
Output Circuit Breakers yes
Receptacles at 120V (qty) (2) NEMA 5-15R (on 208V gen only)
Receptacles at 240V (qty) (1) NEMA 6-50R (on 208V gen only)
(1) full power modular
plug included for this receptacle
PTO Speed 1000 rpm
Minimum Tractor PTO shaft hp Required for Rated Output 150 *
Motor Starting Capability 40 hp (code G)
Dimensions (L x W x H) 44 x 23 x 20 inches
Manufacturer's Warranty 3/1 year

* A lower PTO shaft hp rating is acceptable but electrical output will be proportionally less.

   Concerning use in Canada, this product is built from CSA certified components (with the exception of the
   alternator end) but is not CSA certified as a complete assembly.  Therfore, it cannot be used on construction
   sites in Canada.  But it is normally acceptable for residential and farm use.



Customers who purchased this product also ordered:
(click underlined words to see product pages)
Shielded Universal PTO Shaft, spline both ends use 54961
Two-wheel Transport with for off-highway use 97100
Transfer switch 3-phase 200A 7805/7815 or 400A 7806/7816 (large enough to install High Capacity Inlet Kit on side)
High Capacity Power Inlet Kit
300134.
Welding Cable

120/208V 3-phase 120/240V 3-phase 277/480V 3-phase
not available
