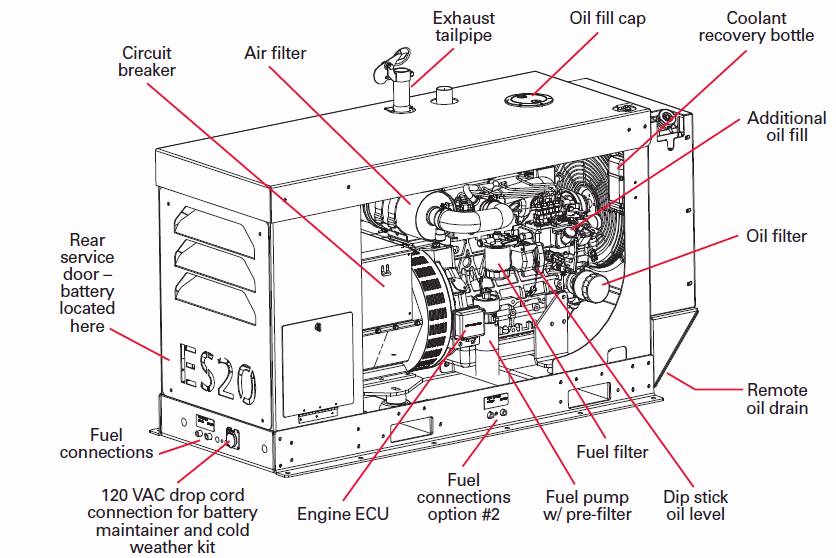

| open genset | enclosed genset | components detail | specs |
| click thumbnail images above to enlarge | |||
Page last updated Oct 20, 2021 @ 10:42pm
ES10020
|
|
|
|
| open genset | enclosed genset | components detail | specs |
| click thumbnail images above to enlarge | |||
Kubota Generator Set
Automatic Standby Diesel
20,000 Watts rated
120/240Vac single phase
Quality Kubota automatic standby generators are perfect for home and small commercial backup power. You will appreciate the ease of installation and low maintenance of this series 100 genset. All units are designed and engineered with commercial grade components to ensure excellent performance, long life and reliability.
Designed for unlimited emergency power usage (limited to 100 hours annually for non-emergency and maintenance use)
Compliant with EPA Emergency Stationary ICE Standards
Rugged, heavy duty design and construction for dependable performance and long product life
Quiet and smooth running
Easy installation hook-ups
Standard Features
2-Wire Start Capable
On Board Block Heater
On Board Battery and cables provided
One side service for Ease of Maintenance
Easy Fuel Hook up
Remote oil drain
High Capacity bar and Plate Radiator
2 Step powder coated enclosure
On Board battery maintainer
These generators are designed for unlimited emergency power usage, and limited to 100 hours per year for non-emergency and maintenance use. EPA regulations require permanent installation in a stationary location. These units may not be used in mobile applications.
Specifications
| Model Number | ES10020 | ES10040 | ||
| Electrical Power Output | 20.0kW standby 18.2kW cont. |
40kW standby 36kW cont. |
||
| Voltage (single phase) | 120/240Vac | 120/240Vac | ||
| Cont. Current (Amps at 120/240) | 152 / 76 | |||
| Engine | Kubota V2203BG |
|||
| Fuel Consump. @ 25/50/100% (gph) | 0.61/0.97/1.58 | |||
| Dimensions, L x W x H (inches) | 58 x 27 x 38 | |||
| Weight - including oil & coolant (lbs) | 1,278 |
NOTES:
All unit ratings are established at 1.0 power factor, 68 F and 500 ft. above sea level. De-rate unit by 3.5% for every 1000 ft. above 500 ft. and 1% for every 10 F above 68 F. Specifi cations subject to change without notice.
Weight listed is without tank.
10kw 15kW
Item Number: ES10020
Price: $16,629
Price last updated 12/8/2023
Shipping Weight: 1278 lbs.
This item normally ships in approximately 8-12 weeks or less.
If not paying by credit card contact NoOutage before placing order.
