True Sine Wave Inverter
1200-4200W, 12-24-48Vdc
with integral battery charger & transfer relay
(for mobile, off-grid and grid backup applications)

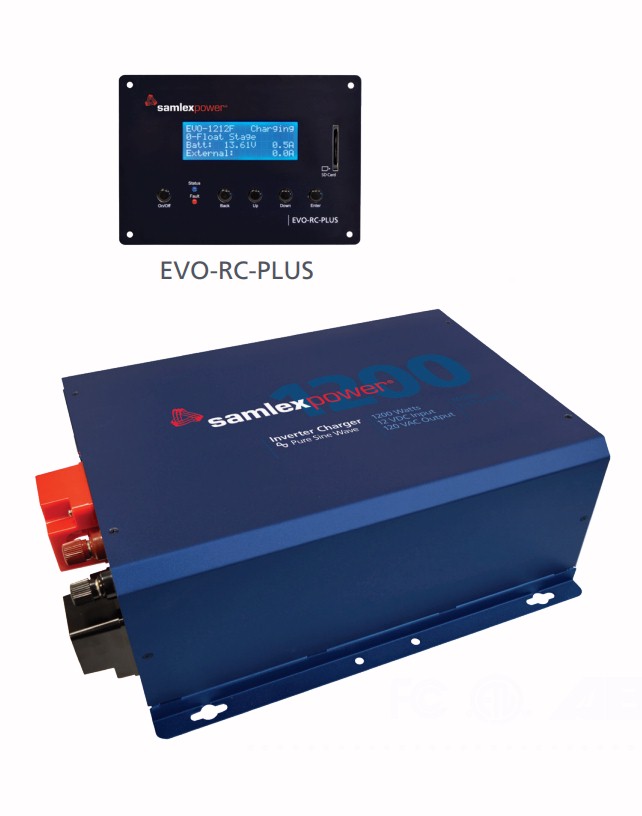

EVO Pure Sine Wave
Inverter/Charger
Pure sine wave inverter, adaptive battery charger, transfer relay – All in ONE unit. Samlex Evolution™ Series inverter/chargers provide reliable AC power wherever it’s needed. For use with boats, RVs, cabins and specialty vehicles, as well as alternative energy, back-up and emergency power applications.
Using state-of-the-art technology, the Samlex EVO™ inverter/charger operates at 165 million instructions per second with lightning fast load & response times, has 9 points of physical protection monitoring (being scanned up to 10,000 times per second) to detect fault conditions & protect itself in a vast range of adverse environments.
It intelligently integrates a 4 stage Battery Charger and an AC Transfer Relay into an advanced and affordable off-grid power solution.
The charger has 7 types of charging profiles to cover Lead Acid, Lithium & Nickel-Zinc types of batteries:
(i) Three, 3-Stage Profiles (with Adaptive Control)
(ii) Three, 2-Stage Profiles
(iii) One, 4-Stage Equalization Profile (Adaptive Control)
Temperature compensation with battery sensor included.
Models available in 12V, 24V and 48V DC input, and 120 VAC or 230 VAC output.
Very detailed and informative 100+ page instruction manual comes with each EVO
series inverter/charger and North American tech support is easy to reach.
EVO series products are currently manufactured in Taiwan.
EVO-RC-PLUS remote control sold separately
View real-time activity on the alpha numeric LCD display with 4 rows of 20 character while the unit is operating: Output voltage, Frequency, Amps, Watts, Volt Amps, Power Factor, Battery Voltage, Battery Current, Solar Input Current and more.
The remote must be used to program inverter and battery charging parameters. Save a parameter set on a removable 32GB SD Card (the SD card slot located on the remote face of the EVO-RC-PLUS). Then transfer the saved parameters to other EVO™ inverter/chargers.
Data log historic power consumption, inverter functionality, battery charging activity, faults and all of the conditions leading up to them. Analyze trends for more efficient use of off-grid resources..
3 Year Limited Warranty.
DC cable length and voltage drop must be evaluated carefully when laying out system. Click here for our simple voltage drop calculator.
Specs
| Model | EVO-1212F EVO-1224F |
EVO-2212 EVO-2224 |
EVO-3012 | EVO-4024 | EVO-4248SP |
| Nominal Input Voltage | 12Vdc 24Vdc |
12Vdc 24Vdc |
12Vdc | 24Vdc | 48Vdc |
| Power Rating (continuous) | 1200W | 2200VA | 3000VA | 2800VA | 3500VA |
| Surge Rating (0.1 sec) | 200% | 200% | 200% | 200% | 200% |
| Overload Rating (30 sec) | 150% | 140% | 140% | 140% | 150% |
| AC Output voltage/Frequency | 120Vac +5%, 60 Hz | 120/240Vac +5%, 60 Hz | |||
| No Load Power Consump. | 8W or <20W | <8W or <30W | <8W or <30W | <8W or <30W | <8W or <30W |
| Peak Inverter Efficiency | 89% 91% |
90% 93% |
90% | 94% | 92% |
| Typical AC Output Harmonic Distortion | <5% | ||||
| Relay Transfer Time (Synchronized transfer at zero crossing) |
18
ms
max to inverter 1 ms from inverter |
||||
| Internal Charger Output | 60Adc 40Adc |
100Adc 70Adc |
130Adc | 110Adc | 60Adc |
| Operating Temperature | -20° C to 60° C (-4° F to 140° F) | ||||
| Warranty | 3 years in US and Canada | ||||
| Weight | 39 lbs | 59 lbs | 64 lbs | 64 lbs | 64 lbs |
Customers who purchased this product also ordered:
(click underlined words to see product pages)
EVO-RC-PLUS Remote Control Panel (below)
| 1200W 12VDC WITH RECEPTACLES Item Number: EVO-1212F Price: $1,106 Price last updated 10/1/2023 Shipping Weight: 39 lbs. This item normally ships in approximately 1-2 weeks or less. |
2200W 12VDC Item Number: EVO-2212 Price: $1,948 Price last updated 10/1/2023 Shipping Weight: 59 lbs. This item normally ships in approximately 1-2 weeks or less. |
|
| 1200W 12VDC HARD WIRED Item Number: EVO-1212F-HW Price: $1,055 Price last updated 10/1/2023 Shipping Weight: 39 lbs. This item normally ships in approximately 1-2 weeks or less. |
2200W 24VDC Item Number: EVO-2224 Price: $2,043 Price last updated 10/1/2023 Shipping Weight: 57 lbs. This item normally ships in approximately 1-2 weeks or less. |
|
| 1200W 24VDC WITH RECEPTACLES Item Number: EVO-1224F Price: $1,106 Price last updated 10/1/2023 Shipping Weight: 39 lbs. This item normally ships in approximately 1-2 weeks or less. |
3000W 12VDC Item Number: EVO-3012 Price: $2,291 Price last updated 10/1/2023 Shipping Weight: 64 lbs. This item normally ships in approximately 1-2 weeks or less. |
|
| 1200W 24VDC HARD WIRED Item Number: EVO-1224F-HW Price: $1,106 Price last updated 10/1/2023 Shipping Weight: 39 lbs. This item normally ships in approximately 1-2 weeks or less. |
4000W 24VDC Item Number: EVO-4024 Price: $2,392 Price last updated 10/1/2023 Shipping Weight: 64 lbs. This item normally ships in approximately 1-2 weeks or less. |
|
| REMOTE CONTROL PANEL Item Number: EVO-RC-PLUS Price: $189 Price last updated 10/1/2023 Shipping Weight: 64 lbs. This item normally ships in approximately 1-2 weeks or less. |
4200W 48VDC 120/240VAC Item Number: EVO-4248SP Price: $2,004 Price last updated 10/1/2023 Shipping Weight: 64 lbs. This item normally ships in approximately 1-2 weeks or less. |
