MGW501S1P1
Click on thumbnail
image above to enlarge

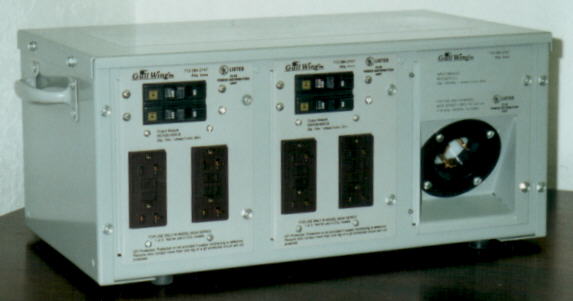

Portable Power Distribution System
50 amp Indoor, 2 Output ModulesBring the power to the job rather than taking the job site to the power pole or generator. Portable power distribution unit or "Spider Box" with one input and up to five output modules. Rugged heavy duty steel construction but easy to handle. Weighs only 20 to 40 pounds. Dimensions 20"L x 10"D x 8"H. Powder coat painted. Modules can be changed in the field. Three modules are located on the front and three on the back. These are manufactured by Gull Wing Industries which supplies nearly all the portable distribution units for the carnival industry nationwide. All units are preassembled and tested at the factory and are UL and cUL Listed. Made in USA
Specs
Parameter | Ratings | Part Number |
Base Unit | 50 amp, 120/240V, 1 phase 4 wire, indoor | MGW501-1BASE |
Input Module | 50 amp, 120/240V, locking inlet, CS6375 | MICS6375SL |
Output Module 1 | 20 amp, 120V, straight blade, (4) NEMA 5-20 with breaker and GFI protection |
MO520DDGB |
Output Module 2 | 20 amp, 120V, straight blade, (4) NEMA 5-20 with breaker and GFI protection |
MO520DDGB |
Output Module 3 | Blank | AMODBLK |
Output Module 4 | Blank | AMODBLK |
Output Module 5 | Blank | AMODBLK |
Item Number: MGW501S1P1
Price: $792
Price last updated 05/13/2015
Shipping Weight: 25 lbs.
This item normally ships in approximately 4 weeks or less.
