PWA-CCB-04

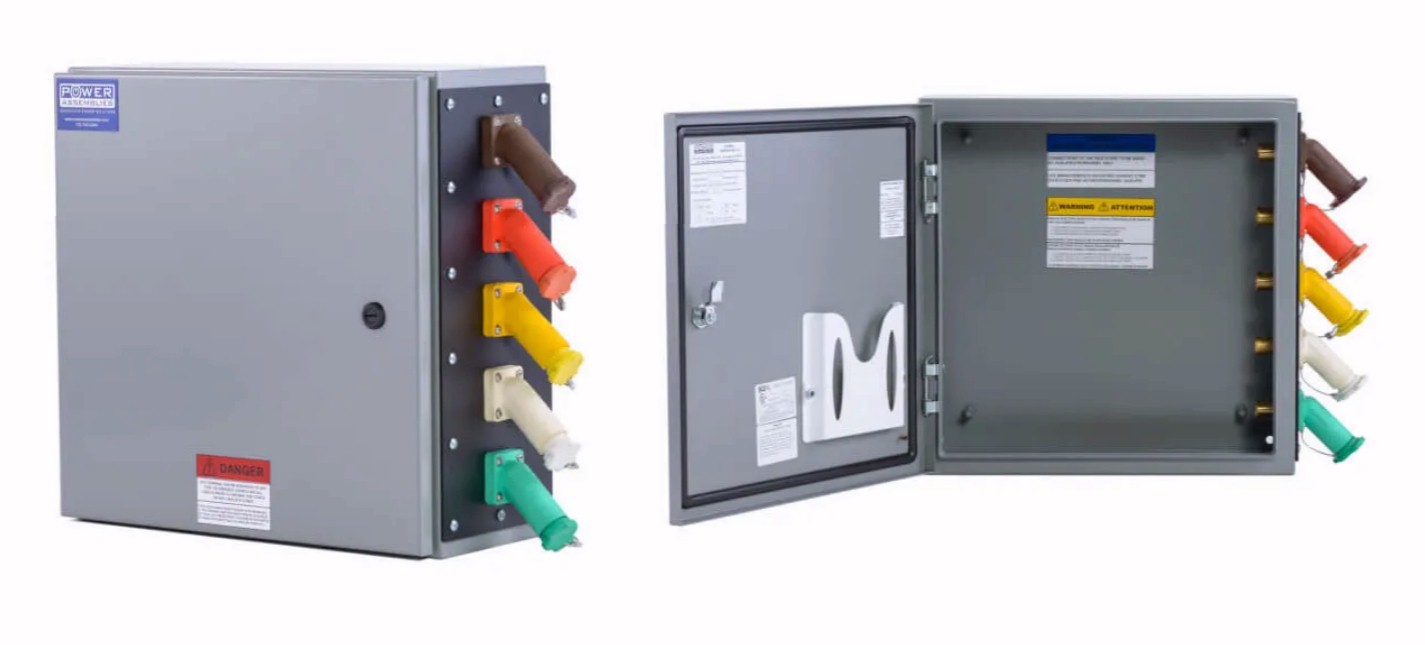

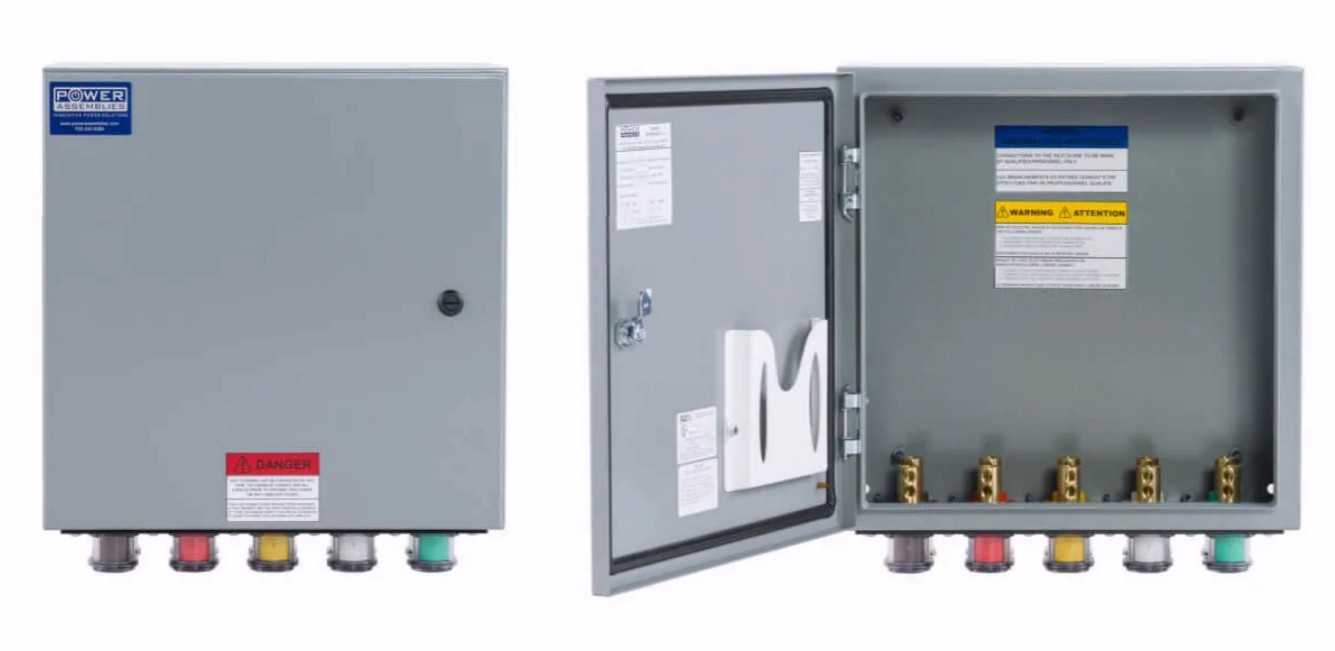

Cams on bottom Cams on side Literature
click on thumbnail image above to enlarge


click on thumbnail image above to enlarge

CAM Lock Connection Box
400 Amp, NEMA 3R Enclosure

Need an easier way of temporarily connecting a generator larger than 200 Amps? Here is the solution: a line of Cam Lock Connection Boxes that provide the ease and speed of industry-standard Series 16 CAM connectors.

Now you can have this type of quick connection system in a wide range of applications, pre-assembled in a NEMA 3R outdoor enclosure. CAM Lock connector covers are included. 90 deg CAM Lock connectors come with clear snapback cover and 45 deg CAM Lock connectors come with caps and lanyards. Available in 400A and 800A ratings.  Made in USA

APPLICATIONS
    * Portable Power
    * Temporary Power
    * Generator Connections

CHOICES

AMPERAGE
  • 400A
  • 800A
CAM ANGLE
  • 45 Degree
  • 90 Degree
CAM GENDER
  • Male
  • Female
CAM ENCLOSURE MOUNTING POSITION
  • Bottom
  • Right
CAM REVERSE GENDER
  • Reverse Ground and Neutral
  • Reverse Ground
  • No Reverse
VOLTAGE
  • 120/240V
  • 120V
  • 120/208V
  • 208V
  • 277/480V
  • 347/600V
  • 480V
  • 600V
WIRES
  • 3 wire
  • 4 wire
CONNECTION TYPE
  • Double Set Screw
  • Threaded Post

Enclosure is 20"H x 20"W x 8"D ANSI-61 gray powder coated 0.075 carbon steel for long life and corrosion resistance.

Customers who purchased this product also ordered:
(click underlined words to see product pages)

CAM Lock cable sets










Item Number: PWA-CCB-04
Price: $1,007
Price last updated 8/5/2023
Shipping Weight: 50 lbs.
This item normally ships in approximately 2-3 weeks or less.
