TG350AMF

DISCONTINUED BY MANUFACTURER
HOWEVER THE STANDARD TG350 IS STILL AVAILABLE HERE

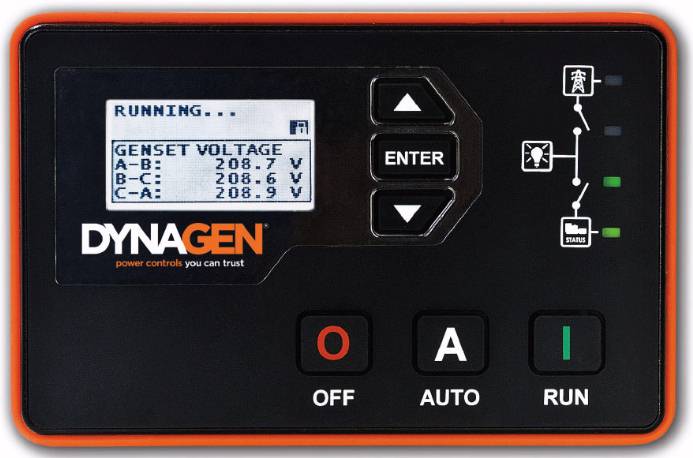

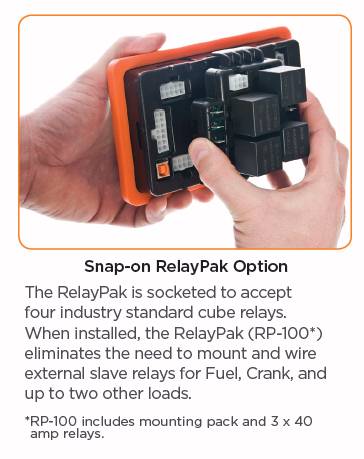

front view plug-on relay pak typical connections without relay pack typical connections with relay pack spec brochure user manual

click thumbnail image above to enlarge

Generator Auto Start & ATS Control
by DynaGen

(program using display, web or PC software and standard USB cable)



Standard or Electronic Engines

This controller can be used with "dumb" automatic transfer switches that have no internal controller.

The TOUGH series controllers are designed to provide complete control, protection and engine instrumentation for both standard and electronic engines. The module is easily configured using either the front panel buttons or our PC configurator software. TOUGH series controllers are ideally suited for severe duty applications where reliability is critical such as engine-powered pumps and industrial compressors. UL/CUL Listed.  Made in Canada.

Displays:
  • Oil Pressure
  • Engine Temperature
  • Fuel Level
  • Oil Level
  • Hour Meter
  • RPM
  • Real time clock display with time/date
  • AC Volts and Hertz
  • Battery Voltage
  • J1939 DTC codes with custom text
  • Two customer defined parameters
    (temperature, pressure, voltage, levels)
Features and Functions:
  • SAE J1939 CANbus Protocol
  • RPM via J1939, Magnetic pick-up, or Generator output
  • Speed control offset adjustment electronic engines
  • Autostart on Low Battery and other sensors
  • Trim feature for AC Voltage inputs and sensors
  • Maintenance counter
  • Exerciser Clock
  • 100 Event Log
  • Conformally coated for protection against moisture and contaminants
  • Gasket for water ingress protection to IP65
  • Free PC Configurator Software
  • Fast and rugged installation clips
  • Passcode protected
  • Automatic shutdowns and warnings
  • Manual and remote start
  • Momentary start and momentary stop inputs
  • Pre-heat and many configurable timers
  • Accepts common senders (VDO, Datcon, Murphy, and more)
  • Custom senders configurable with PC software
  • 5-Year Warranty
Front Panel or PC Configurable

The TOUGH series can be programmed manually via front panel buttons or with our easy-to-use PC configurator software that provides customization of screen messages, sender selections, control settings, and much more. The PC configurator uses a standard USB cable with no special programmer required.



View the connection diagram thumbnail above to identify the connectors and harnesses before ordering.



THIS TG350AMF HAS BEEN DISCONTINUED BY THE MANUFACTURER.
However, the similar standard TG350 controller is still available. They both have all the same engine starting, monitoring and protection functions. However, the -AMF version also included Voltage monitoring of the utility power source and could be used to control an automatic transfer switch. The standard TG350 does not have this capability. Most automatic transfer switches already come with their own internal controller and so the -AMF function on the engine controller is not needed. Click this link to view or order the standard TG350.
