1-TWA-20-03
view sketch
parts
click thumbnail image above to enlarge
Tower Hardware Kit
for AIR Marine Generators
(turbine, mast and stay pipes not included - order separately)

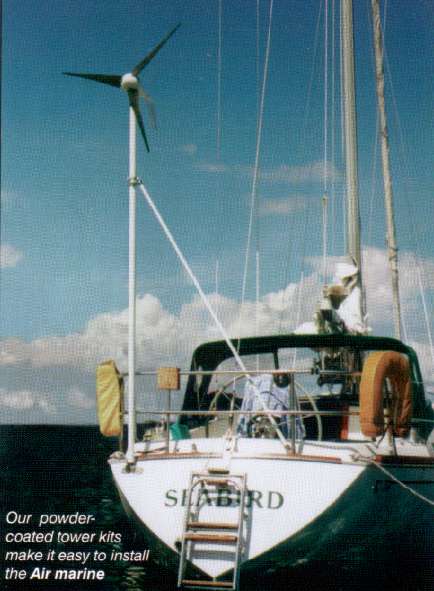

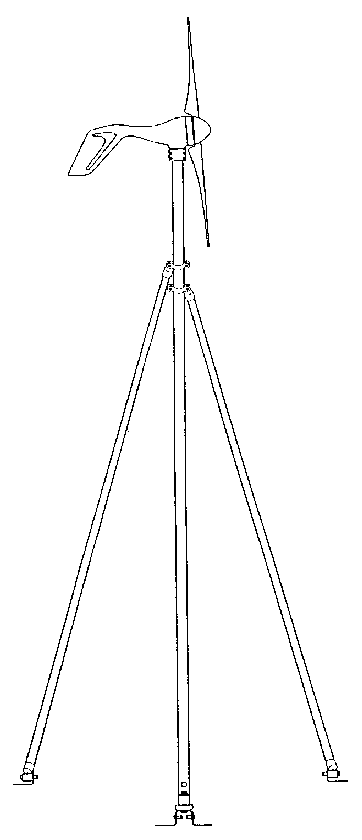

Tower hardware kit for AIR Marine grade wind generators. AIR Marine Tower Kits are designed for easy installation of the AIR Marine generators. The tower features built-in vibration reduction and all stainless steel hardware. The mast sets come either white powder-coated aluminum or stainless steel. Purchase both a Mast Set and a Hardware Kit for a complete tower, or just the Hardware Kit if you are supplying your own mast and stays.

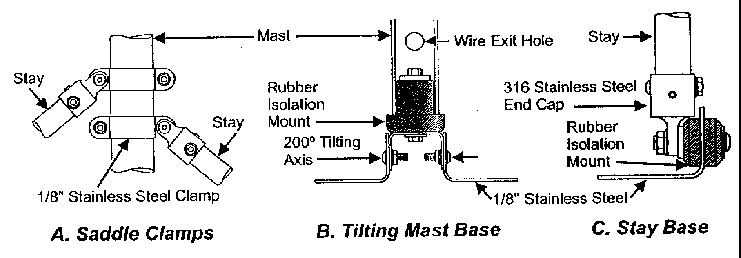

All stainless steel hardware with self-locking nuts.
Tilting mast base for easy installation and access.
Fully adjustable stay anchor base mounts.
Specially designed built-in vibration dampening mounts to minimize noise transmission.
Can be installed on transom or deck in a few hours.
Designed to withstand hurricane force winds.
Pipe requirements are as follows: Use a 1-1/2" schedule 40 pipe with a 1.9" outside diameter for the mast and two 1" diameter pipes for the stays. Hardware designed for all 9 foot long pipes.
Item Number: 1-TWA-20-03
Price: $293
Price last updated 2/27/2017
Shipping Weight: 5 lbs. - dimensions 6x6x7 inches
This item normally ships in approximately 1 week or less.
