XC Xtreme Cooling
Portable Air Conditioners

click on thumbnail
image above to enlarge

Portable Air Conditioner
for rooms with electronics
13,200 21,000 29,000 Btu/hr



The Xtreme Cooling (XC) is designed to provide cooling for rooms filled with heat generating electronics.  Networks, computers, communications and office equipment will shut down when temperatures increase.  The heat generated by this vital equipment can cause numerous problems, including reduced lifespan, reduced reliability, and a slower network. A general rule with electronics is that every 10C temperature rise in nominal temperatures produces a 50 percent reduction in life and reduced long-term reliability of equipment.  XC portable cooling provides cost effective spot cooling in just the area that needs it.  XC installs in minutes - just plug it in and turn it on.

XC is also an ideal option to cool "hot spots" within a conditioned room, or as a temporary alternative or emergency backup for the planned or unexpected shutdown of a building's A/C system.

FEATURES



Performance Specs

Model XC-14A XC-22A XC-30A
Cooling Capacity 13,200 Btu/h 21,000 Btu/h 29,000 Btu/h
Voltage Requirement 115 VAC 208/230 VAC 208/230 VAC
Current 11.5 amps 11.0/10.0 amps 15.0/14.0 amps
Power Consumption 1.4 kW 2.3 kW 3.1 kW
Power Cord Length 10 feet 10 feet 10 feet
NEMA Plug Configuration 5-15P 6-15P 6-20P
Air Flow Evaporator (High/Low)
357/285 cfm
(High/Low)
464/393 cfm
(High/Low)
571/500 cfm
Air Flow Condenser 610 cfm 857 cfm 1142 cfm
Condensate Tank Capacity 3 gallons 3 gallons 3 gallons
Dimensions (WxDxH) 17.5 x 19.9 x 43.3 inches 22.0 x 24.4 x 50.4 inches 22.0 x 24.4 x 50.4 inches
Net Weight 132 lbs. 198 lbs. 209 lbs.



Ordering Table - Units & Accessories

(click)
Model No. Description Price
$ US
Add to Shopping Cart

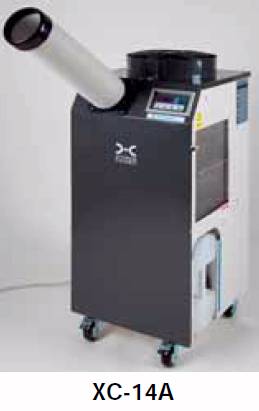

XtremePwr-XC14A.jpg (10024 bytes) XC-14A Portable Cooling Unit - 120Vac, 13200 Btu/hr, NEMA 5-15P plug cord

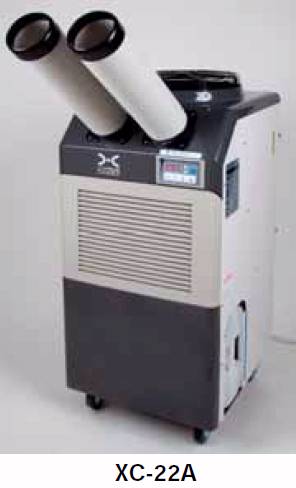

XtremePwr-XC22A.jpg (15019 bytes) XC-22A Portable Cooling Unit - 208/230Vac, 21000 Btu/hr, NEMA 6-15P plug cord
XtremePwr-XC30A.jpg (18867 bytes) XC-30A Portable Cooling Unit - 208/230Vac, 29000 Btu/hr, NEMA 6-20P plug cord

    Accessories

for XC-14A

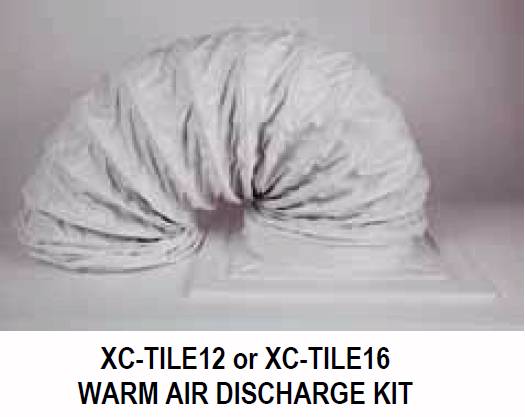

Warm Air Discharge Kit - provides easy removal of heat from condenser discharge into building return plenum through 2' x 2' ceiling tile and 12" x 8' flex duct (both included)
for XC-22A & XC-30A
Warm Air Discharge Kit - provides easy removal of heat from condenser discharge into building return plenum through 2' x 2' ceiling tile and 16" x 8' flex duct (both included)
for XC-14A

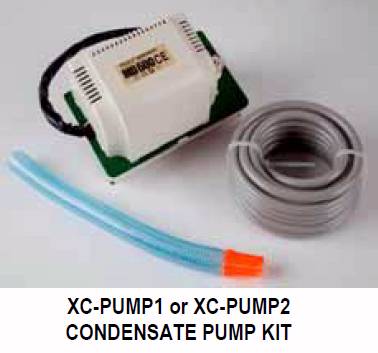

Condensate Pump Kit - use when emptying the standard tank is not convenient.  Sends condensate to sink, drain line or larger reservoir via 20' tubing (included).  Shuts off XC automatically on high level.
for XC-22A & XC-30A
Condensate Pump Kit - use when emptying the standard tank is not convenient.  Sends condensate to sink, drain line or larger reservoir via 20' tubing (included).  Shuts off XC automatically on high level.
for XC-14A

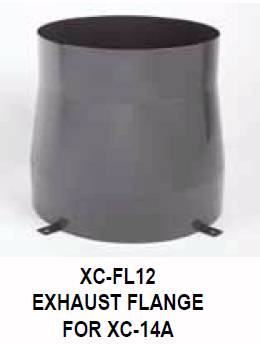

Exhaust Flange - use when warm air discharge kit is not practical.  Allows use of 12" flex duct.
for XC-22A & XC-30A

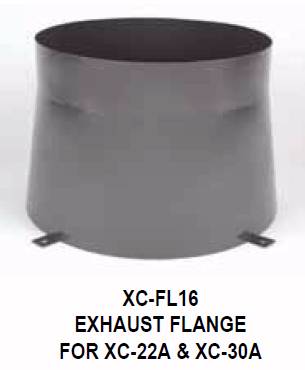

Exhaust Flange - use when warm air discharge kit is not practical.  Allows use of 16" flex duct.
for XC-14A

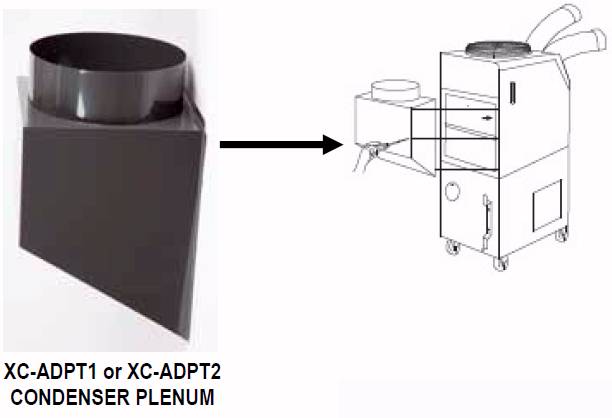

Condenser Plenum - use when air for the condenser is needed from a different location to prevent a vacuum from forming in a small room.  Often used with the warm air discharge kit.  For 12" duct.
for XC-22A & XC-30A
Condenser Plenum - use when air for the condenser is needed from a different location to prevent a vacuum from forming in a small room.  Often used with the warm air discharge kit.  For 16" duct.
