Xtreme P90L
Online UPS Systems

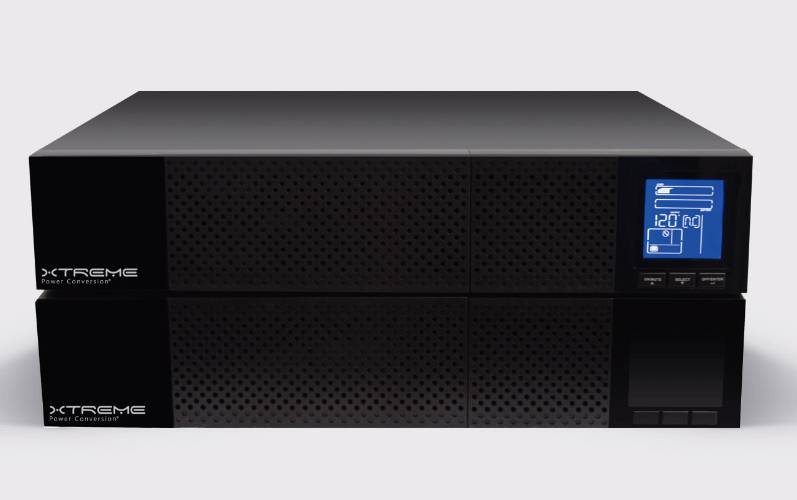

Click thumbnail image above to enlarge

P90L Series UPS System
1250-10000VA/1125-9000W, 120Vac
tower/rack mounting model



P90L 1.25-10kVA Online UPS

Online UPS with a powerful charger for extended battery runtimes with rapid recharge

The P90L is a true online UPS with an internal high capacity charger for connection to matching extended battery packs or large external systems.

P90L-6K and 10K models are available with optional galvanic isolation transformers providing complete common mode noise protection and 240/120 output.

P90L-6K and 10K paralleling details and options available. See 6K &10K brochure.

FEATURES

  • 0.9 output power factor—
    P90L systems provide more real capacity for high density loads.
  • 98% efficient operation—
    high efficiency ECO mode lowers energy consumption
  • Smart LCD display—
    vital monitoring and precise information from the front panel
  • Frequency converter—
    P90L can be programmed to convert from 50Hz to 60Hz or 60Hz to 50Hz
  • Hot swappable battery—
    P90L optional battery packs are easy to replace without interrupting the load
  • Multiple communications capability—
    RS-232, USB, Web/SNMP, and optional AS400/dry contact
  • Load shedding capabilities—
    P90L-1500, 2000, and 3000 models maximize uptime for critical loads and equipment by shedding less critical loads
  • Extended runtimes—
    P90L can be connected with large external battery systems or optional matching battery packs
  • $50,000 load protection policy—
    protection against damaged connected equipment

PRODUCT SNAPSHOT

  • Available models: P90L-1500, 2000, 3000, 6K, and 10K
  • Charger capacities up to 1.1kW
  • Tower, 2-post, and 4-post rack mounting configurations available
  • UL, cUL, FCC, RoHS
  • 3 years electronics, 3 years battery warranty.



UPS Systems
cart data not found

Item
Number

Description

VA/Watts

 AC
Voltage		 Mounting Price
$ US		 Add to Shopping Cart
P90L-1500

UPS - P90L series, 120V 50/60Hz, 246W charger

 1250/1125 120V pure sine rack ?
cart data not found

P90L-2000

UPS - P90L series, 120V 50/60Hz, 328W charger

 1700/1530 120V pure sine rack ?
cart data not found

P90L-3000

UPS - P90L series, 120V 50/60Hz, 493W charger

 2500/2250 120V pure sine rack ?
cart data not found

P90L-6K

UPS - P90L series, 208V or 230V 50/60Hz, 1100W charger

 6000/5400 208V or 230V pure sine rack ?
cart data not found

P90L-10K

UPS - P90L series, 208V or 230V 50/60Hz, 1100W charger

 10000/9000 208V or 230V pure sine rack ?
cart data not found





UPS Accessories

Item
Number

Description

 Works With Price
$ US		 Add to Shopping Cart
P90-BP36

Battery Pack - 36Vdc 2U

 P90L series 1500 UPS systems ?
cart data not found

P90-BP48

Battery Pack - 48Vdc 2U

 P90L series 2000 UPS systems ?
cart data not found

P90-BP72

Battery Pack - 72Vdc 2U

 P90L series 3000 UPS systems ?
cart data not found

P90L-BP240

Battery Pack - 240Vdc 3U

 P90L series 6K and 10K UPS systems ?
cart data not found

P90L-ISO6

Isolation Transformer - required to derive neutral for 120/240V split phase output, 3U

 P90L series 6K UPS systems ?
cart data not found

P90L-ISO10

Isolation Transformer - required to derive neutral for 120/240V split phase output, 3U

 P90L series 10K UPS systems ?
cart data not found

P90L-RAIL

Rail Kit

 P90L 6K, 10K, BP240, ISO6, ISO10 ?
cart data not found

SNMP-1PMINI

Internal SNMP/Web card - 1 port

 P90L series UPS systems ?
cart data not found

SNMP-3PEX

External SNMP/Web card - 3 port

 P90L series UPS systems ?
cart data not found

SNMP-EMP

Environmental Monitoring Sensor - requires SNMP-3PEX

 P90L series UPS systems ?
cart data not found

P90-AS400 AS400 Interface Card P90L series UPS systems ?
cart data not found

XBDM-1015LV Bypass Distribution Module - 15A 120V, NEMA 5-15P line cord, (10)NEMA 5-15R output receptacles XPRT+XVRT+P90+P90L series 1500 UPS systems $289

XBDM-1020LV Bypass Distribution Module - 20A 120V, NEMA 5-20P line cord, (10)NEMA 5-20R output receptacles XPRT+XVRT+P90+P90L series 2000 UPS systems $322

XBDM-1030LV Bypass Distribution Module - 30A 120V, NEMA L5-30P line cord, (10)NEMA 5-20R output receptacles XPRT+XVRT+P90+P90L series 3000 UPS systems $493



Sample Battery Runtimes - see specs for more
(minutes estimated at 50% load / 100% load)

P90L Model Full Load Rating with External Battery Packs
VA/W qty 1 BP qty 2 BP qty 3 BP qty 4 BP qty 6 BP qty 8 BP
1500 1250/1125 29/12 68/29 113/48 162/68 267/113 382/162
2000 1700/1530 29/12 69/29 114/48 162/69 269/114 384/162
3000 2500/2250 30/13 70/30 117/49 166/69 275/117 393/166
6K 6000/5400 19/9 47/20 79/34 115/50 193/84 280/121
10K 10000/9000 10/5 24/11 41/18 59/26 100/43 145/63
