Xtreme T91
Online UPS Systems
Click thumbnail image above to enlarge

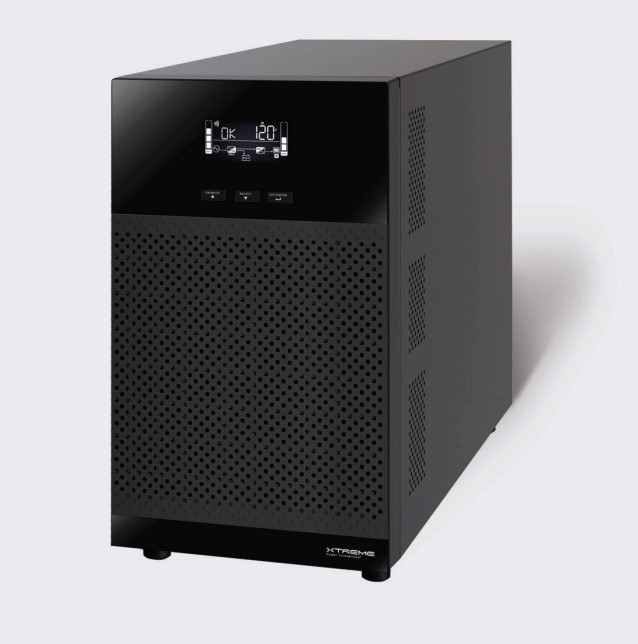

T91 Series UPS System
700-3000VA/700-2880W, 120Vac
tower mounting model
T91 1-3kVA Online UPS
Unity power factor tower UPS provides high density online power protection for unstable power conditions
T91 UPS provides double conversion online power for light industrial applications, point of sale, servers, voice & data networks, and laboratories. T91 features unity output power factor to support up to 43% more critical loads than typical UPSs.
Extended battery runtimes are available from the T91 by adding up to seven matching battery packs.
T91 battery charger can be programmed to provide up to 8 amps of recharge current to insure batteries are recharged quickly and prepared for the next utility outage.
Compare with the Toshiba 1000 series and T1000 series UPS systems. This Xtreme T91 series UPS has the same or better specs including better power factor, higher Watts capability for the same VA rating, longer battery run times, and more, all at better price point.
Features
- Unity output power factor—T91 provides industry highest real power rating
- Extended battery packs—optional matching battery cabinets available for runtimes up to 4 hours.
- Charging current—2A to 8A, adjustable from LCD display
- Fast Recharge—up to 95% in just 3 hours
- Generator compatibility—wide input voltage and frequency windows allow reliable generator compatibility
- Multiple communications capability—RS-232, USB, and optional Web/SNMP, Relay/dry contact and Modbus cards
- Load shedding capabilities—maximize up time for critical loads and equipment by shedding less critical loads
- Emergency power off—allows for compliance with the highest of application safety standards
- $50,000 load protection policy—protection against damaged connected equipment
- UL, cUL, CE, RoHS, FCC A, FCC B, TAA compliant
- 3 years electronics, 3 years battery warranty (USA and Canada)
UPS Systems
Prices last updated 8/1/2024
Shipping weights start at 35 lbs.
These items normally ship in approximately 2 weeks or less.
Item |
Description |
VA/Watts |
AC Voltage |
Mounting | Price $ US |
Add to Shopping Cart |
T91-700 |
UPS - T91 series, 5 min internal battery backup at FL 50/60Hz |
700/700 | 120V pure sine | tower | $611 |
|
T91-1000 |
UPS - T91 series, 6 min internal battery backup at FL 50/60Hz |
1000/1000 | 120V pure sine | tower | $743 |
|
T91-1500 |
UPS - T91 series, 3 min internal battery backup at FL 50/60Hz |
1500/1450 | 120V pure sine | tower | $895 | |
T91-2000 |
UPS - T91 series, 6 min internal battery backup at FL 50/60Hz |
2000/1930 | 120V pure sine | tower | $1,163 | |
T91-3000 |
UPS - T91 series, 3 min internal battery backup at FL 50/60Hz |
3000/2880 | 120V pure sine | tower | $1,469 |
UPS Accessories
Item |
Description |
Works With | Price $ US |
Add to Shopping Cart |
T91-BP36 |
Battery Pack - 36Vdc 2U |
T91 series 1000 & 1500 UPS systems | $588 |
|
T91-BP72 |
Battery Pack - 72Vdc 2U |
T91 series 2000 & 3000 UPS systems | $970 |
|
SNMP-2PV3 | Two Port Internal SNMP Card | T91 series UPS systems | $297 |
|
SNMP-EMPV2 | Environmental Monitoring Sensor | T91 series UPS systems (requires 2PV3 above) |
$187 |
|
Battery Runtimes
(minutes estimated at 50% load / 100%
load)
Runtimes will vary based on battery condition, age, cycles, and ambient temperature.
VA Rating | Standard Internal Battery Only | with External Battery Packs | |||||
--- | BP Model | qty 1 BP | qty 2 BP | qty 3 BP | qty 4 BP | qty 5 BP | |
700 | 16/5 | n/a | n/a | n/a | n/a | n/a | n/a |
1000 | 17/6 | BP36 | 74/29 | 129/57 | 192/89 | 259/117 | 330/143 |
1500 | 10/3 | BP36 | 44/18 | 88/35 | 125/54 | 165/77 | 211/97 |
2000 | 18/6 | BP72 | 77/30 | 133/59 | 200/93 | 270/121 | 350/149 |
3000 | 10/3 | BP72 | 45/18 | 89/35 | 126/54 | 167/78 | 212/97 |
