QG2500
2.5HGJBB/1121

THIS MODEL IS UNAVAILABLE UNTIL 2022

Click thumbnail images to enlarge

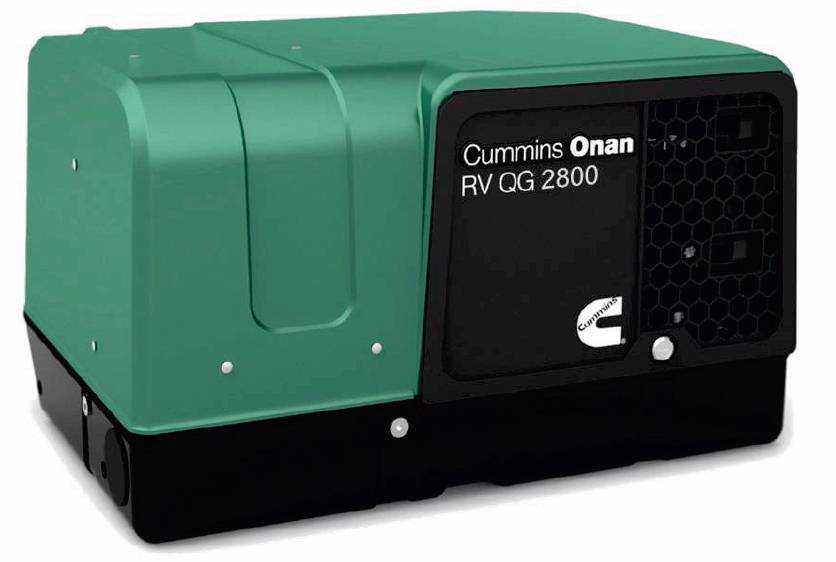

RV Generator Set
propane fueled
2500W rated

Cummins GenSets have powered RVs since they first hit the road.   A variety of worry-free gasoline, LP and diesel gensets are available, designed specifically for RV use.  Extensive testing, both in the lab and on the road, ensures long-lasting performance backed by one of the industry's best warranties.  Plus, you'll find certified parts and service are never far away.

When you purchase this brand GenSet, you'll be among more than 1.2 million RV owners who depend on the same brand for quiet power.  In fact, these exceptionally quiet RV gensets can be found aboard eight out of ten RVs with generators.  Discover for yourself the quality, selection and service that have made this brand RV generators the first choice for convenient, reliable gensets.

Features

Compare these features with those offered on competitor's models.   It is the most popular brand of RV generator.

* Models for both propane (LP) or gasoline.

* Electronic ignition.

* Remote 12VDC starting.

* Microprocessor control with diagnostics.

* Easy maintenance with single-side service.

* Completely enclosed with muffler, quick and easy to install.

* Tested at wide temperature extremes for starting and operation.

* Tested with RV loads, air conditioners, microwave ovens, converters, TVs, VCRs.

* Testing is performed with generators installed in RVs.  The factory owns RVs used
   for product development testing.

* Tested in high humidity conditions, salt spray conditions, heavy air-borne dust conditions.

* Long standard warranty period.  Extended warranty plans available on many gensets.
   Both parts warranty programs are transferable to a new owner if the RV is sold during
   the warranty period.

Abbreviated Specifications

Sound Level at 10 ft. 70dbA at half load
AC Output Voltage 120VAC, 1 phase
better than 10% from no load to full load
AC Output Frequency 60Hz
better than 5% no load to full load
AC Output Power at 77F(25C) and 0-500 ft elevation 2.5kW
Warranty** 3 year limited factory warranty
Dimensions L x W x H 22" x 16.3" x 12.8" enclosed,
muffler mounts internal
**This limited warranty covers virtually everything except routine maintenance for the first two years you own your RV generator set, and covers parts and labor on major power train and generator set parts during the third year. In addition, it also includes a free 90-day adjustment policy, which provides that Cummins Inc. will make minor adjustments during the first three months you own it-free of charge! Please note: This 3-year limited warranty applies to RV generator sets used in RV applications only, and does not apply to RV generator sets used in commercial mobile applications.  For commercial applications request a quote for an equivalent Commercial Mobile generator.  The warranty for RV generators used in commercial applications will be 1-year only.
