30216A

REPLACED WITH PRO/TRAN 2 SERIES MODEL 306A

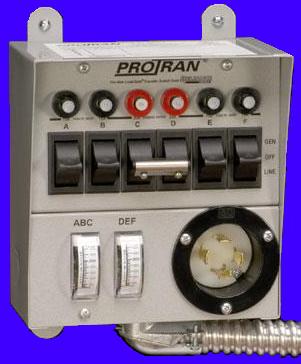

click on thumbnail image above to enlarge
(20216A shown, only visual difference is inlet ground blade)

Manual Transfer Switch
Pro/Tran by Reliance Controls

Easy to install and operate, connects portable generator to residential load center.  Allows manual transfer of individual loads to prevent overloading generator.   Each individual circuit can be transferred separately and only as needed.   Now required by Article 702.6 of the 2002 National Electric Code to prevent inadvertent backfeeding of electric power from generator into utility system which can be a safety hazard.

Click here to watch a video explaining how to install and operate this 6 circuit transfer switch and optional inlet box.





Specifications

Total Capacity 7500 watts, 30 amps
Single Pole Circuits - 120VAC (4) 15 amp
Double Pole Circuits - 240VAC (1) 20 amp with handle tie
Generator Connection NEMA L1430P male inlet plug-in
Generator Load Watt Meters Yes
Enclosure Type indoor surface mounted
Convenience Receptacle No
UL Listing UL1008
UL Short Circuit Withstand Rating 5,000 amps



Each circuit provided with non-defeatable (break-before-make) double throw switch protected with a resetable circuit breaker.  Dual watt meters provided for balancing generator load.  The 3/4 x 18 inch flexible conduit is pre-wired for easy connection to existing residential load center panel.  Installs in less than an hour, without pulling the electric meter or installing a sub-panel.  Suitable only for circuits protected with up to 20 amp breakers or fuses.  UL listed and CSA certified.  Exclusive Pro/Tran Reliance Controls 24 month warrantyMade in USA



Customers who purchased this product also ordered:
(click underlined words to see product pages
Cordset for connecting generator PC3010, PC3025 or PC3050
Straight blade plug modification for generators without twist-lock receptacle MOD6-20P
Clear protective cover for switch CK06
To power a 30A 240V water heater add the
CSR302 switch or go with the Q310AE switch
