30GGMC
29GGMC
DISCONTINUED AND REPLACED

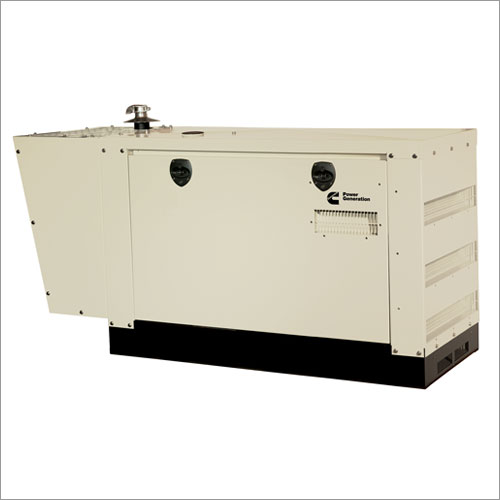

WITH RS30
|
|
|
|
| enclosure | Cummins Power Videos | generator specs | controller specs |
|
Click thumbnail image above to enlarge |
|||

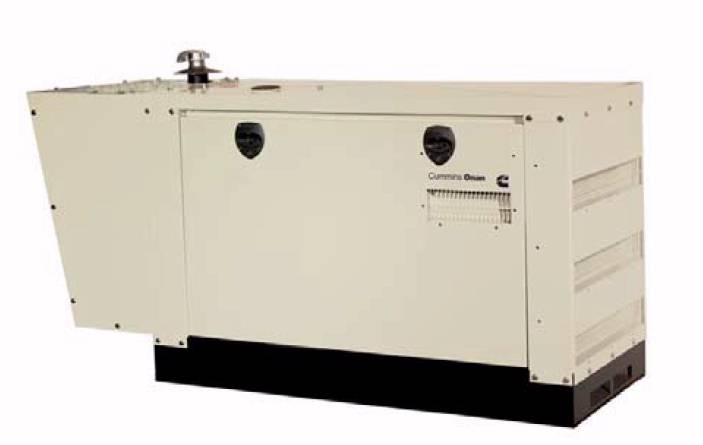

Standby Generator Set
Cummins® Power Generation
30kW on propane or 29kW nat. gas
Cummins brand power generation systems are the result of integrated design and manufacturing intended to satisfy your requirements for rated performance and reliable and efficient operation. For either standby or prime power, Cummins produces a full line of diesel and spark-ignited generator sets, transfer switches, paralleling switchgear, smart controls, sound attenuated housings, and installation accessories. All products are designed and manufactured to work as a total, integrated system. These power systems are backed by a worldwide network of distributors and service branches plus a comprehensive warranty program. All systems are subjected to prototype testing simulating rigorous real-world environments and meet Cummins Total Quality System requirements. Cummins' manufacturing processes are ISO 9001 registered.
Extreme weather, construction activities, and countless other unforeseen power complications can suddenly interrupt the electrical service you depend on to continue your operations and activities. You can have complete peace of mind, knowing that during a power outage your Cummins Standby System will activate to provide the power necessary to run vital systems.
Fully automatic, the system detects an interruption of electrical service and engages to power your essential systems. When utility power is restored, the standby system shuts down, automatically resetting itself. The entire power transfer cycle is fully automatic -- it is not necessary to be present for this system to work!
Cummins Spark-Ignited Generator Sets
Cummins spark-ignited generator sets, 6.0 to 150 kW (and larger), are designed for applications that call for vapor fuel options as a result of fuel containment, economic and emissions considerations, or compliance with local codes. These generator sets have fuel systems for both natural gas and propane, making them a convenient choice for a variety of health care facilities and retail business. Installation and hookup to the fuel source lines is both basic and convenient. As with Cummins diesel generator sets, a complete selection of voltages, accessories, and control options are available for customizing to your specific needs. If your requirements differ from those described here, click to request a custom quote. Click here for more about the Cummins brand and why it is worth spending a little more.
Features and Benefits
Extremely quiet operation
Aluminum sound attenuated enclosure for best anti-corrosion performance
Fully automatic operation when used with a Cummins automatic transfer panel
Available for use with natural gas or LP vapor
Attractive and discreet housing
Electronic governor for precise frequency control
Includes 120 V coolant heater
Listed to UL 2200
EPA certified for dual fuel
IBC and OSHPD seismic certified.
Specs

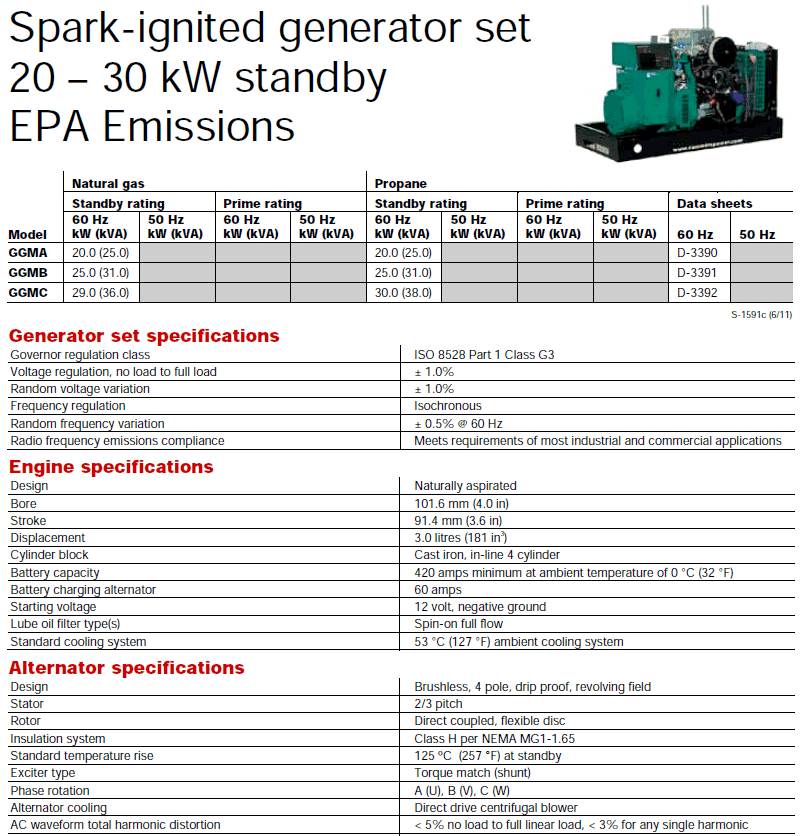

For complete specifications click
thumbnail image at top of this page
| Power Rating (vapor propane/natural gas) | 30 kW / 29 kW |
| Output Voltage & Current (vapor propane/natural gas) |
120/240V 1-phase 125A / 121A 120/208V 3-phase 82.2A / 80.5A |
| Sound Level | 67 dbA at 23 ft and full load |
| Engine Type | GM industrial 3.0 liter, 4 cylinder |
| Engine and alternator speed | 1800 rpm |
| Cooling System | liquid cooled, 50C (122F) ambient rated |
| Control System | PowerCommand® 1301, NFPA 110 Level 1 |
| Governor | electronic for tight speed/frequency regulation |
| Alternator | brushless 12-lead, 125C temperature rise, NEMA Class H insulation |
| Enclosure | aluminum, sandstone color
powder coated, coastal design, 150 mph wind rated |
| Warranty | standard 2 year/2000 hour optional 5 year/2000 hour |
Fuel Requirements (click for fuel conversion factors)
Minimum Operating Pressure = 7.0 inches water column.
Maximum Operating Pressure = 14.0 inches water column. .
For fuel consumption rates see genset data sheet.
Order automatic transfer switch separately
single phase: RSS200, OTEC225, ZTX20MX60, MGVATS2001240, RLC1-200 or select from list
three phase: select from list
Part Numbers that can be ordered using the drop-down menus above on this page:
A040E4485 A046G479 0149-0558 0541-0833 0307-0834 0179-4861-05
