40326
(supersedes 40302, 40241, 40229)

DISCONTINUED - SEE ATERNATIVES AT THIS LINK

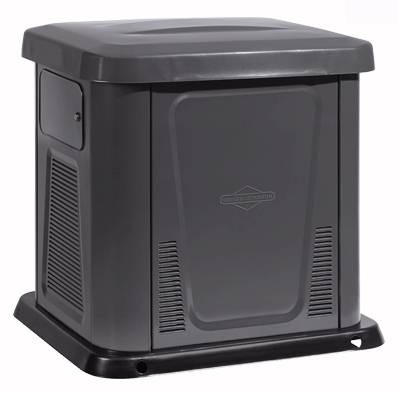

Click thumbnail image above to enlarge

Standby Generator Set
Briggs & Stratton^® Home Standby
12kW on propane, 11kW on natural gas
(see below for transfer switches)



Turn on the performance with our Briggs & Stratton 12kW home generator system. Its streamlined design meets the power needs of your whole house, with a more compact, affordable unit. The 12kW is ideal for medium-sized houses.

Symphony II^® System now available for managing your large electrical loads and this usually means you can install a smaller lower- cost generator.  The system is available as an option in the most of the Briggs automatic transfer switches.  The user selects up to four large loads to be controlled and sets the run priority for each.  Then this system monitors the available generator capacity to determine if and when these loads can run.  They are turned on and off automatically through remote switching modules which must be ordered separately (see below).  The system communicates with the modules using a signal on the power system neutral.

OVERVIEW

More Access to Air Conditioners
Briggs & Stratton automatic transfer switches can manage the load of up to two 4-ton air conditioners while powering other household appliances.

Streamlined Space Saving Design
Its sleek, compact profile blends in beautifully with your home's exterior and landscaping, much like your central air conditioner.

Durable Outdoor Enclosure
Galvaneal steel provides years of rust proof, outdoor protection--perfect for extreme weather conditions.

Limited 3 Year Parts and Labor Warranty
Your Briggs & Stratton guarantee of quality and performance – one of the best in the industry.

Briggs & Stratton Engine
Application-engineered to stringent specifications, these premium Briggs & Stratton engines will provide years of long-lasting, reliable standby power.

Turnkey Extras
Systems include a battery charger, hour meter, and installation base.

CARB Compliant
This standby generator is available for sale in California.

Specifications

Engine Brand	Briggs & Stratton Professional Series™
CC	803
Operation	Fully Automatic
Voltage (V)	120/240V AC, Single Phase
Alternator Type	Brushless, Computer Friendly
Fuel Consumption (Cubic Feet per Hour @ 1/2 Load)	1.42gal/hr (LP Vapor) 119ft3/hr (NG)
Fuel Consumption (Cubic Feet per Hour @ Full Load)	2.36gal/hr (LP Vapor) 119ft3/hr (NG)
Weekly Exerciser	Yes
Battery/Battery Charger	Yes
Overcrank Protection	Yes
Hour Meter	Yes
Diagnostic Alerts with Remote System Status	Low Oil Shutdown Engine Does Not Start Low Frequency Engine Overspeed Low Voltage Low Battery Voltage Oil Temp High Transfer Switch Fault
Length x Width x Height (inches)	34.6 x 39.4 x 38.5
Weight (lbs)	535
Warranty (Product)	3 Year Limited Parts and Labor
Recommended Transfer Switch	100 Amp, 16 Circuit Automatic Transfer Switch

*NG = Natural Gas; LP = Liquid Propane. **Fuel consumption rates are estimated based on normal operating conditions at 1/2 load. Generator operation may be greatly affected by elevation and the cycling operation of multiple electrical appliances - fuel flow rates may vary depending on these factors.



Automatic Transfer Switch Specifications
Grayed out switches are NOT for use with this generator
All are rated 120/240V, 2 poles, 60Hz, NEMA 3R outdoor enclosure, UL 1008 Listed
Power management now provided by the Symphony II^® system
which supersedes the previous ACCM Power Control Module™

Switch Model #	1918	71047	71055	71038	71045	71069	71046	71058	71076	71058
Switch Model # with Symphony II®					71071	71070	71068	71057
Used with Generator kW	8	10-20	10-20	10-20	10-20	10-20	10-20	20	35-60	35-60
Amps	50A	100A	100A	200A	100A	150A	200A	2x200	200	2x200
Circuits	10	16	whole house	whole house	whole house	whole house	whole house	whole house	whole house	whole house
Power Management	--	yes	yes	yes	yes	yes	yes	yes	yes	yes
Service Entrance Disconnect	--	--	--	--	yes	yes	yes	yes	yes	yes
Dimensions (LxWxH)	15x5x21	6x14x24	6x12x15	7x16x22	6x14x24	33x11x19	7x16x30	7x24x37	7x16x30	7x24x37
Weight (lbs)	30	39	23	37	39	58	58	105	58	105
Limited Warranty (years)	3	3	3	3	3	3	3	3	3	3





---
