40348CA

DISCONTINUED - SEE ATERNATIVES AT THIS LINK


Click thumbnail image above to enlarge

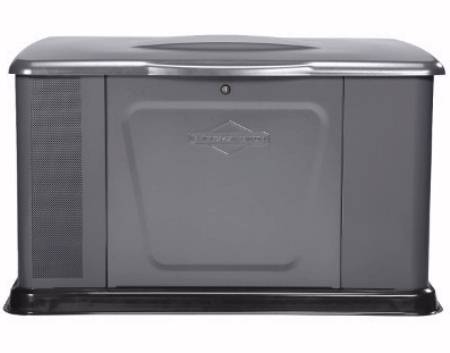

Standby Generator Set (CARB only)
Briggs & Stratton^® Home Standby
15kW on propane, 13.5kW on natural gas
(see below for transfer switch)



Protect your home and family from power outages with Briggs & Stratton 15-20kw home generator systems. Perfect for medium-to-large homes, we provide you with reliable power and flexible options to meet your home's power needs. Model is for sale in California only.

Briggs & Stratton has been providing reliable engine power for more than 100 years. Trust the proven power experts at Briggs & Stratton for complete peace of mind.

Symphony II^® System now available for managing your large electrical loads and this usually means you can install a smaller lower- cost generator.  The system is available as an option in the most of the Briggs automatic transfer switches.  The user selects up to four large loads to be controlled and sets the run priority for each.  Then this system monitors the available generator capacity to determine if and when these loads can run.  They are turned on and off automatically through remote switching modules which must be ordered separately (see below).  The system communicates with the modules using a signal on the power system neutral.

OVERVIEW

Flexible Placement
Tested against tough National Fire Protection Agency standards, Briggs & Stratton 15kW¹ standby generators can be placed as close as 18” from the home providing more placement options in your yard - perfect for tight lot lines.

Reliable Engine Power
Our standby generators are powered by commercial-grade Vanguard™ engines that are design-engineered to dependably take on the most demanding jobs.

Power Solution Options
Choose between an Essential Power-Plus! system that powers a select number of circuits plus 2 air conditioners or a Managed Whole House Power system that powers all of your household appliances plus up to 2 air conditioners with our Load Control Center.

Durable Enclosure
Rust-resistant, Galvanneal steel enclosures are made from the same materials and paint process used in the automotive industry, resulting in years of protection against chips and abrasions.

Quick Response
Automatically powers your home in seconds after sensing a power outage.

4 Year Limited Parts and Labor Warranty2
At Briggs & Stratton, we stand behind our warranty and make it easy for our customers to work with us.

Specifications

Engine Brand	Briggs & Stratton Vanguard V-Twin Series™
CC	993
Operation	Fully Automatic
Voltage (V)	120/240V AC, Single Phase
Alternator Type	Brushed, Computer Friendly
Fuel Consumption (Cubic Feet per Hour @ 1/2 Load)	1.89 gal/hr (LP Vapor) or 109 ft3/hr (NG)
Fuel Consumption (Cubic Feet per Hour @ Full Load)	3.03 gal/hr (LP Vapor) or 240 ft3/hr (NG)
Weekly Exerciser	Yes
Battery/Battery Charger	Yes
Overcrank Protection	Yes
Hour Meter	Yes
Diagnostic Alerts with Remote System Status	Low Oil Shutdown Engine Does Not Start Low Frequency Engine Overspeed Low Voltage Low Battery Voltage Oil Temp High Transfer Switch Fault
Length x Width x Height (inches)	48 x 29 x 31
Weight (lbs)	484
Warranty (Product)	4 Year Limited Parts and Labor
Recommended Transfer Switch	100 Amp, 16 Circuit Automatic Transfer Switch

*NG = Natural Gas; LP = Liquid Propane. **Fuel consumption rates are estimated based on normal operating conditions at 1/2 load. Generator operation may be greatly affected by elevation and the cycling operation of multiple electrical appliances - fuel flow rates may vary depending on these factors.



Automatic Transfer Switch Specifications
Grayed out switches are NOT for use with this generator
All are rated 120/240V, 2 poles, 60Hz, NEMA 3R outdoor enclosure, UL 1008 Listed
Power management now provided by the Symphony II^® system
which supersedes the previous ACCM Power Control Module™

Switch Model #	1918	71047	71055	71038	71045	71069	71046	71058	71076	71058
Switch Model # with Symphony II®					71071	71070	71068	71057
Used with Generator kW	8	10-20	10-20	10-20	10-20	10-20	10-20	20	35-60	35-60
Amps	50A	100A	100A	200A	100A	150A	200A	2x200	200	2x200
Circuits	10	16	whole house	whole house	whole house	whole house	whole house	whole house	whole house	whole house
Power Management	--	yes	yes	yes	yes	yes	yes	yes	yes	yes
Service Entrance Disconnect	--	--	--	--	yes	yes	yes	yes	yes	yes
Dimensions (LxWxH)	15x5x21	6x14x24	6x12x15	7x16x22	6x14x24	33x11x19	7x16x30	7x24x37	7x16x30	7x24x37
Weight (lbs)	30	39	23	37	39	58	58	105	58	105
Limited Warranty (years)	3	3	3	3	3	3	3	3	3	3





---
