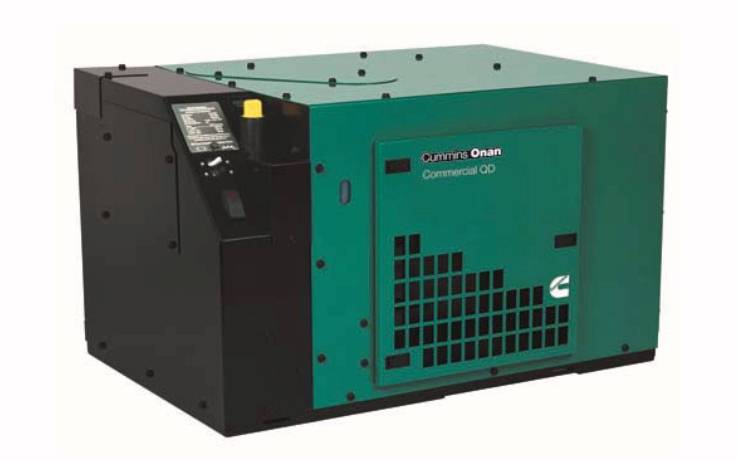

Generator Set
Commercial Mobile Quiet Diesel
5000W rated
Cummins GenSets have powered RVs since they first hit the road. A variety of worry-free gasoline, LP and diesel gensets are available, designed specifically for RV use. Extensive testing, both in the lab and on the road, ensures long-lasting performance backed by one of the industry's best warranties. Plus, you'll find certified parts and service are never far away.
When you purchase this brand of GenSet, you'll be among more than 1.2 million RV owners who depend on them for quiet power. In fact, these exceptionally quiet RV gensets can be found aboard eight out of ten RVs with generators. Discover for yourself the quality, selection and service that have made these RV generators the first choice for convenient, reliable gensets.
Features
Compare these features with those offered on competitor's models. It is the most popular brand of RV generator.
Diesel fueled, 60Hz, single phase, 120 volt model available. Where noise and vibration are the primary concern, the Quiet Diesel is a breakthrough in state-of-the-art generator sets. Dramatically lower noise is achieved through variable speed operation, and a sound attenuated enclosure with integrated muffler. Side or bottom service and maintenance access; standard hourmeter, pure sine wave AC output, single switch start with microprocessor timed pre-heat sequence, and water resistant control switches are standard equipment for all commercial applications.
Abbreviated Specifications
Sound Level at 10 ft. | 68 dbA at half load |
AC Output Voltages | 120VAC, 1 phase 120/240VAC, 1 phase 120/240VAC, 3 phase |
AC Output Voltage Regulation | ±1% from no load to full load |
AC Output Frequency | 60Hz ±5% no load to full load |
AC Output Power at 85F(29C) and 0-500 ft elevation | 5.0kW |
Warranty** | 2 year/2,000 hour limited factory warranty |
Dimensions L x W x H | 34.5" x 22.9" x 20.3" enclosed, muffler mounts internal |
**The Cummins limited warranty covers virtually everything except routine maintenance for the first two years that you own your generator set, or the first 2,000 hours of operation, whichever comes first. In addition, it includes a free 90-day adjustment policy, which provides that Cummins Inc. will make minor adjustments to your new generator set during the first three months you own it - free of charge! |
Customers who purchased this product also ordered:
(click underlined numbers to see product pages or add to shopping cart)
Auxiliary Fuel Pump Kit 541-0530 Exhaust Kit Elbow 90 deg A026E098 Exhaust Adapter - 7 inch 155-2424 Remote Control Panel - switch & hour meter 300-4943 Remote Control Panel - switch & dc Voltmeter 300-4944 |
Remote Control Harness 338-3490-02 Energy Command EC-30, EC-20, EC-30W Energy Command 25' Harness 044-00076 Energy Command Y Harness 044-00080 RV Solar Kits PFM-1K, PFM-2K non-linked and other parts lookup page here |
If you need to order any other options or accessories with this generator which are described in the detailed spec sheets go to our Cummins Parts Lookup page here. Or just state the part number in comments at the bottom of the order checkout screen. We will add item(s) to your order and show them in the acknowledgment sent by email.
Click above to check phone pricing
QD5000 120V 1ph
5.0HDKBC/2860QD5000 120/240V 1ph
5.0HDKBC/2861QD5000 120/240V 3ph
5.0HDKBC/2905
Item Number: 5.0HDKBC/2860
Price: $11,006
Price last updated 6/19/2023
Shipping Weight: 450 lbs.
This item ships with free ground freight to the USA 48 states.
If not paying by credit card contact NoOutage before placing order.
Item Number: 5.0HDKBC/2861
Price: $11,245
Price last updated 6/19/2023
Shipping Weight: 450 lbs.
This item ships with free ground freight to the USA 48 states.
If not paying by credit card contact NoOutage before placing order.
Item Number: 5.0HDKBC/2905
Price: $8,497
Price last updated 1/1/2021
Shipping Weight: 450 lbs.
This item ships with free ground freight to the USA 48 states.
If not paying by credit card contact NoOutage before placing order.
