Page last updated Oct 20, 2021 @ 10:04pm

7.5HDKAL-1
7.5HDKAL-2
7.5HDKAL-3

Click thumbnail images to enlarge

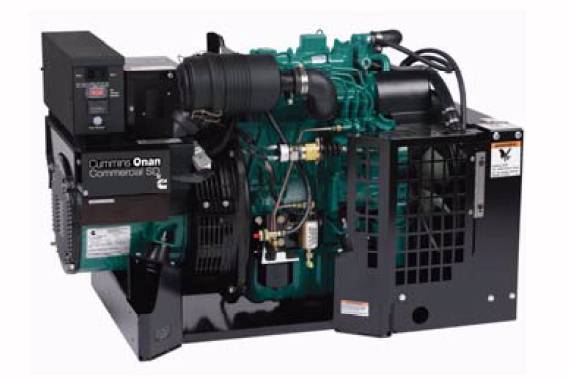

Generator Set
Commercial Mobile Standard Diesel
7500W full load, single & 3 phase models

Cummins GenSets have powered RVs since they first hit the road.   A variety of worry-free gasoline, LP and diesel gensets are available, designed specifically for RV use.  Extensive testing, both in the lab and on the road, ensures long-lasting performance backed by one of the industry's best warranties.  Plus, you'll find certified parts and service are never far away.

When you purchase this brand of GenSet, you'll be among more than 1.2 million RV owners who depend on them for quiet power.  In fact, these exceptionally quiet RV gensets can be found aboard eight out of ten RVs with generators.  Discover for yourself the quality, selection and service that have made these RV generators the first choice for convenient, reliable gensets.

Features

Compare these features with those offered on competitor's models.   It is the most popular brand of RV generator.

Diesel fueled, 60Hz and 50Hz, single phase and three phase models available.  Three phase models are 12-lead reconnectable for a broad range of voltage applications.



Abbreviated Specifications

Sound Level (before installation) 76 dbA at 10', 63 dbA at 50' and full load
AC Output Voltage 2.5% no load to full load, 1.0% at constant load
AC Output Frequency 2.5% no load to full load, 1.0% at constant load
AC Output Power at 85F(29C) and 0-500 ft elevation 7500W intermittant, 6750W continuous
Warranty** 2 year/2,000 hour limited factory warranty
Dimensions L x W x H 37.3" x 21.0" x 23.9"
**The Cummins limited warranty covers virtually everything except routine maintenance for the first two years that you own your generator set, or the first 2,000 hours of operation, whichever comes first. In addition, it includes a free 90-day adjustment policy, which provides that Cummins Inc. will make minor adjustments to your new generator set during the first three months you own it - free of charge!



Customers who purchased this product also ordered:
(click underlined numbers to see product pages or add to shopping cart)

Spark arrestor 155-2068
Exhaust Resonator 155-2653
Exhaust Adapter - 154-2852
Remote Control Panel - switch & hour meter 300-4940
Remote gauge Panel - switch, dc Voltmeter, water temp,
    oil press, hour meter 300-5026
Remote Control Panel - switch & dc Voltmeter 300-4941
Oil pressure sender 193-0244-99
Water temp sender 193-0318
Remote Control Harness 338-3526
RV Solar Kits PFM-1K, PFM-2K
non-linked and other parts lookup page here

If you need to order any other options or accessories with this generator which are described in the detailed spec sheets go to our Cummins Parts Lookup page here.  Or just state the part number in comments at the bottom of the order checkout screen.   We will add item(s) to your order and show them in the acknowledgment sent by email.

NOTE: If our shopping cart fails to calculate the freight cost then select another "Shipping Method" at the top of the address screen such as "Prepay ship costs and add to bill" or "Quote freight cost before processing."

Cummins Onan generator discount coupon
Click above to check phone pricing

Pusher Fan
120/240V single phase
7.5HDKAL-1
Suction Fan
120/240V single phase
7.5HDKAL-2
Pusher Fan
3 phase
7.5HDKAL-3

Item Number: 7.5HDKAL-1
Price: $9,898
Price last updated 9/23/2021
Shipping Weight: 540 lbs.
This item normally ships in approximately 25-30 weeks or less.
If not paying by credit card contact NoOutage before placing order.

Item Number: 7.5HDKAL-2
Price: $9,898
Price last updated 9/23/2021
Shipping Weight: 540 lbs.
This item normally ships in approximately 25-30 weeks or less.
If not paying by credit card contact NoOutage before placing order.



Item Number: 7.5HDKAL-3
Price: $10,265
Price last updated 9/23/2021
Shipping Weight: 540 lbs.
This item normally ships in approximately 25-30 weeks or less.
If not paying by credit card contact NoOutage before placing order.
